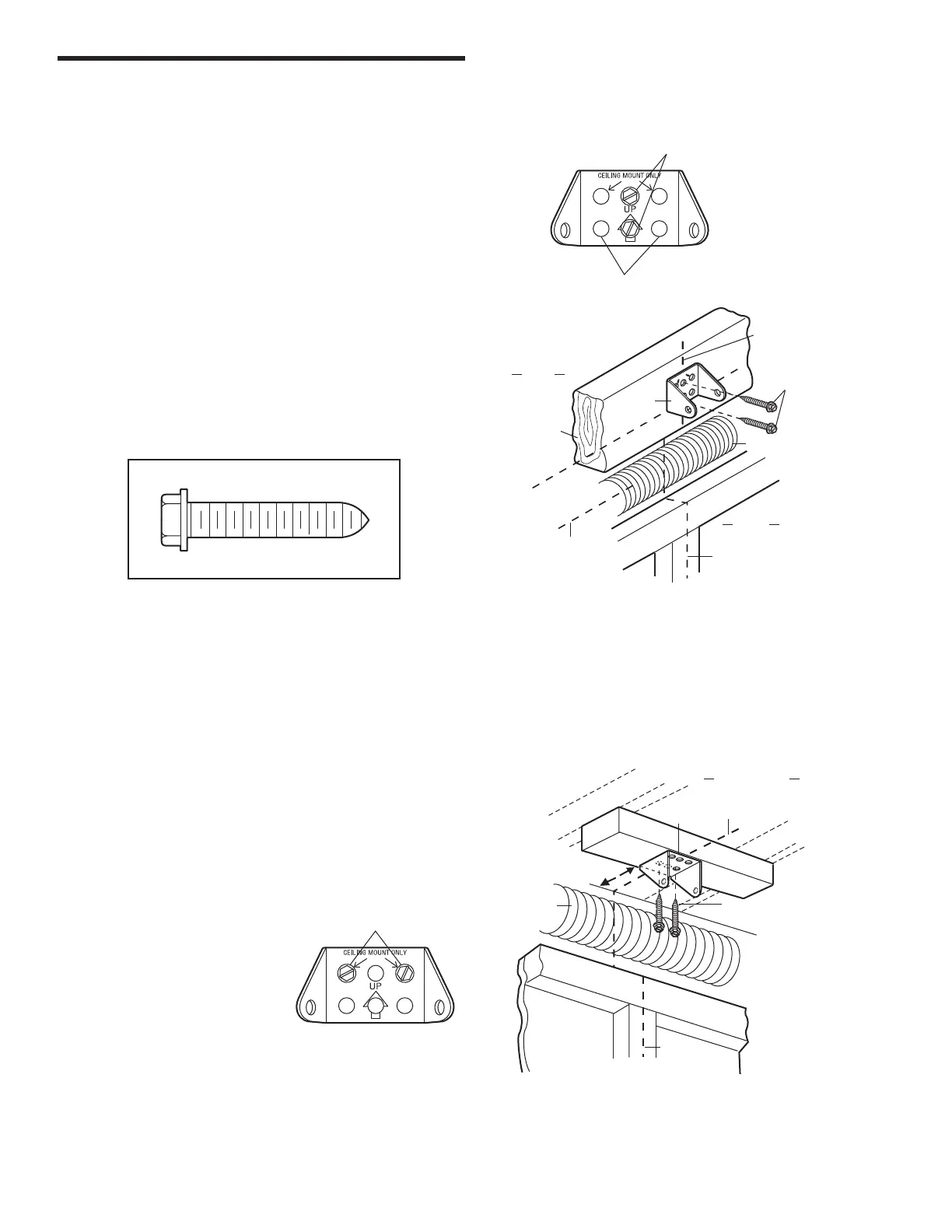

INSTALLATION STEP 2
Install the Header Bracket
You can attach the header bracket either to the wall above the
garage door, or to the ceiling. Follow the instructions which will
work best for your particular requirements. Do not install the
header bracket over drywall. If installing into masonry, use
concrete anchors (not provided).
WALL HEADER BRACKET INSTALLATION
• Center the bracket on the vertical centerline with the bottom
edge of the bracket on the horizontal line as shown (with the
arrow pointing toward the ceiling).
• Mark the vertical set of bracket holes (do not use the holes
designated for ceiling mount). Drill 5 mm pilot holes and fasten
the bracket securely to a structural support with the hardware
provided.
Lag Screw
5/16"-9x1-5/8"
HARDWARE SHOWN ACTUAL SIZE
CEILING HEADER BRACKET INSTALLATION
• Extend the vertical centerline onto the ceiling as shown.
• Center the bracket on the vertical mark, no more than 15 cm
from the wall. Make sure the arrow is pointing toward the wall.
The bracket can be mounted fl ush against the ceiling when
clearance is minimal.
• Mark the side holes. Drill 5 mm pilot holes and fasten bracket
securely to a structural support with the hardware provided.
Wall Mounting Holes
Vertical
Centerline of
Garage Door
Vertical Centerline
of Garage Door
38 mm
Board
Garage
Door
Highest Point of
Garage Door Travel
Lag Screws
5/16"x9x1-5/8"
Door Spring
Header
Wall
Header
Bracket
Optional
Wall Mounting Holes
Finished Ceiling
Vertical Centerline
of Garage Door
Vertical
Centerline of
Garage Door
Garage Door
Header Wall
Door
Spring
Header
Bracket
15 cm Maximum
Ceiling Mounting Holes
Lag Screws
5/16"x9x1-5/8"
