Gate Access (Wired)

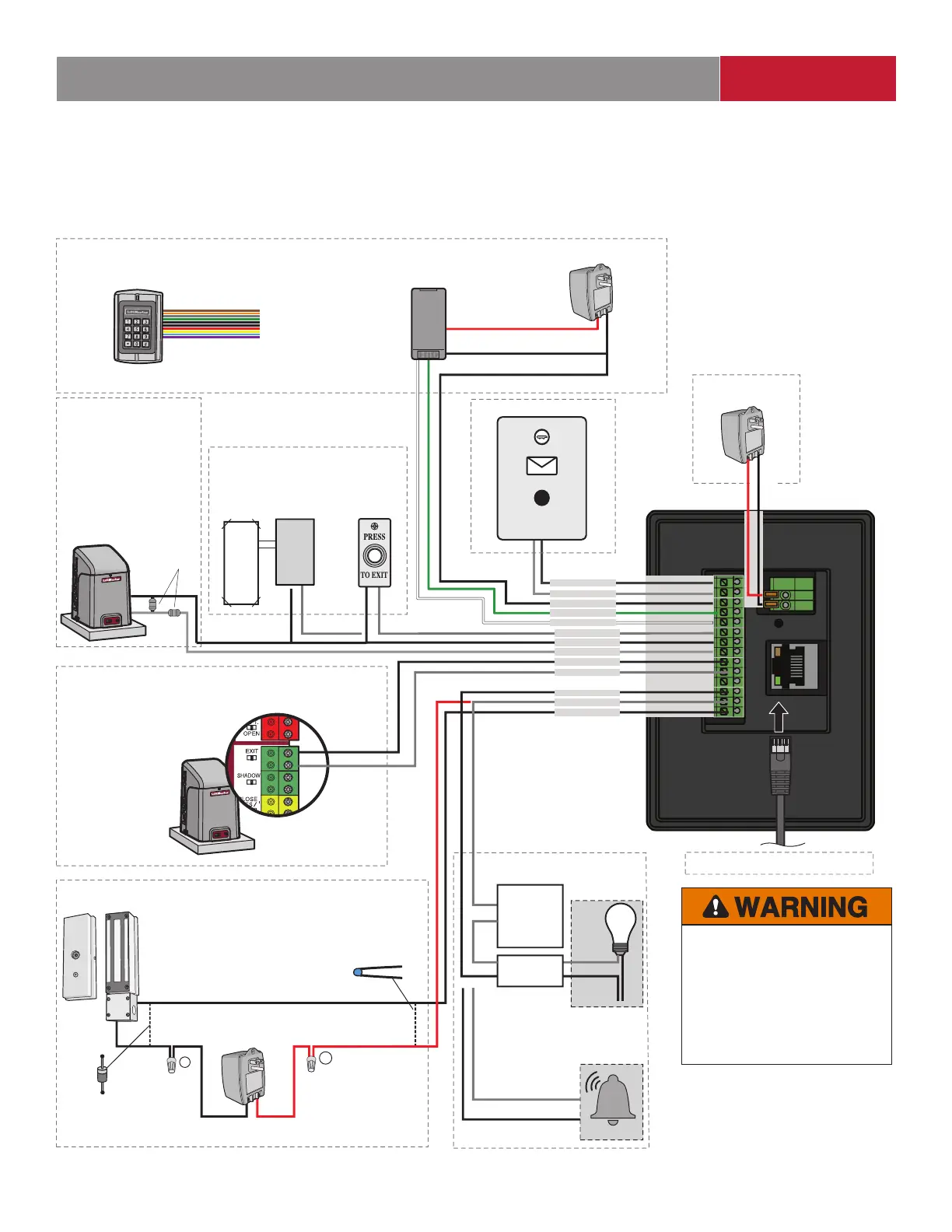

Disconnect power BEFORE making electrical connections. Below is an example of a wiring setup for gate access.
GROUND
POWER
GROUND
DATA 0
DATA 1
POWER
ETHERNET CONNECTION
POSTAL LOCK
POSTAL LOCK**
NOTE: For KPR2000 keypad
wire the pink and black (ground)
wires together.
READER
KEYPAD
WIEGAND
+
–
NORMALLY OPEN
COMMON
NORMALLY OPEN
NORMALLY CLOSED
COMMON
REQUEST TO EXIT
GROUND
NORMALLY OPEN
COMMON
PUSH
BUTTON
MAGLOCK
12 VDC POWER SUPPLY
OR
EXTERNAL FREE EXIT
LOOP DETECTOR
For DC Power:
Install a 1N4005
diode or equivalent
Use 18-22 AWG
Power for Maglock
(Not Provided)
DO NOT use the power
supply for the controller
For AC Power:
Install a Siemens S10K30MOV
(Metal Oxide Varistor) or
equivalent
NORMALLY CLOSED
COMMON
OR
REQUEST TO EXIT
PRIMARY RELAY
*AUXILIARY RELAY
GATE OPERATOR
COMMON
EXIT
ALARM BYPASS
LIGHT
NORMALLY OPEN
COMMON
LOAD
LINE
AUXILIARY RELAY
OR
NEUTRAL
** NOTE: For more information on how
to wire in a postal lock, refer to the
manual for accessory: CAPXSTKPL.
* NOTE: MAGLOCK and ALARM BYPASS
not evaluated by UL.
NOTE: DO NOT
connect high
voltage power to
the CAPXS unit.
Isolation
Relay
Low
Voltage
Power
Supply
GATE OPERATOR
(connect to Aux Closed Limit
switch - refer to gate operator
manual)
SUPERVISED
(GATE STATUS)
(Not applicable for wireless
gate operator connections)
EOL (End of Line)
Resistor
(1k ohm)
SUP
DO NOT INSTALL THE
SYSTEM IN THE FAIL
SECURE MODE UNLESS
PERMITTED BY THE LOCAL
AUTHORITY HAVING
JURISDICTION. Doing so may
cause interference with the
operation of panic hardware.
