Chamberlain CAPXS - Carton Inventory; Tools Needed; Additional Tools Recommended; Preparation for Installation

6
Tools Needed
• PH2 Phillips Screwdriver
• 1/8" Flat or PH0 Phillips Screwdriver
• T20 Torx Driver/Bit
PROVIDED (NOT SHOWN)
• Installation Manual

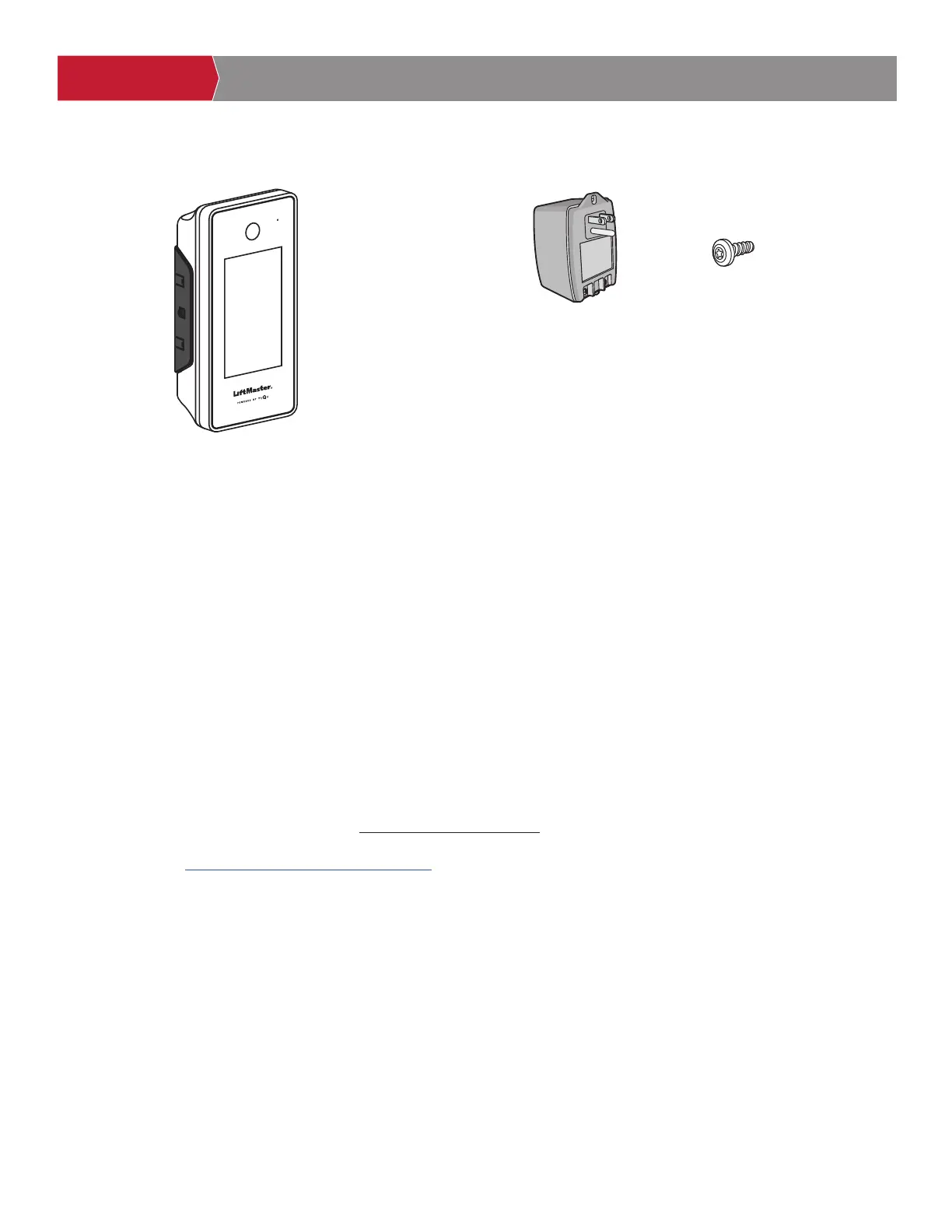

Carton Inventory
ACCOUNT SETUP NETWORK/MOUNTINGPOWER ACCESS CONTROLINTRODUCTION
INTRODUCTION ACCOUNT SETUP NETWORK/MOUNTINGPOWER ACCESS CONTROL
INTRODUCTION ACCOUNT SETUP NETWORK/MOUNTINGPOWER ACCESS CONTROL
INTRODUCTION ACCOUNT SETUP NETWORK/MOUNTINGPOWER ACCESS CONTROL
INTRODUCTION ACCOUNT SETUP NETWORK/MOUNTINGPOWER ACCESS CONTROL
CAPXL/CAPXLV
Power Supply
Goose-neck Gasket
PK625 Keys (2)
Ferrite Core
S10K30MOV
(Metal Oxide Varistor)(4)
1N4005 Diode Kit (4)
Torx Screw (2)
Radio Antenna (Security+ 2.0
®
)
and Cable
Wi-Fi
®
Antenna and Cable
Additional Tools Recommended
• Network LAN Cable Tester
• Wi-Fi Analyzer App (smartphone app)
• Network Analyzer software
• Computer with Ethernet port
• Flat Head Screws for Mounting
Preparation for Installation
Be prepared by downloading and completing our Installation Readiness Survey. Assess current internet connection details of the
community site prior to new unit or upgrade of an installation, and identify action items needed to proceed. You can find this helpful tool
at the following link: https://p.widencdn.net/oyeejd/114a4574.
