Operation
The Protector System
®
(Safety Reversing Sensors)
Be sure power is NOT connected to the garage door opener
BEFORE installing the safety reversing sensor.
To prevent SERIOUS INJURY or DEATH from closing garage
door:
l Correctly connect and align the safety reversing sensor.
This required safety device MUST NOT be disabled.
l Install the safety reversing sensor so beam is NO
HIGHER than 6" (15 cm) above garage floor.
The door will not close if the sensors have not been
installed and aligned correctly.
When the light beam is obstructed or misaligned while the door is
closing, the door will reverse and the garage door opener lights
will flash ten times. If the door is already open, it will not close.
The sensors can be aligned by loosening the wing nuts, aligning
the sensors, and tightening the wing nuts. Check to make sure the
LEDs in both sensors are glowing steadily. The LEDs in both
sensors will glow steadily if they are aligned and wired correctly.

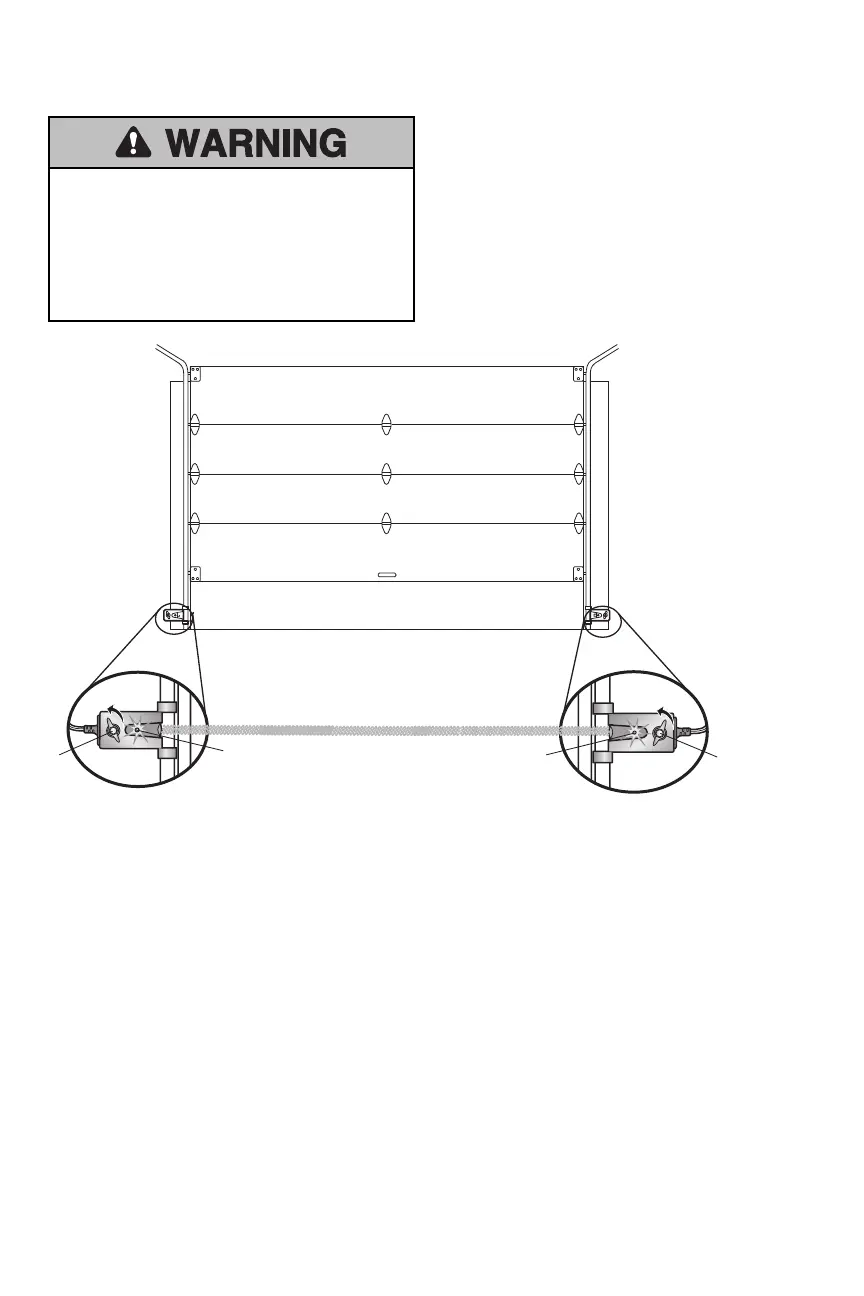

Safety Reversing Sensor
6" (15 cm) max. above floor
Safety Reversing Sensor
6" (15 cm) max. above floor
Green LED
RECEIVING SENSOR
Amber LED
SENDING SENSOR
(invisible light beam)
Wing
Nut
Wing
Nut
If the amber LED on the sending sensor is not glowing:
1. Make sure there is power to the garage door opener.
2. Make sure the sensor wire is not shorted/broken.
3. Make sure the sensor has been wired correctly:
White wires to white terminal and white/black wires to gray terminal.
If the green LED on the receiving sensor is not glowing:
1. Make sure the sensor wire is not shorted/broken.
2. Make sure the sensors are aligned.
11
