Chamberlain RJO - Install the Door Control

10

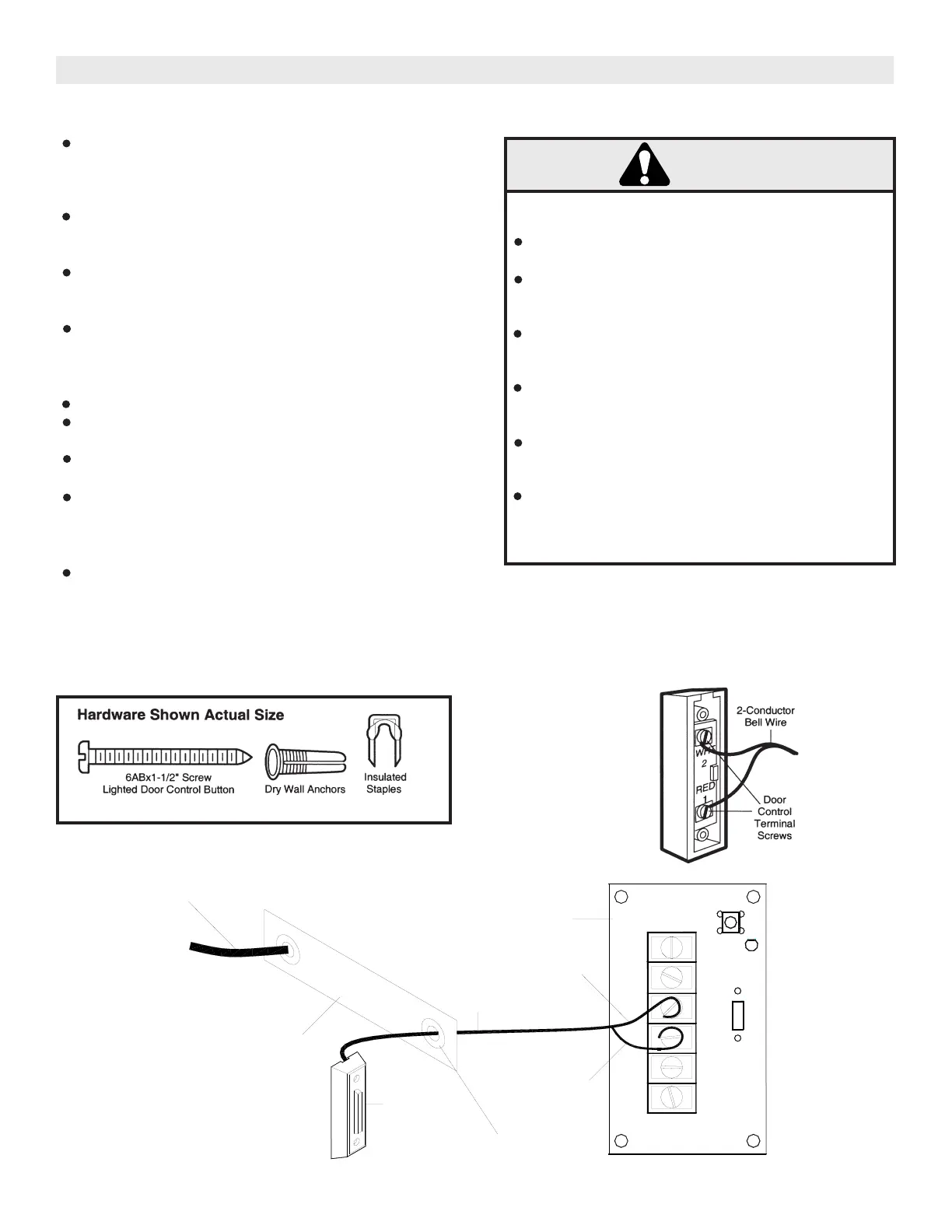

INSTALL THE DOOR CONTROL
Locate the Door Control within sight of the door
at a minimum height of 5 feet where small
children cannot reach, and away from all moving
parts of the door and door hardware.
Strip 1/4” of insulation from one end of the bell wire;
connect the wire to the two screw terminals on the
back of the Door Control by color.
Fasten the Door Control Button securely with
6ABx1-1/2” screws. If installing into drywall, drill
5/32” holes and use the anchors provided.
Run the bell wire up the wall and across the ceiling
to the opener. Use insulated staples to secure the
wire in several places. Be careful not to pierce the
wire with a staple, thereby resulting in a short.
Open hinged front panel of opener.
Route wires through bushing and up to interface
board.
Connect the bell wire to the opener terminal
screws: white to CMN and white/red to SBC.
Affix the User Safety Instruction label to the wall
near the Door Control, and the Maintenance
Instruction label in a prominent location on the
inside of the garage door.
If the label adhesive will not adhere to your garage
wall surface (or becomes loose with time) use tacks
to secure the label alongside the Door Control.
WARNING
CAUTION
WARNING
WARNING
To prevent possible SERIOUS INJURY or DEATH
from electrocution:
Be sure power is not connected BEFORE
installing door control.
Connect ONLY to 24 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH
from a closing garage door:
Install door control within sight of garage door,
out of reach of children at a minimum height of 5
feet, and away from all moving parts of door.
NEVER permit children to operate or play with
door control push buttons of remote control
transmitters.
Activate door ONLY when it can be seen clearly, is
properly adjusted, and there are no obstructions
to door travel.
ALWAYS keep garage door in sight until
completely closed. NEVER permit anyone to
cross path of closing garage door.
CMN
IR WH/BK
IR WHITE
SBC
TB1
R1
SBC
S1
D1
2-CONDUCTOR
BELL WIRE
WHITE LEAD
RED LEAD
BUTTON
DOOR CONTROL
INTERFACE BOARD
POWER CORD
FRAME SPACER
BUSHING
