Chamberlain RJO70 - Garage Door Opener Assembly Parts; Installation Parts; Repair Parts

43
Installation Parts
8
3
4
5
7
6
9
10
2
1
Repair Parts
KEY
NO.
PART NO. DESCRIPTION KEY
NO.
PART NO. DESCRIPTION
1 K029B0137 Remote control visor clip
2 K010A0020 3V CR2032 Lithium battery
3 041A4582 Emergency release rope and handle
assembly
4 041B4494-1 2-Conductor bell wire - white and
white/red
5 041A6104 Cable tension monitor
6 041A5034 Safety Reversing Sensor kit (receiving
and sending sensors) with 2-conductor
bell wire attached
7 041C0902 Mounting bracket
8 041A5266-1 Safety reversing sensor brackets (2)
9 041D8615 Collar with set screws
10 G4228 Battery
NOT SHOWN
114-5272 User's Guide
114-5271 Quick Start Guide

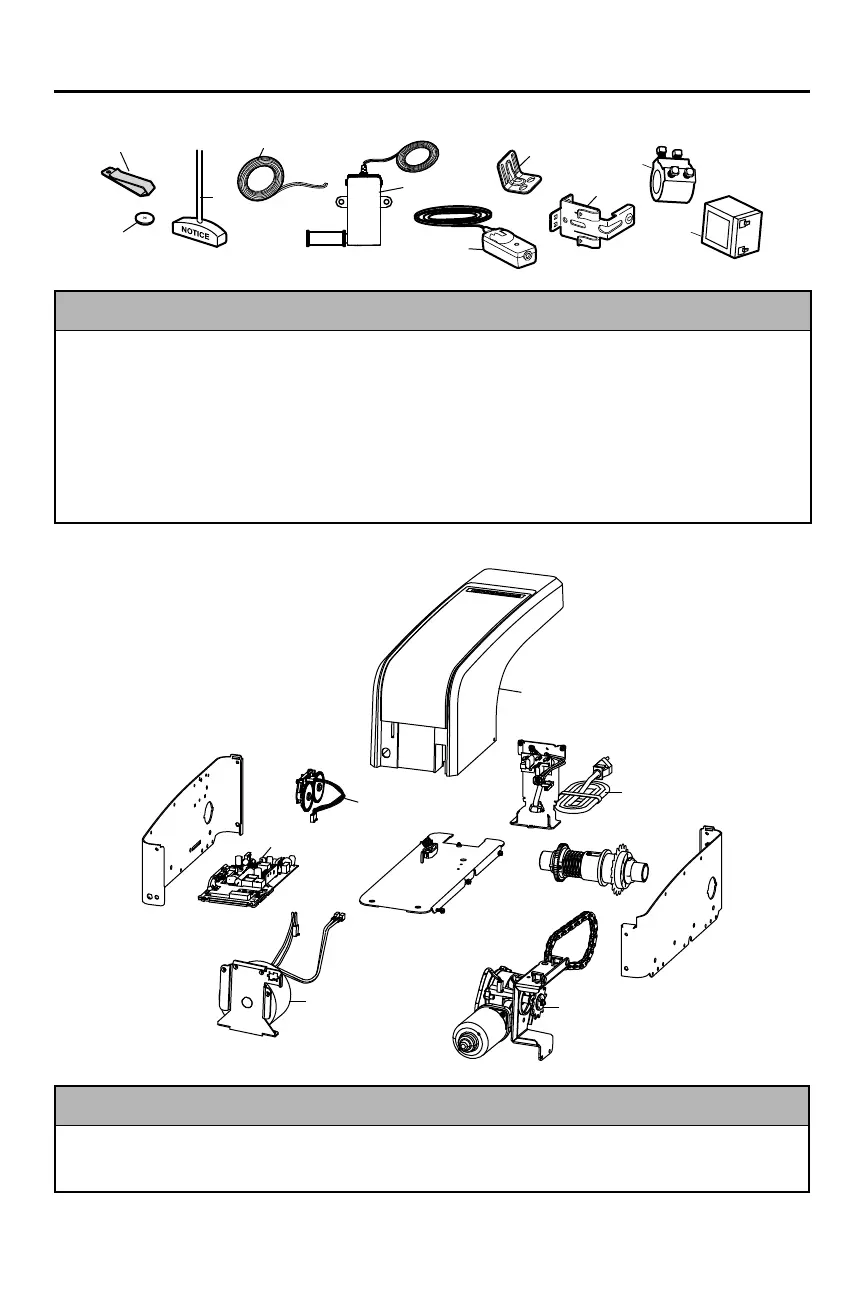

Garage Door Opener Parts
3
2
5
4
1
6
KEY
NO.
PART NO. DESCRIPTION KEY
NO.
PART NO. DESCRIPTION
1 050DCRJWF Logic Board
2 041B8861 Travel Module with Wire Harness
3 041C0296 Transformer
4 041D1624-2 Motor
5 041D0190 Power cord
6 041-0017-000 Cover
