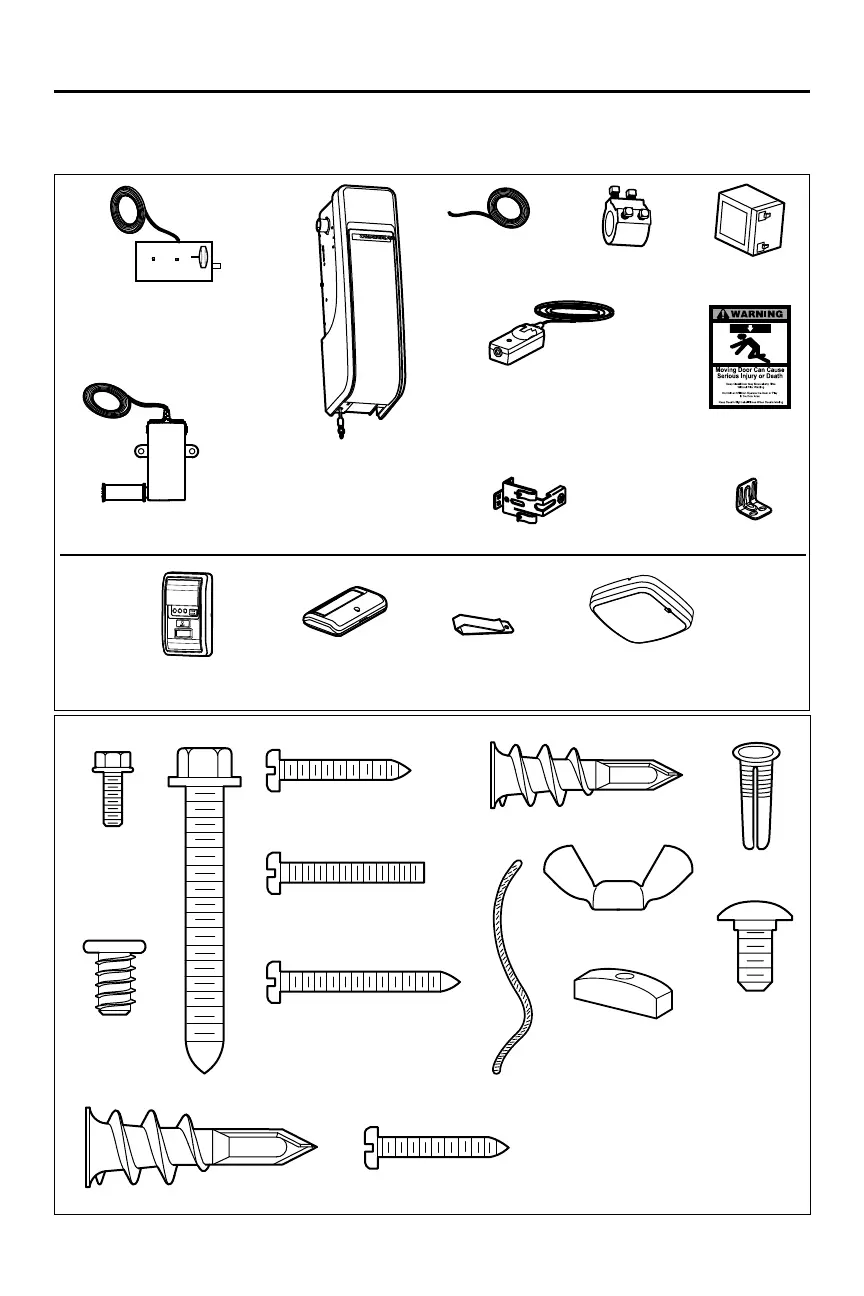

Carton Inventory
Save the carton and packing material until the installation and adjustment is complete. The images throughout this manual
are for reference only and your product may look different.
Preparation (continued)
Remote Control
Visor Clip
1-Button Premium
Remote Control
Model 950ESTD (1)
Smart LED Light myQLED1
(Garage Door Opener Light)
with Hardware Bag
Automatic Garage Door Lock
with Wire and Connector
NOTE: Older model 24V door locks
are incompatible
2 Conductor Wire
White and White/Red
Garage Door Opener
Cable Tension Monitor with
2-Conductor Green/White Wires Mounting Bracket
Collar with
Set Screws
Safety Reversing Sensor Bracket (2)
The Protector System
®
(2) Safety Reversing Sensors
(1 Sending Sensor and
1 Receiving Sensor) with
2-Conductor White and
White/Black Wire attached
Safety Labels
and Literature
Motion-Detecting
Control Panel
Battery
Screw #10-32 (2)
Screw 14-10x2" (4)
Handle
Rope
Screw 1/4"-20x1/2" (2)
Drywall Anchor (Screw-In) (2)
Screw 8-32x1" (2)
Screw 6ABx1-1/4" (2)
Drywall Anchor (2)
Screw 6-32x1" (2)
Carriage Bolt 1/4"-20x1/2" (2)
Wing Nut 1/4"-20 (2)
REMOTE LIGHT HARDWARE:
myQ Remote LED Light Model myQLED1
Drywall Anchor (Screw-In) (2)
Screw #6x1" (2)
ACCESSORIES
Screw
#10-32 (2)
REMOTE LIGHT HARDWARE
INCLUDED HARDWARE
Screw
14-10x2" (4)
Screw
1/4"-20x1/2" (2)
Lag Screw
5/16"-9x2"
Screw 1/4-20 (2) Wall Anchor (2)
Staples
#8 Hex Head Screw (2)
Screw #6 (2) Wall Anchor (2)
Staples
Screw
#8-32x1" (2)
Drywall Anchor (screw-in) (2)
Lag Screw
5/16"-9x2"
Screw 1/4-20 (2) Wall Anchor (2)
Staples
#8 Hex Head Screw (2)
Screw #6 (2) Wall Anchor (2)
Staples
Screw 6ABx1-1/4"
(Standard installation) (2)
Screw 6-32x1"
(pre-wired) (2)
Drywall
Anchors (2)
Rope
Handle
Wing Nut
1/4"-20 (2)
Carriage Bolt
1/4"-20x1/2" (2)
Drywall Anchor (screw-in) (2)
Screw #6x1" (2)
