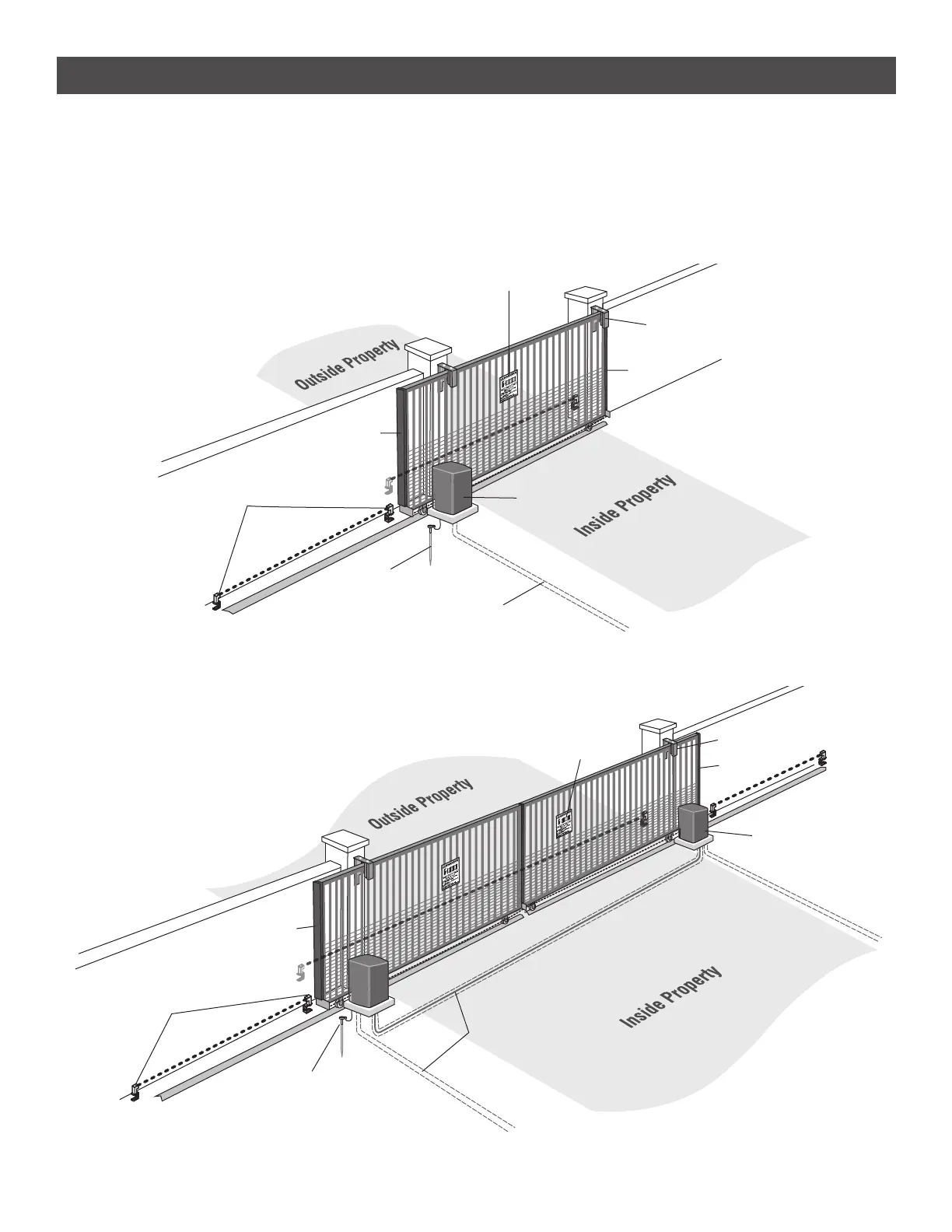

OVERVIEW OF TYPICAL INSTALLATION
NOTE: One or more non-contact sensors shall be located where the risk of entrapment or obstruction exists at either the opening or closing direction.
Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle, trips the sensor while the gate is still moving.
Any gap between the gate and a fixed object such as a wall, pillar, column or the operator itself larger than 2 1/4 inches must be filled.
SINGLE GATE
DUAL GATE
Identify your installation type (refer to the Appendix in the back of the manual for more information).
Operator
Water Tight Conduit
(Not provided)
NOTE: Power and control wiring
MUST be run in separate conduits.
Earth Ground Rod
Check national and local
codes for proper depth
Warning Sign
Photoelectric
Sensors
Safety Catch
Roller
Operator
Water Tight Conduit
(Not provided)
NOTE: Power and
control wiring MUST be
run in separate
conduits.
Earth Ground Rod
Check national and local
codes for proper depth
Warning Sign
Photoelectric
Sensors
Safety Catch Roller
Edge Sensor
Edge Sensor
Edge Sensor
Edge Sensor
