Chamberlain WLED User Manual

50
Repair Parts
Models WLED and WLED-267

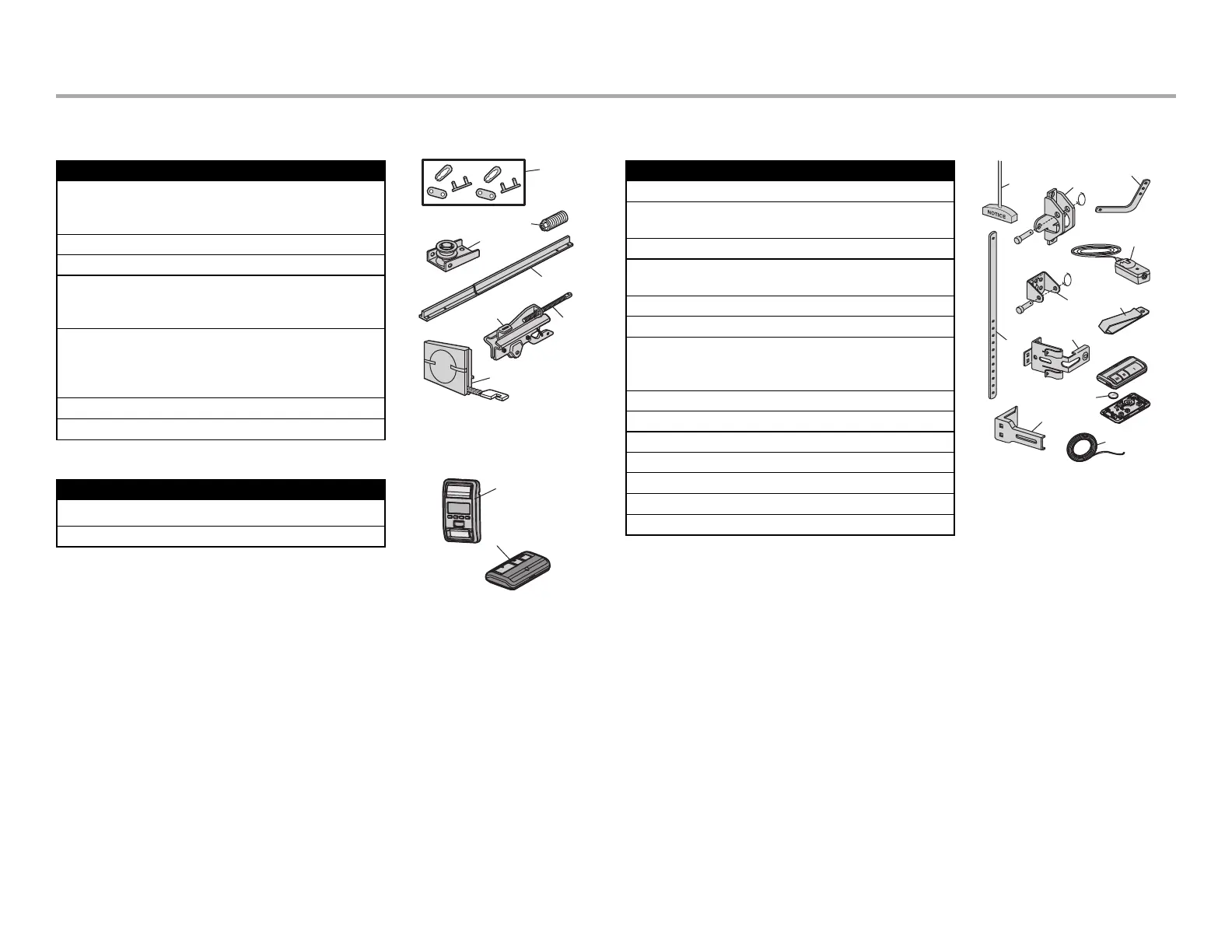

Rail Assembly Parts
Description Part Number
1 Belt - for 7 foot door 041A5434-11A
Belt - for 8 foot door 041A5434-13A
Belt - for 10 foot door 041A5434-14A
2 Belt Pulley Bracket 041B5424
3 Master link 004A1008
4 One-Piece Rail 7feet (2.1m) G2777
One-Piece Rail 8feet (2.4m) G2778
One-Piece Rail 10feet (3m) G2770
5 Trolley Assembly Includes:
MasterLink (2), ClevisPin (1), Ring
(1), BeltClip (1), ThreadedShaft (1),
and TensionerAssembly (1)
041B3869-3A
6 Tensioner Assembly 041B4103
7 Trolley Threaded Shaft 041A6689
1
3
4
5
7
6
2
Accessories
Description Part Number
1 Smart Control Panel
®
880LMW
2 3-button remote control 893LM
1
2
Installation Parts
Description Part Number
1 Curved door arm 041B0035B
2 Door bracket with clevis pin and
fastener
041A5047-1
3 Emergency release rope and handle 041A2828
4 Header bracket with clevis pin and
fastener
041A4353-1
5 Remote control visor clip K029B0137
6 Safety sensor bracket 041A5266-3
7 Safety sensor kit with receiving and
sending sensors with 3 feet (.9 m) 2-
conductor wire
041A5034
8 Straight door arm 4178B0034B
9 White and red/white wire 041B4494-1
10 3V CR2032 lithium battery K010A0020
11 Extension bracket (optional) 041A5281-1
Not Shown
Installation hardware bag 041A2770-6
User’s Guide 114A5227
1
2
3
4
6
7
8
10
5
9
11

Chamberlain WLED Specifications

General

Type	Garage Door Opener
Security	Rolling code technology
LED Lights	Yes
Drive	Belt Drive
Motor Power	1/2 HP
Light Source	LED
LED Indicator	Yes
Mounting Type	Ceiling Mount
Connectivity	Wi-Fi
Max Door Height	7 feet
Smart Home Compatibility	Amazon Alexa, Google Assistant
Safety and Security Features	rolling code technology
