6
Preparation

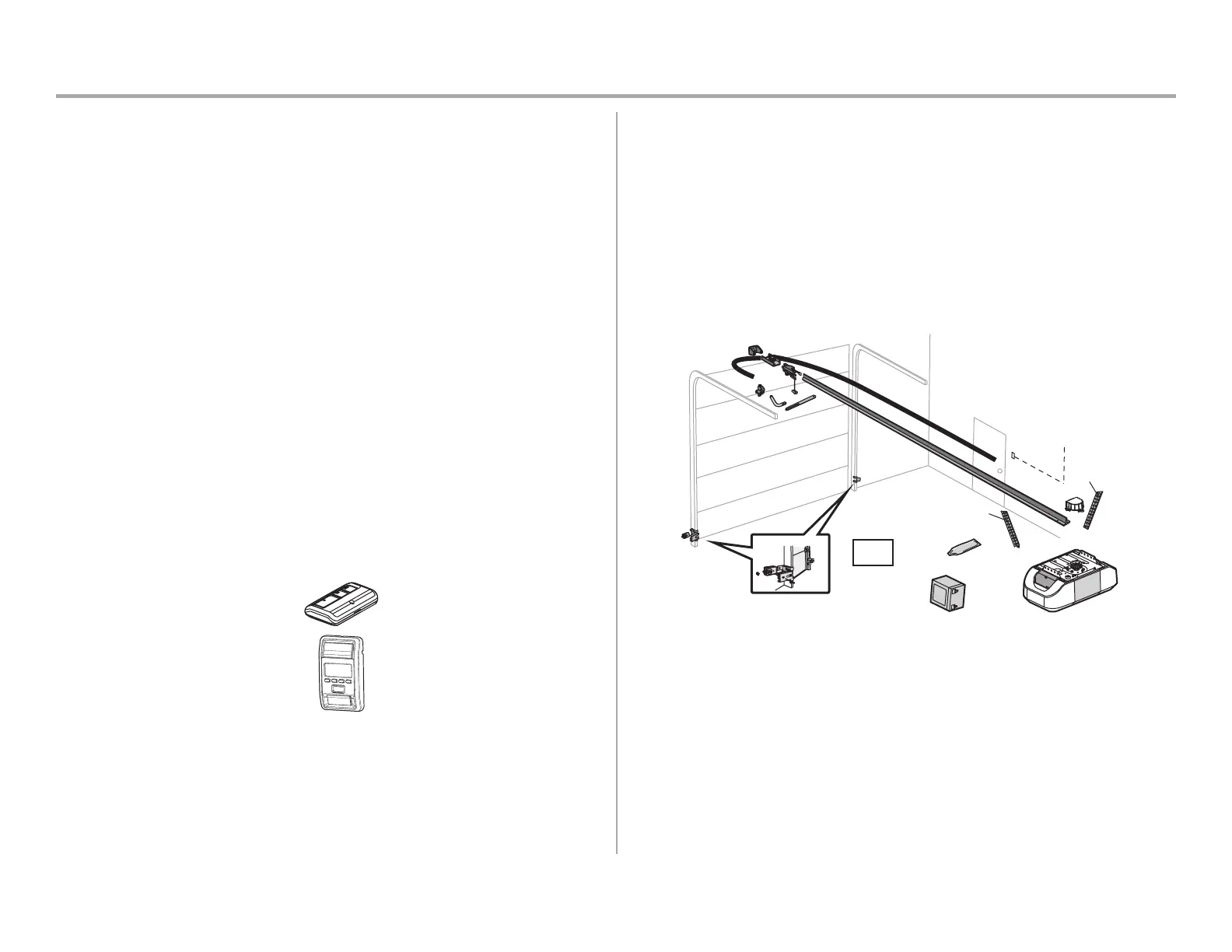

Carton Inventory: Models 8550W, 8550WL, 8550WLB,
8550WLB-267, 8557WL, WLED and WLED-267
Accessories will vary depending on the garage door opener model purchased. Depending on your
specific model, other accessories may be included with your garage door opener. The instructions for
these accessories will be attached to the accessory and are not included in this manual. The images
throughout this manual are for reference and your product may look different.
A. Header bracket
B. Pulley and bracket
C. Door bracket
D. Curved door arm
E. Straight door arm
F. Trolley
G. Emergency release rope and handle
H. Rail
I. Garage door opener
J. Sprocket cover with hex screws
K. Belt
L. Door control
M. White and red/white wire
N. The Protector System
Safety reversing sensors with white and white/black wire attached: Sending sensor
(1), receiving sensor (1), and safety sensor brackets (2)
O. Safety labels and literature
P. Rail grease
Q. Battery (If applicable)
Security+ 2.0 Accessories
893MAX
3- Button Remote Control
880LMW
Smart Control Panel
®
Installation
Hex Bolt 5/16"-18 x 7/8" (4) Lock Washer 5/16" (4)
Lag Screw 5/16"-9 x 1-5/8" (2) Self-Threading Screw 1/4"-14 x 5/8" (2)
Clevis Pin 5/16" x 2-3/4" (1) Ring Fastener (3)
Clevis Pin 5/16" x 1-1/4" (1) Carriage Bolt 1/4"-20 x 1/2" (2)
Clevis Pin 5/16" x 1" (1) Wing Nut 1/4"-20 (2)
Nut 5/16"-18 (4)
Door Control Hardware
Screw 6AB x 1" (2) Drywall Anchors (2)
Screw 6-32 x 1" (2)
A
B
C
J
N
I
O
P
Q
D
E
F
H
G
K
L
M
Not Provided
Not
Provided
