Chamberlain WLED User Manual

52

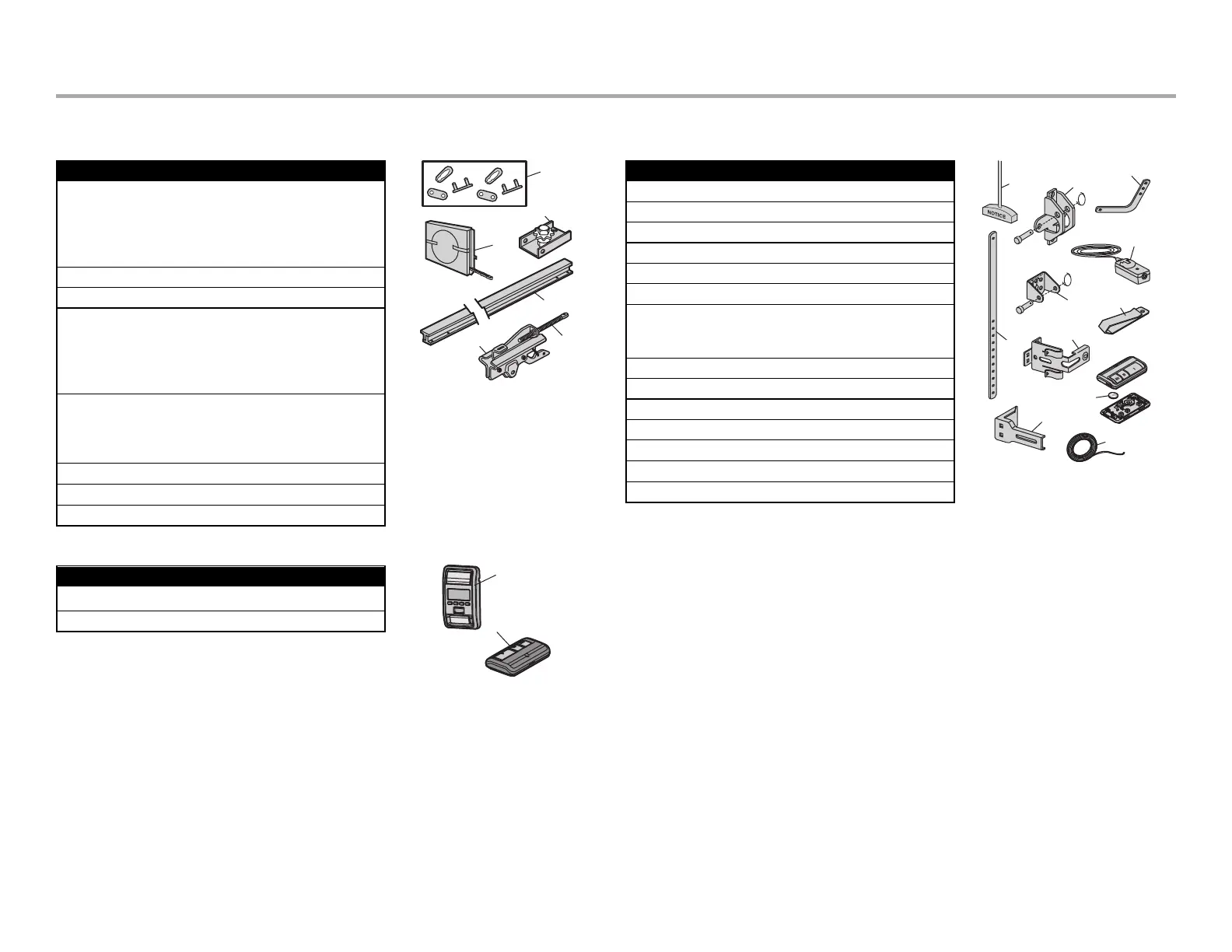

Repair Parts
Models 8587W, 8587WL, and 8580WLB
Rail Assembly Parts
Description Part Number
1
Chain - for 7 foot door
041D3484
Chain - for 8 foot door
041D3483
Chain - for 10 foot door
041D3485
Chain - for 12 foot door
19-5812
Chain - for 14 foot door
19-5814
2
Chain Pulley Bracket
041A2780
3
Master link
004A1008
4
One-Piece Rail 7feet (2.1m)
3707CH
One-Piece Rail 8feet (2.4m)
3708CH
One-Piece Rail 10feet (3m)
3710CH
One-Piece Rail 12feet (3m)
3712CH
One-Piece Rail 14feet (3m)
3714CH
5
Trolley Assembly Includes:
ThreadedShaft(1), Nuts(2), Washer(1),
ClevisPin(1), Ring (1), MasterLink (1),
ChainExtension
041A3489
6
Trolley ThreadedShaft
041A6689
Not Shown
Rail Grease
K083A0011-1
1
3
4
5
6
2
Accessories
Description Part Number
1
Smart Control Panel
®
880LMW
2
3-button remote control
893LM
1
2
Installation Parts
Description Part Number
1
Curved door arm
041B0035B
2
Door bracket with clevis pinandfastener
041A5047
3
Emergency release ropeand handle
041A2828
4
Header bracket with clevis pinand fastener
041A4353
5
Remote control visor clip
K029B0137
6
Safety sensor bracket
041A5266-3
7
Safety sensor kit with receiving and
sending sensors with 3 feet (.9 m) 2-
conductor wire
041A5034
8
Straight door arm
4178B0034B
9
White and red/white wire
041B4494-1
10
3V CR2032 lithium battery
K010A0020
11
Extension bracket (optional)
041A5281-1
Not Shown
Installation hardwarebag
041A2770-6
User’s Guide
114A5216
1
2
3
4
6
7
8
10
5
9
11
