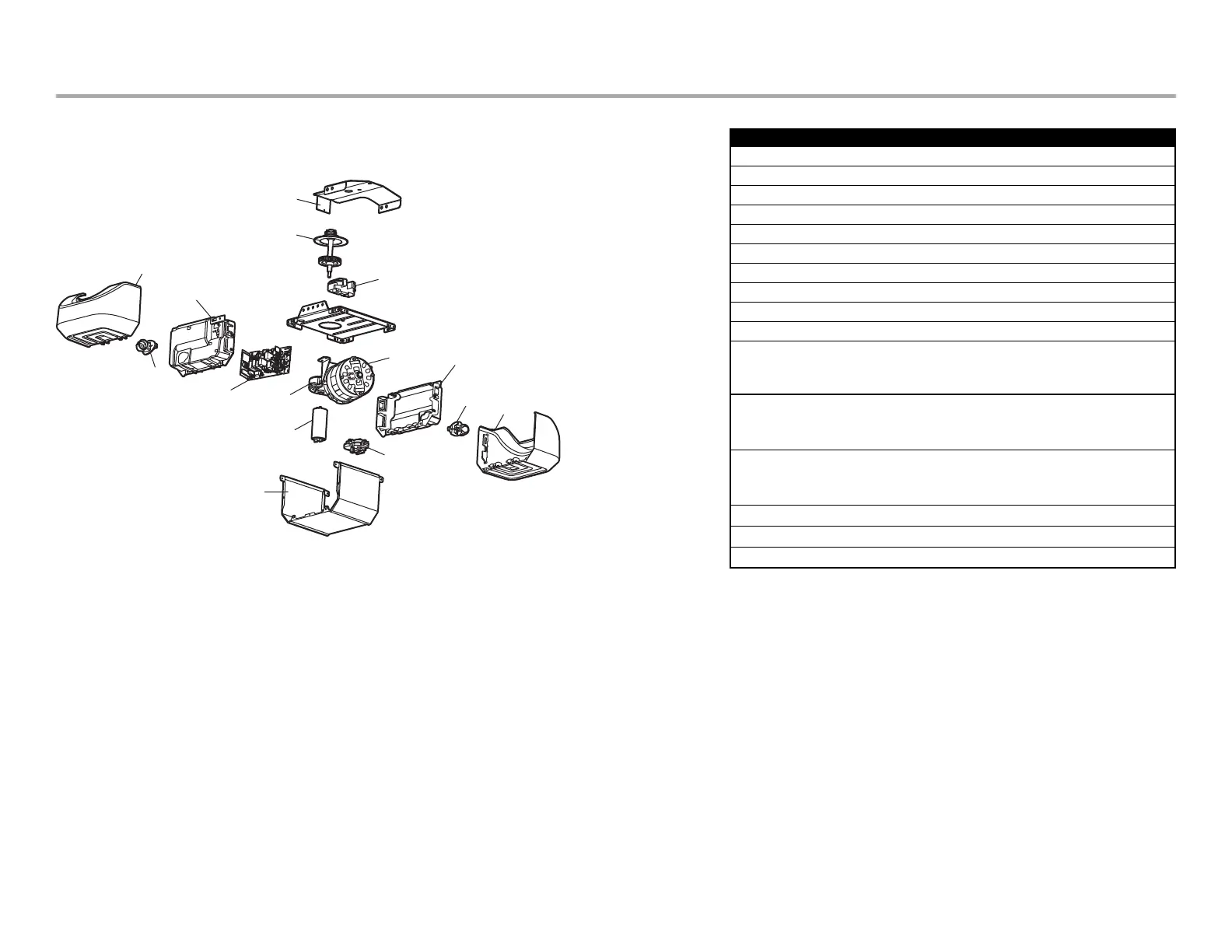

Repair Parts
Models 8587W and 8587WL
Garage Door Opener Parts
5
1
4
10
9
2
11
12
13
6
6
7
8
7
3
Description Part Number
1 Chassis Support Bracket 041C5069
2 Chain spreader 041A4208-2
3 Gear and Sprocket 041A5658-1
4 Gear Case 041A5532
5 Front End Panel 041A7756-1
6 Light socket 041C0279
7 Light Lens 041A7562
8 Capacitor 030B0652
9 Motor with Travel Module 041A7767
10 Travel Module 041D7742-5
11 Cover
8587W 041D8258
8587WL
041D8856
12 Receiver Logic Board
8587W 041D8198
8587WL
050ACTWFLK
13 Logic Board End Panel
8587W 050DCTWF
8587WL
041D0216-2
Not Shown
Wire Harness 041A7814
Transformer 041A0308
