93
P/N 115107 - Condensate Removal Option Installation Instructions

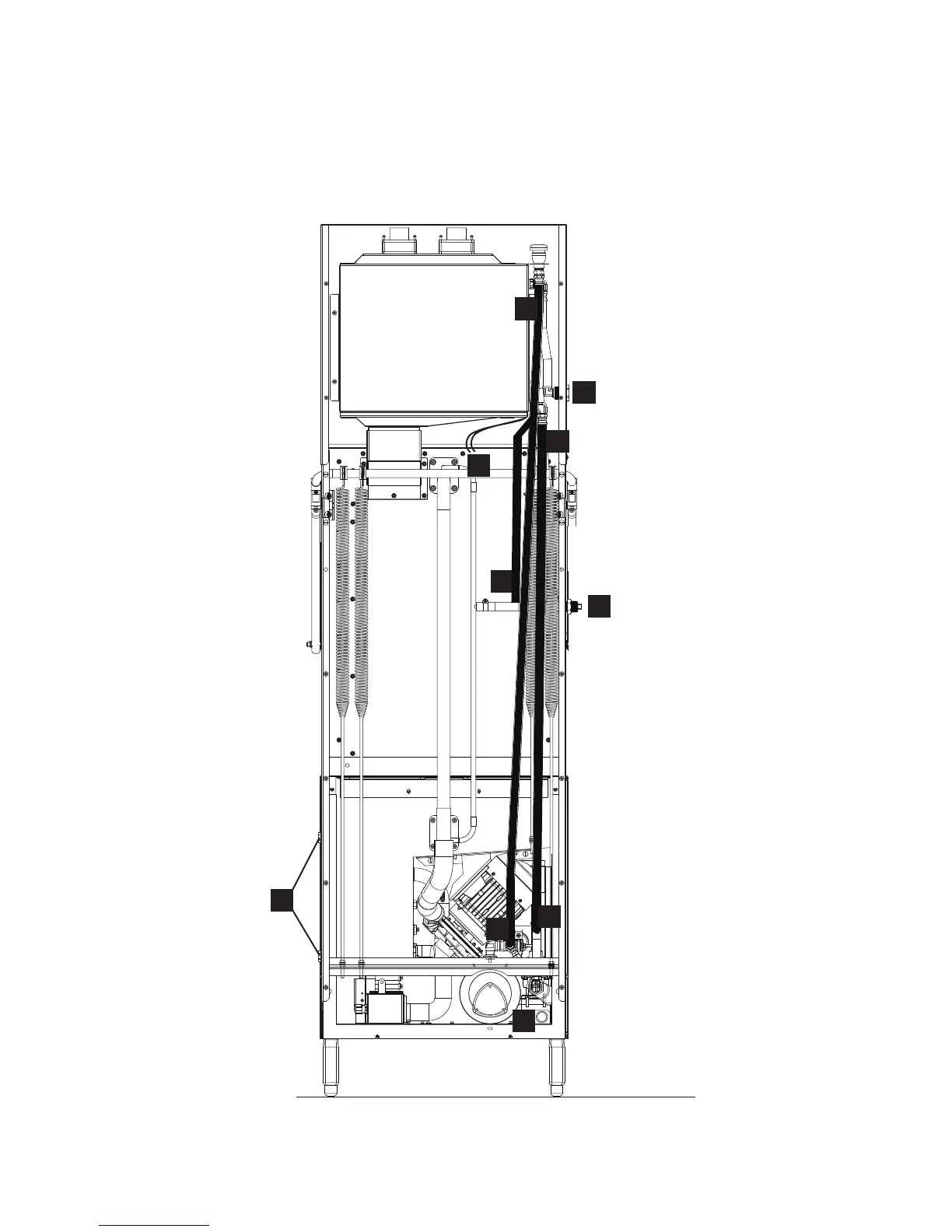

Condensate Removal Shroud Electrical and Plumbing Connections
The following pages describe the electrical fan connection and the plumbing connections for the
Condensate Removal Option. The chemical injection points for the DH5000 are also included.
(A) Preconnected hose to the
inlet of the vacuum breaker.
The other end of this hose
is connected to the booster
outlet.
(B) Preconnected hose to the
outlet of the condensate coil.
The other end of this hose
is connected to the inlet of the
line strainer.
(C) Preconnected hose to the
outlet of the vacuum breaker.
The other end of this hose
isconnectedtotheinletnal
rinse piping located behind the
hood spring on the right-hand
side of the hood as viewed
from the rear.
(D) Cold water supply inlet.
(E) Condensate vent fan wires.
(F) Final rinse-aid injection point.
(G) Main power supply wire
mounting bracket.
(H) Detergent injector and sensor
connection points.
(continued on next page)
H
B
C
D
E
F
G
A
B
A
Condensate
Removal
Shroud
Assembly
To Next Page
