4
Refer to the illustration below and on the next two pages to convert a straight-through operation
machine to a corner operation machine.
To convert the dishwasher:
1. Place the dishwasher as shown below so the control panel faces into the room
and is accessible to the operator.
2. Position the rear of the machine a minimum of 1-7/8" [48 mm] from the back wall and a
minimum of 5⅛" [130 mm] from the right side wall.
3. Make the utility connections as described in this manual and in accordance with all
local codes and regulations.
4. Install the dish tables so the edge of each table ts over the inner wall of the dishwasher
tank.
5. Secure the dish tables to the dishwasher
6. Seal each dish table joint with a food-grade sealant to prevent leaks.
Installation
Converting Straight-through Operation to Corner Operation
! ATTENTION !
A straight-through machine can be converted to a corner configuration in the field.

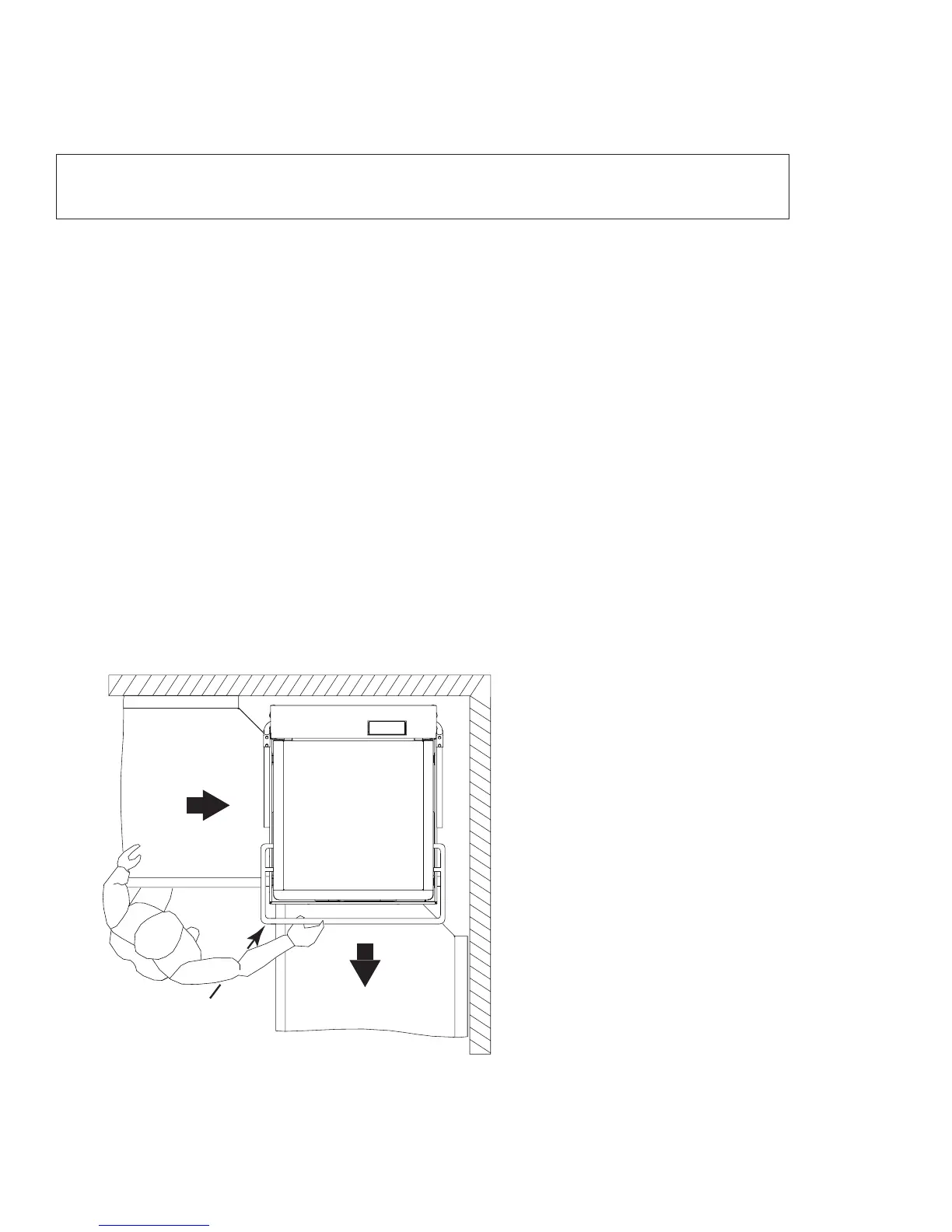

Corner Operation Shown
Control
Panel
