Installation
Electrical Connections
WARNING:
Electrocution or serious injury may result when working on an
energized circuit.
Disconnect power at the main breaker or service disconnect
switch before working on the circuit.
Lock-out and tag the breaker to indicate that work is being
performed on the circuit.
! ATTENTION !
A qualified electrician must connect the main incoming power to the dishwasher in accordance
with all local codes and regulations or in the absence of local codes in accordance with the
National Electrical Code or the Canadian Electrical Code. Improper installation will not be
covered by the Limited Warranty.
1. Make sure the incoming power is disconnected
at the main disconnect switch or circuit breaker.
2. The dishwasher is available for either single or
three phase operation. Standard voltages are
208-240V/60/1 & 3, and 460-480V/60/3.
3. A Machine Electrical Connection Data Plate
is located directly below the input terminal
block. Make sure the incoming power supply
matches the machine's electrical requirement
before connecting incoming power.
4. Remove the front and left side dishwasher
panels.
5. The incoming power supply is routed from the
rear of the machine to the input terminal block
located at the front of the machine.
(See A and B on next page).
6. Connect the incoming power exible conduit to
the incoming conduit mounting bracket
located on the rear of the dishwasher base
making sure to leave 6 feet [2 m] of excess
conduit and conductors to allow for servicing of
the dishwasher.
Connecting Incoming Power Supply
continued on next page

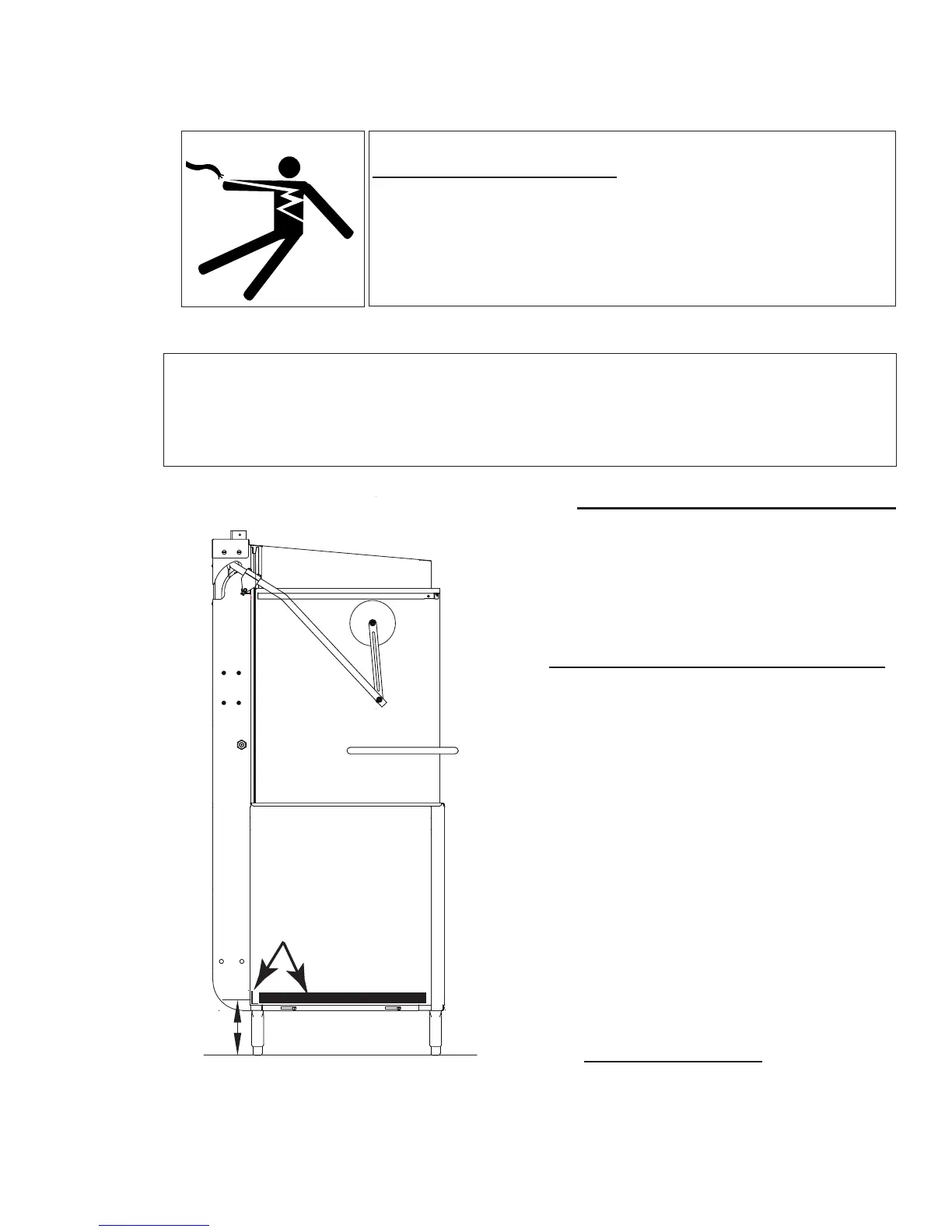

Incoming Power Routing.
8¾"
[222]
Power Bracket
and Conduit
To Next Page
