Champion DH5000T Series User Manual

2-3/8"
[60]
1-7/8"
[48]
4"
[102]
I.D.
5-1/8"
[130]
Min.
13"
[330]
Machine
Mounted
Direct
Vent Fan
Control Box
77
P/N 115109 - Direct Vent Option Installation Instructions
Model DH5000T Direct Vent Option Description
93
1
4
[2369]
"
70
1
8
[1781]
Machine
Height
Direct Vent
Mounted
"
23
[584]
"
~
~
Direct Vent
A
B
The direct vent option is a stainless steel vent shroud (approximate weight 26 lbs/22 kg) and
a 120VAC/60/1 vent fan supplied by the factory or an alternate fan supplied by others. The
electrical connections for the vent fan are located in the direct vent electrical control box.

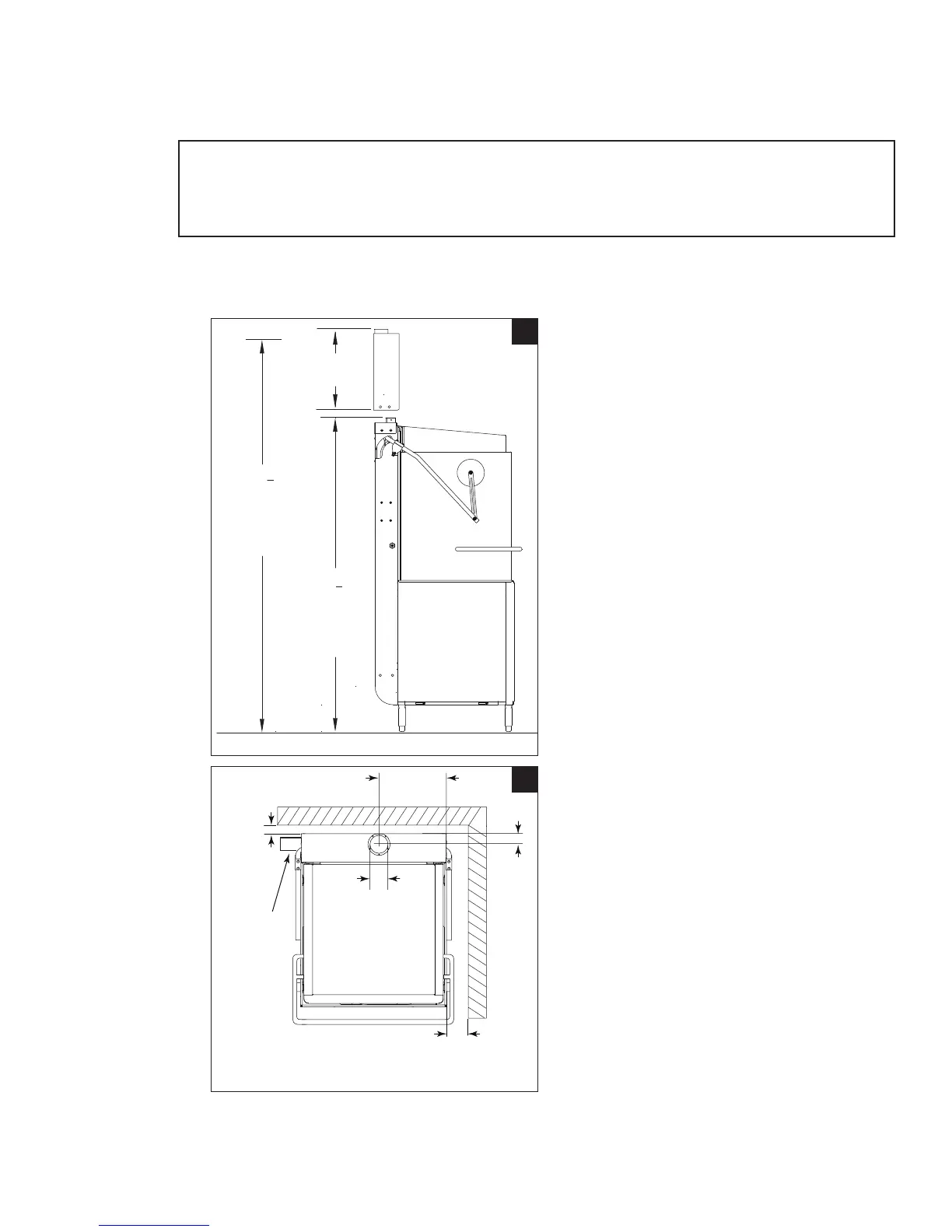

1. The direct vent shroud is mounted on
the top rear of the dishwasher using (4)
1/4-20 x 1/2" SST truss head screws.
(See Figure A).
2. The direct vent shroud must be
installed before the dishwasher
is permanently placed and before
connecting the utilities.
3. The installation of the direct vent fan
and duct work should be installed by
qualiedpersonnel.
4. The dishwasher vent connection is a
round4"[102mm]I.D.ducttting.
5. The vent system must supply
250 CFM at 1/4" static pressure.
The DH5000T minimum distance to
the back wall is 1-7/8" [48mm] for
straight-through operation. If the
dishwasherisconguredforcorner
operation, then the minimum distance
to the back wall is 1-7/8" [48mm] and
5-1/8" [130mm] from the right wall.
(See Figure B).
! VERY IMPORTANT !
The direct vent shroud must be installed before the dishwasher is permanently placed
and before the utilities are connected.
A DIRECT VENT FAN MUST BE INSTALLED TO EXHAUST AIR TO THE OUTSIDE.
