14
Installation

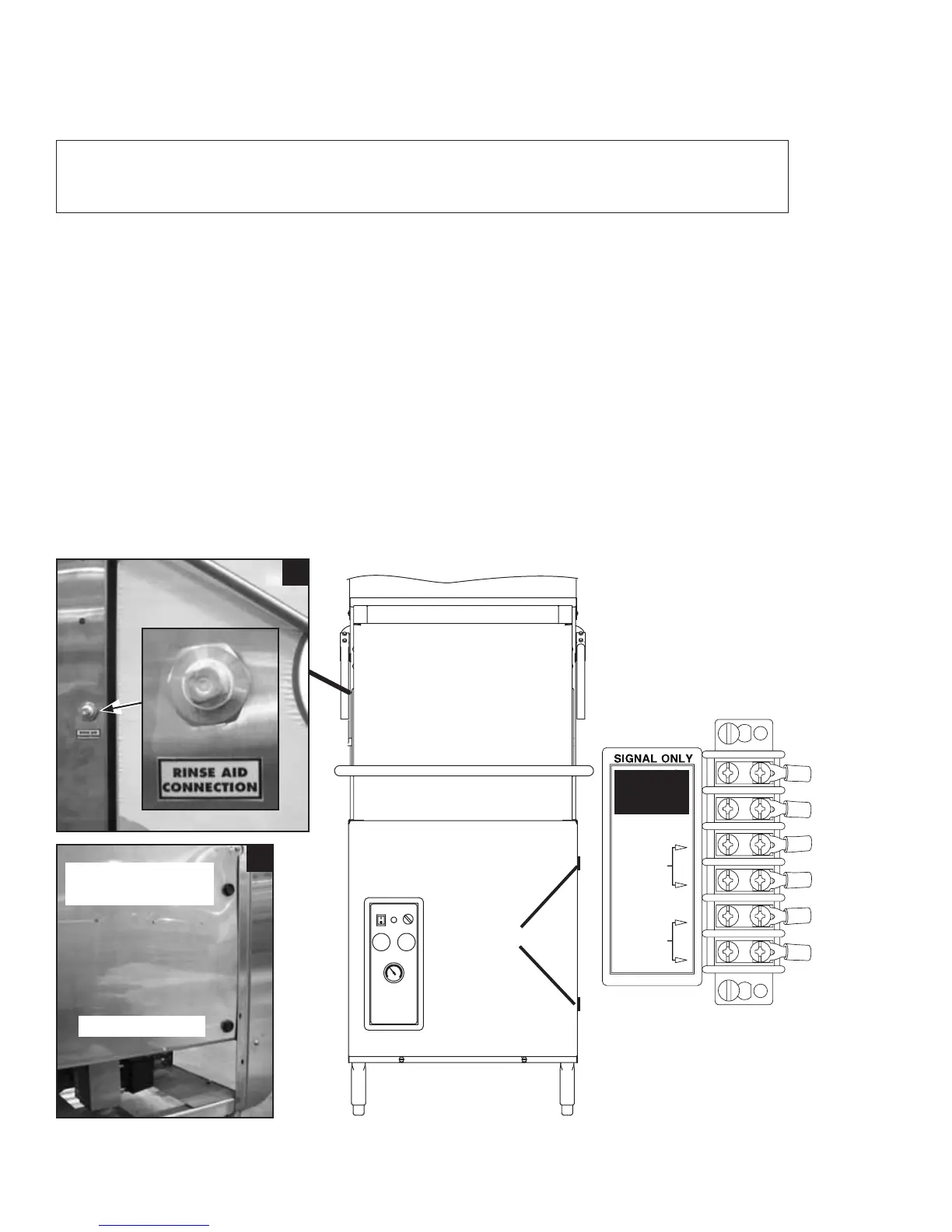

Chemical Dispensing Provisions - Condensate Removal Option Model Only
! ATTENTION !
Consult a qualified chemical supplier for chemical supplies and chemical dispensing
equipment.
Provisions for chemical suppliers to connect their chemical dispensing systems are provided on
the dishwasher and include:
1. A 1/8" NPT tting (A) rinse-aid injection point. The tting is located on the left side
of the dishwasher support hood (see illustration below).
2. Two 7/8" holes (B) are provided on the lower right side of the wash tank for detergent
injection and the detergent probe.
3. Detergent and rinse-aid control signals are available inside the control cabinet.
4. The signals are 120VAC, Max. 1 Amp load. Connection points are located inside the
control cabinet on a labeled terminal block (see below).
120VAC, 1A Dispenser
Signal Terminal Block
A
B
Detergent Injection
Point
Detergent Probe
B
VENT FAN
120V .5A
RINSE AID
120V 1A
DETERGENT
120V 1A
