16
Operation
Control Panel Description

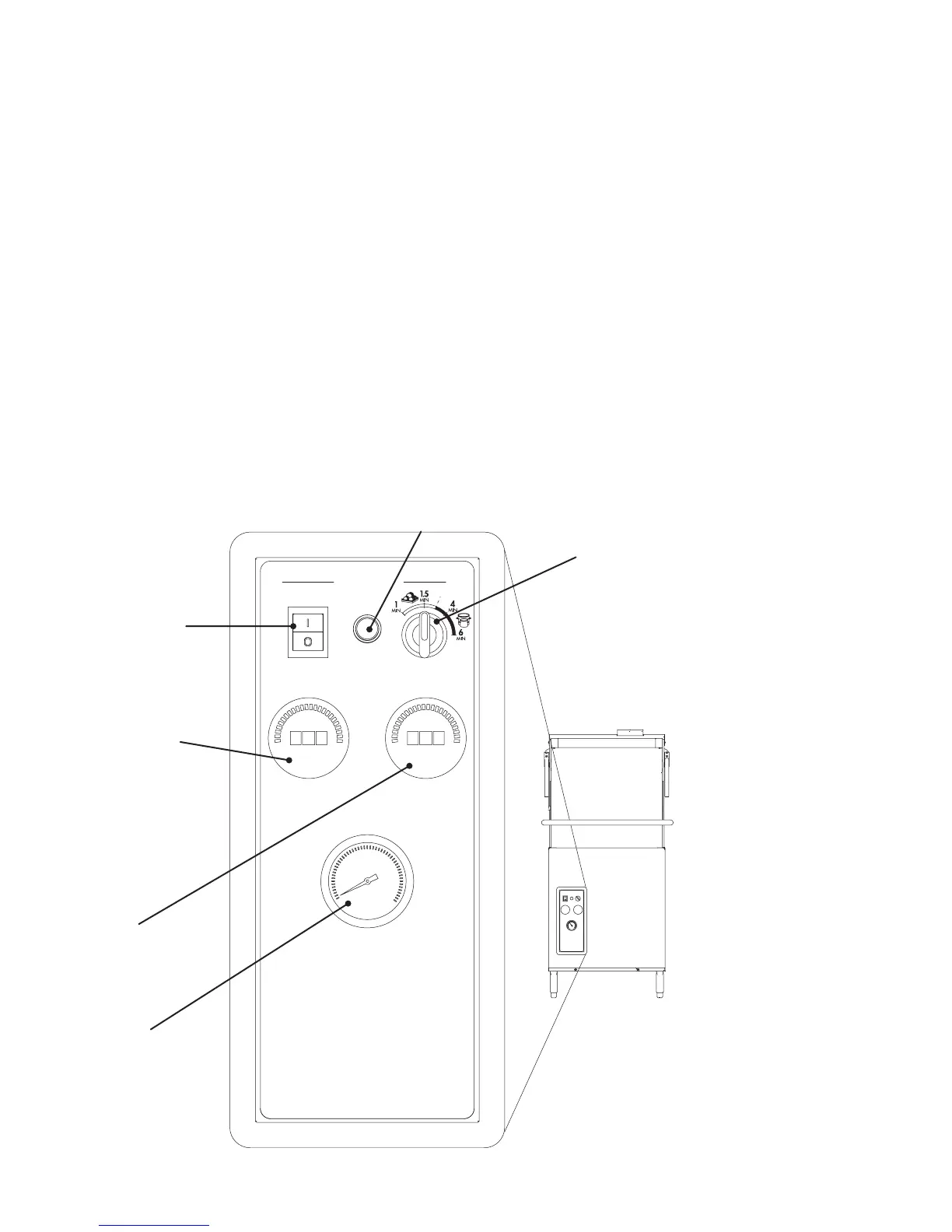

The control panel is located on the front left side of the lower panel. The controls include:
A - ON/OFF DRAIN power switch. Turns power on and off and initiates a drain cycle
when the switch is placed in the Off/Drain position.
B - CYCLE green indicator light. Illuminates during an automatic timed cycle.
The cycle light is off during the 10 minute automatic drain cycle.
C- CYCLE SELECTOR switch. 4 positions provide 1 minute, and 1.5 minute total cycle times for normally
soiled wares and 4 minute and 6 minute total cycle times for pots, pans and heavy soiled wares.
D- WASH (150°F) digital temperature display. Indicates the wash tank water temperature
whenever the dishwasher tank is full of water (See next page, Digital Temperature Displays).
E- RINSE (180°F) digital temperature display. Indicates the final rinse water temperature
during the final rinse (See next page, Digital Temperature Displays).
F- PRESSURE gauge. Indicates the final rinse water flowing pressure during the final rinse.
The proper pressure reading is 20-22 PSI during the final rinse.
A
B
C
E
F
D
POWER WASH
ON
CYCLE
PRESSURE
OFF/DRAIN
WASH
150°F
RINSE
180°F
