1. Remove the direct vent shroud from its
shipping container.

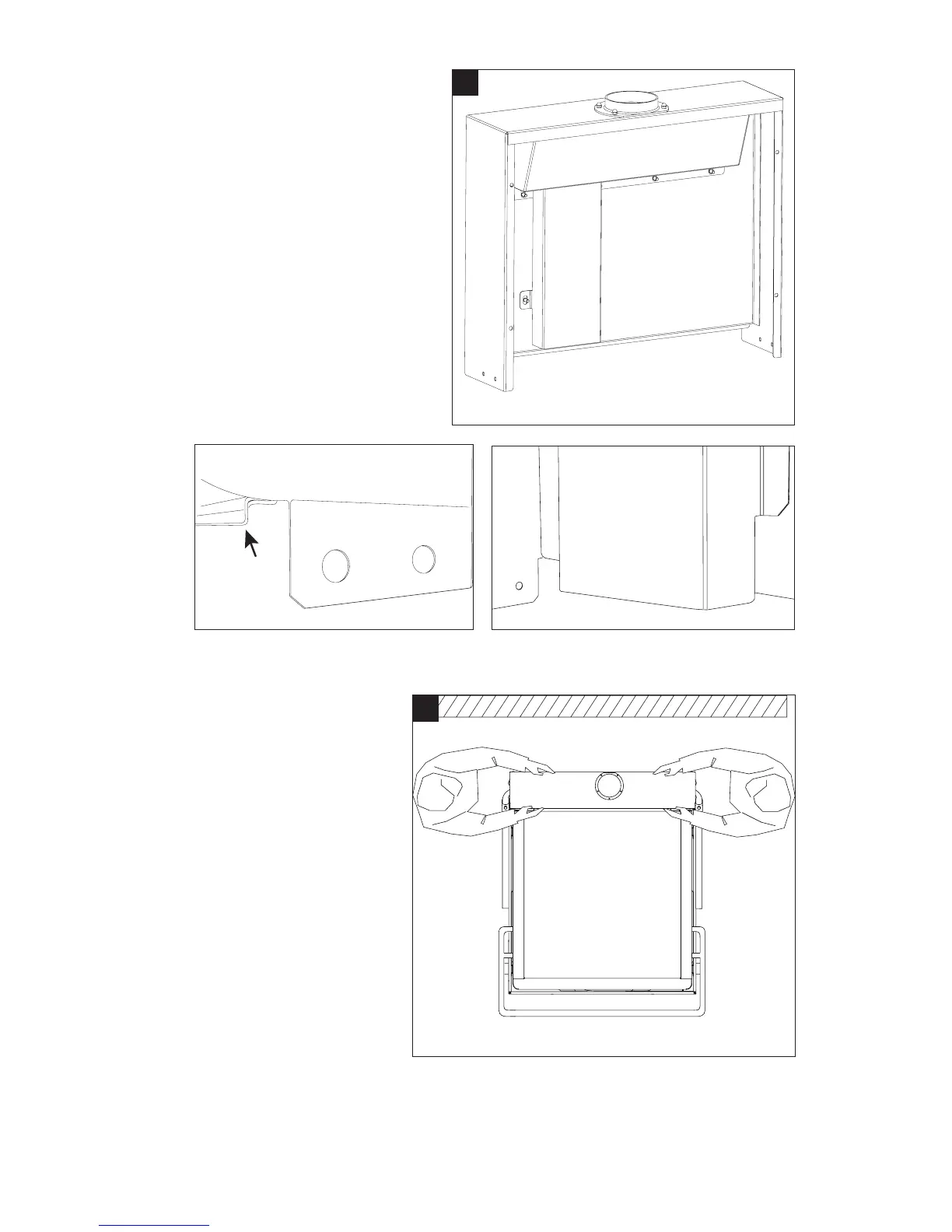

2. Refer to Figure C and note that the vent
shroudhasafrontange(Ca)
and a rear extension (Cb) that interlock
with the dishwasher vent opening.
3. Make sure (Ca) and (Cb) are properly
connected to the dishwasher when the
direct vent shroud is installed.
4. Two persons are needed
to install the vent shroud on
the dishwasher. (See Figure D).
5. Remove the (4) 1/4-20 x 1/2"
truss head vent shroud mounting
screws from the dishwasher hood.
6. Lift the vent shroud over the rear of the
dishwasher and carefully lower it into
position making sure that (Ca)
and (Cb) connect the shroud to the
dishwasher.
7. Reinstall the mounting screws.
78
P/N 115109 - Direct Vent Option Installation Instructions
Installing the Direct Vent Shroud
C
Ca
Cb
Ca
Cb
D
