P/N 115107 - Condensate Removal Option Installation Instructions
Condensate Removal Shroud Electrical and Plumbing Connections

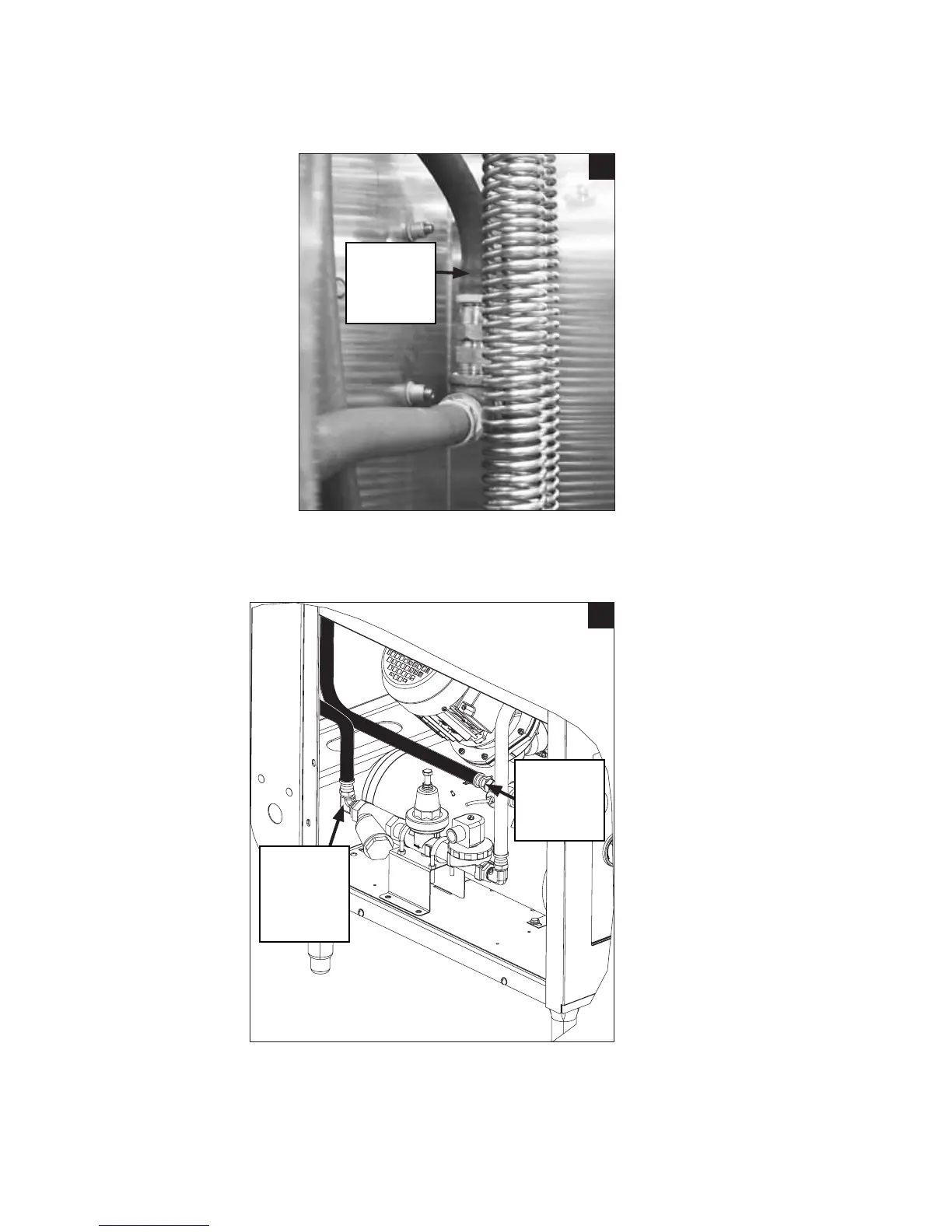

5. Refer to Figure C at left and note
the connection point for the
shortest length of preconnected
condensate removal hose.
The connection point is located
directly behind the right-hand
hood spring at the rear of the
dishwasher.
6. Refer to Figure D at left and note
there are two hoses and two
connection points shown. The
hoses are different lengths and it
will not be possible to make both
connections if the hoses are
reversed.
D
C
From outlet
of vacuum
breaker to
nal rinse
piping
From
outlet of
condensate
coil to inlet
of line
strainer
From inlet
of vacuum
breaker to
outlet of
booster
(continued on next page)
