Champion DH5000T Series User Manual

72
Temperature Display Adjustment - (For Service Technicians Only)
5. There are two displays on the front of the display board. The left displays the wash tank
temperaturetherightdisplaysthenalrinsewatertemperature.
6. The rear of the display board contains the adjustment buttons and the display board
connectors. The adjustment buttons are TEST A, TEST B, CHECK and RESET.
7. There is a temperature selector switch to change the display units for ºF or ºC.
Adjusting the Temperature Displays (continued)
Temperature Display Adjustment - For Service Technicians Only (continued)
Test A
Test B
Check
Button
Rinse Switch
Connector
Thermister
Connector
Reset
SW4
SW5
SW1
Neutral24VAC
P/N 114489
Revision 1
CF
Units
Wash Display Rinse Display

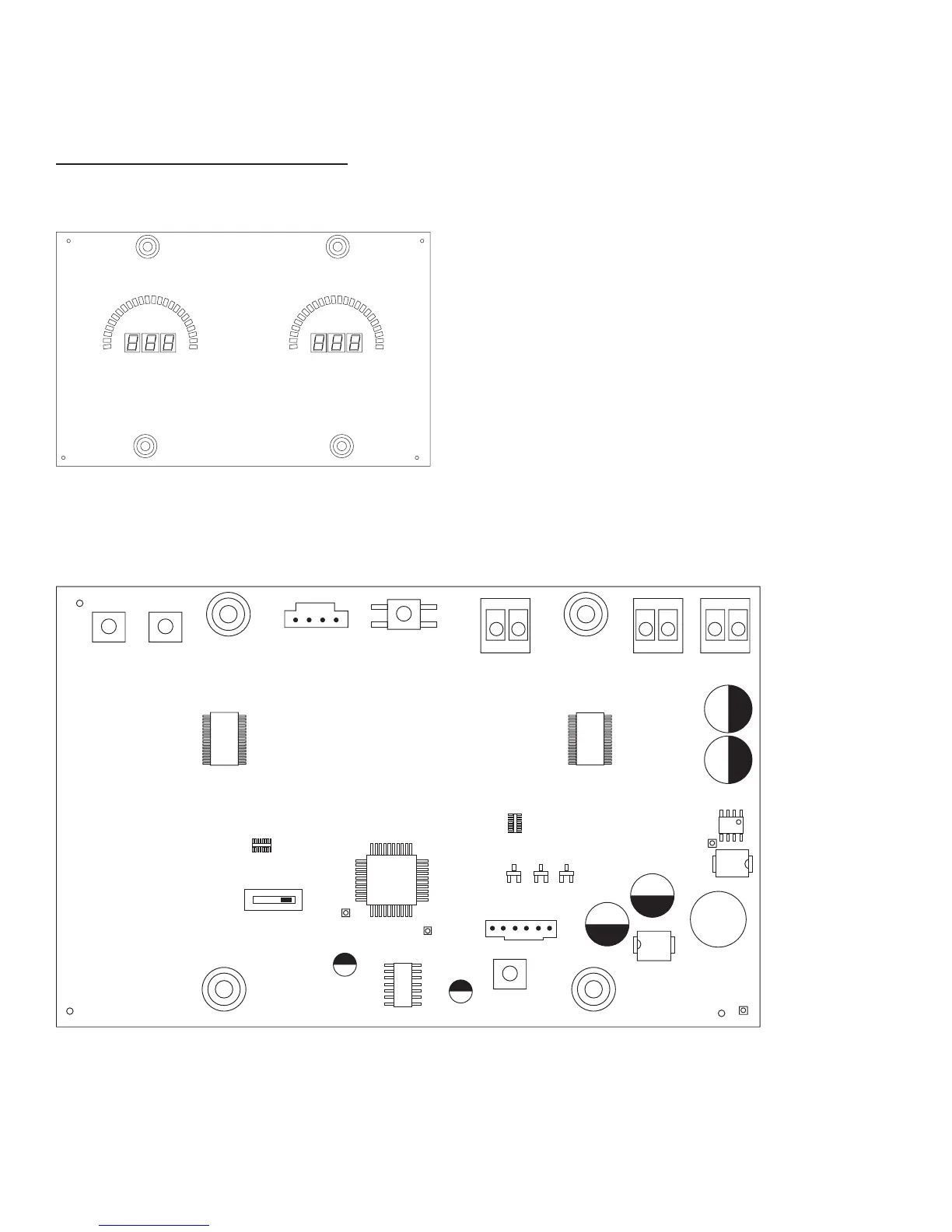

Front View of Temperature Display Board
Rear View of Temperature Display Board
