80
The Direct Vent Fan Electrical Control Box is shipped
prewired to the dishwasher and stowed in the left
rear corner of the machine. Mounting holes and
fasteners are provided to mount the control box on
the left side of the machine. A 12 ft. [3.7m] vent fan
cable is prewired to the control box. (See Figure G).
To Install the Electrical Control Box:
P/N 115109 - Direct Vent Option Installation Instructions
Installing the Direct Vent Fan Electrical Control Box on the left-hand side
of the DH5000T
1. The electrical control box must be
installed before the dishwasher is
permanently placed and before the
dishwasher tables are connected to the
dishwasher.

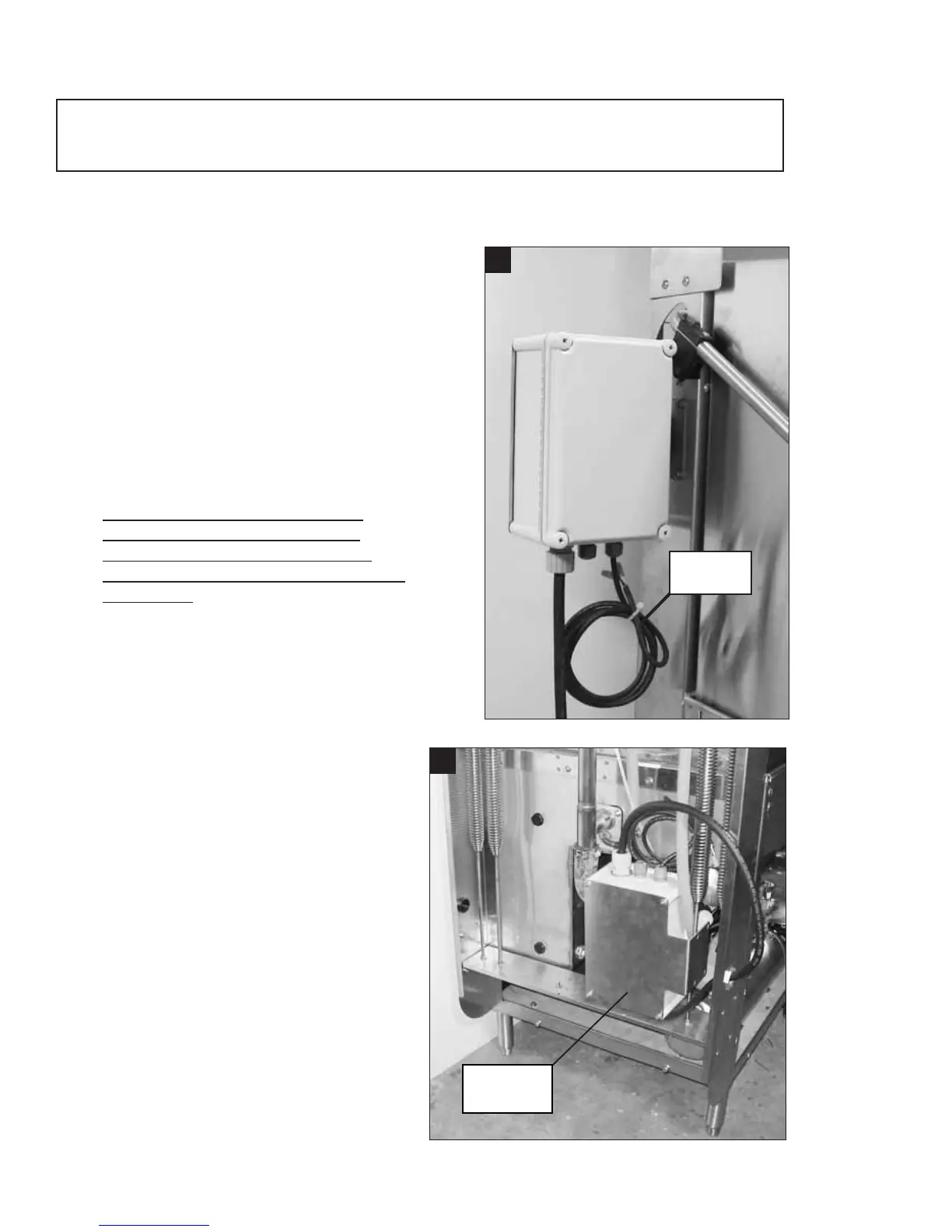

2. Refer to Figure G at right. The photo
shows the electrical control box mounted
on the left side of the dishwasher
approximately 46" [1.2 m] above the
nishedoor.
3. Note the 12 ft. [3.7 m] vent fan power
cable for the Champion supplied vent
fan has been prewired to the control
box. This cable is provided to connect
120VAC power to the vent fan.
4. Refer to Figure H at right. The photo
shows the storage location for the
electrical control box during shipping.
5. Carefully lift the control box and
mounting bracket assembly from the
rear of the dishwasher and place it on
theoorontheleft-handsideofthe
machine.
G
CONTROL
BOX
VENT FAN
CABLE
H
CONTROL
BOX
! ATTENTION !
The Direct Vent Fan Control box can be wall-mounted using a Wall Mount Kit, P/N 900958.
See the last page of this manual for further instructions.
