Chandler Systems D15 - Page 30

A
30

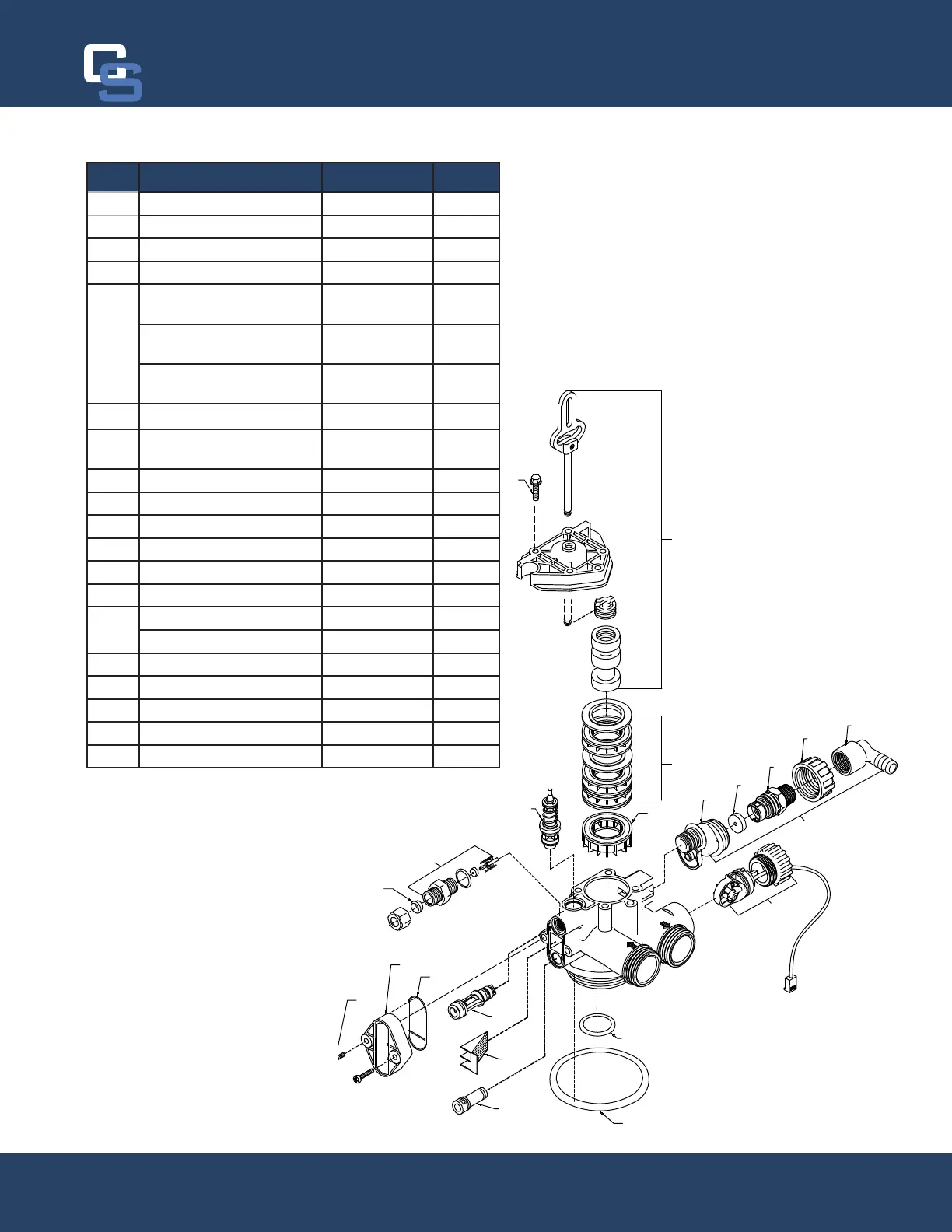

SOFTENER VALVE
REF DESCRIPTION PART NO. QTY
1 Piston Assembly 20001X231 1
2 10-24 X 3/4” Screw SST 20001X001 3
3 Seal and Spacer Kit 20561X253 1
4 End Spacer 20001X234 1
5
Flow Control Button 1.5
GPM
20251X266 1
Flow Control Button 2.0
GPM
20251X267 1
Flow Control Button 2.4
GPM
20251X268 1
6A DLFC Assy. 20017X251 1
7 90 Degree Hose Barb
Elbow
20017X266 1
8 Brine Valve 20561X225 1
9 BLFC Assembly 20001X228 1
10 BLFC Ferrule 3/8” 20251X305 1
11 10-24 X 3/4” Screw SST 20001X001 2
12 Injector Cap 20001X223 1
13 Injector Cap Seal 20001X224 1
14
Injector, White 20017x219 1
Injector, Blue 20017x220 1
15 Injection Screen 20001X222 1
16 Plug 20001X217 1
17 Tank. O-Ring 20015X043 1
18 Dist. O-Ring 20561X204 1
19 Meter Assembly 20017X203 1
2
8
1
3
12
13
11
15
16
17
18
9
10
4
5
14
19
7
6
6
6
6A
