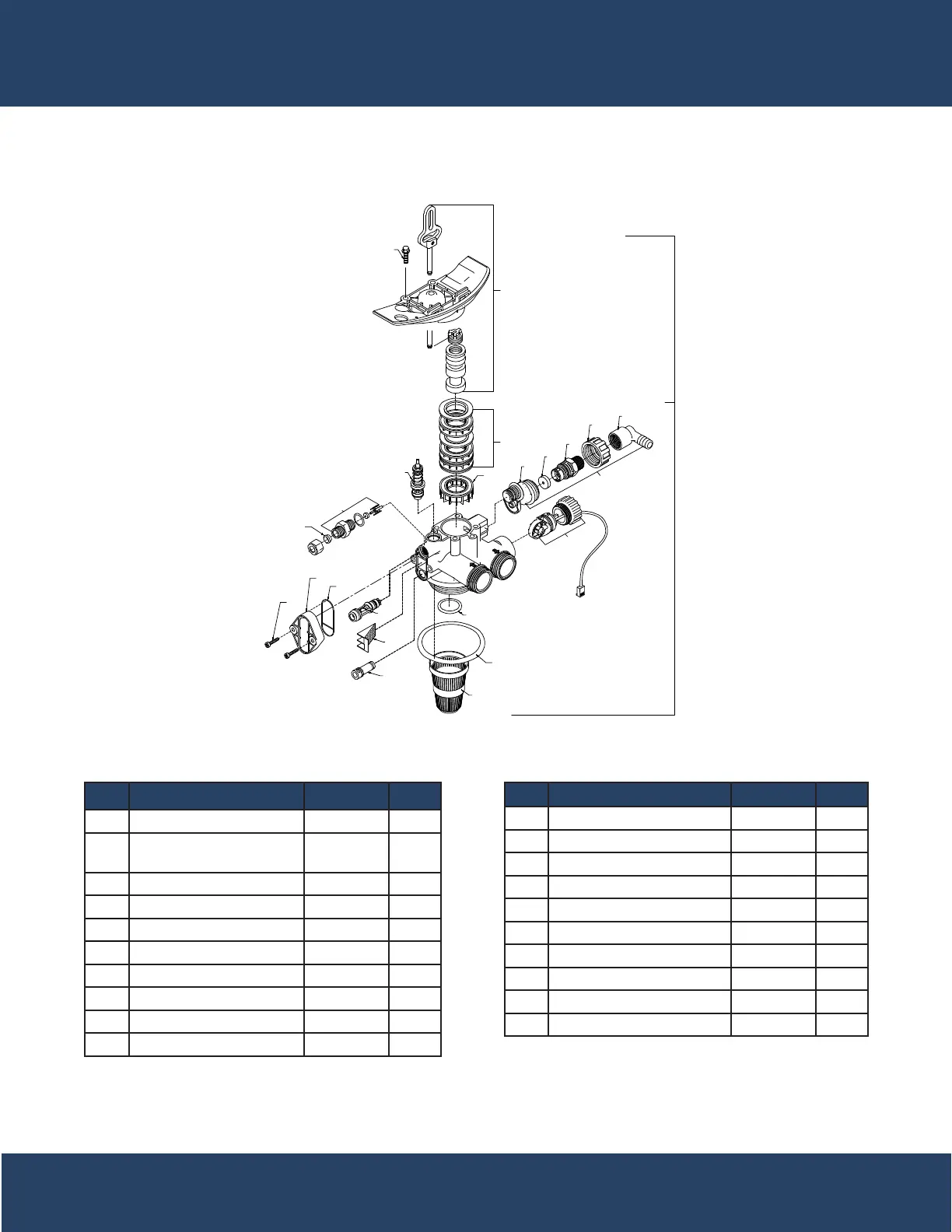

CABINET SOFTENER BODY ASSEMBLY
2
1
3
12
13
11
18
19
21/22
17
4
20
8
15
16
9
10
14
5
7
6
6
6
6A
REF DESCRIPTION PART NO QTY
1 Piston Assembly 20001X231 1
2 Screw
20001X001
2
3 Seal & Spacer Kit 20561X253 1
4 Bottom Spacer 20001X234 1
5 DLFC Button 2.0 20251X267 1
6A Flow Control Housing 20017X251 1
7 Drain Elbow 20017X266 1
8 Brine Valve 20561X225 1
9 BLFC Assy 20001X228 1
10 Brine Line Ferrule 20251X305 1
REF DESCRIPTION PART NO QTY
11 Injector Cap Screw 20001X226 2
12 Injector Cap 20001X223 1
13 Injector Seal 20001X224 1
14 Injector - White 20017X219 1
15 Screen 20001X222 1
16 Plug 20001X217 1
17 Basket 33000X003 1
18 Valve O-Ring 20015X043 1
19 Dist. O-Ring 20561X204 1
20 Meter Assy 20017X203 1
