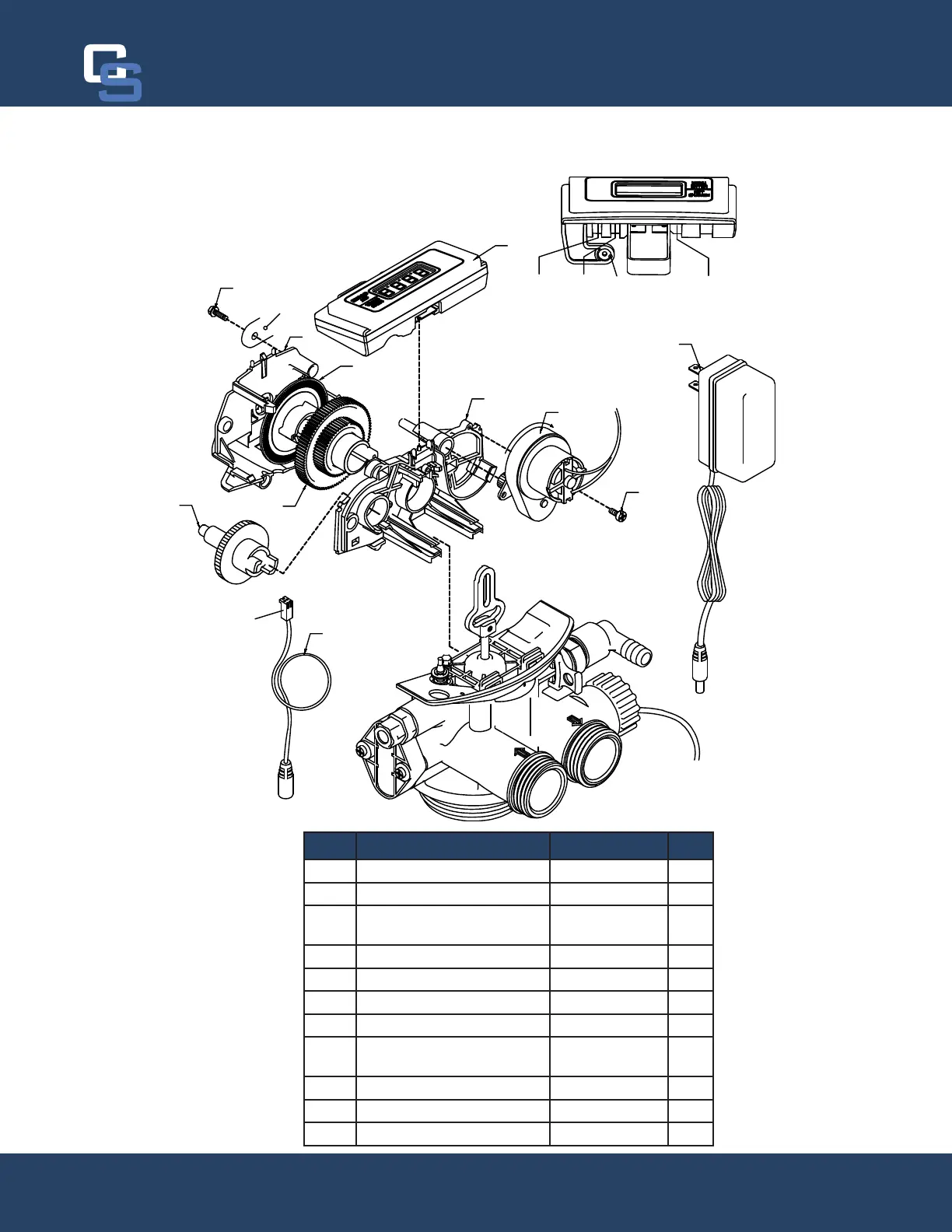

CABINET SOFTENER POWER HEAD ASSEMBLY
7
1
2
4
5
Motor
Power Flow Meter
A
A
3
6
8
No. Part No.
Description Qty.
1
20016X002
RS1 FRONT PLATE 1
2
20001X007
ENCODER WHEEL 1
3 20016X101
CABINET LEGACY BOARD ASSEMBLY 1
4
21001X120
MAIN GEAR 1
5 20016X002
RS1 BACK PLATE 1
6 20016X006
SIGNATURE MOTOR 1
7 20001X122 BRINE CAM 1
8 SC2
SC2, MTR SCREW
1
9 SC10 SC10 SCREW 1
10 20001X127 12V POWER SUPPLY 1
11 20016X108 20" POWER CORD 1
9
Power
Flow Meter
Motor
10
11
REF DESCRIPTION PART NO QTY
1 Front Plate 20016X001 1
2 Encoder Wheel 20001X007 1
3 Cabinet Legacy Board As-
sembly
20016X101 1
4 Main Gear 21001X120 1
5 Back Plate 20016X002 1
6 Motor Assy. 20016X006 1
7 Brine Cam 20001X122 1
8 SC2 SC2, Motor
Screw
1
9 SC10 SC10 Screw 1
10 12V Power Supply 20001X125 1
11 Power Cord MTR-CORD-BT 1
