ASSEMBLY
17
1

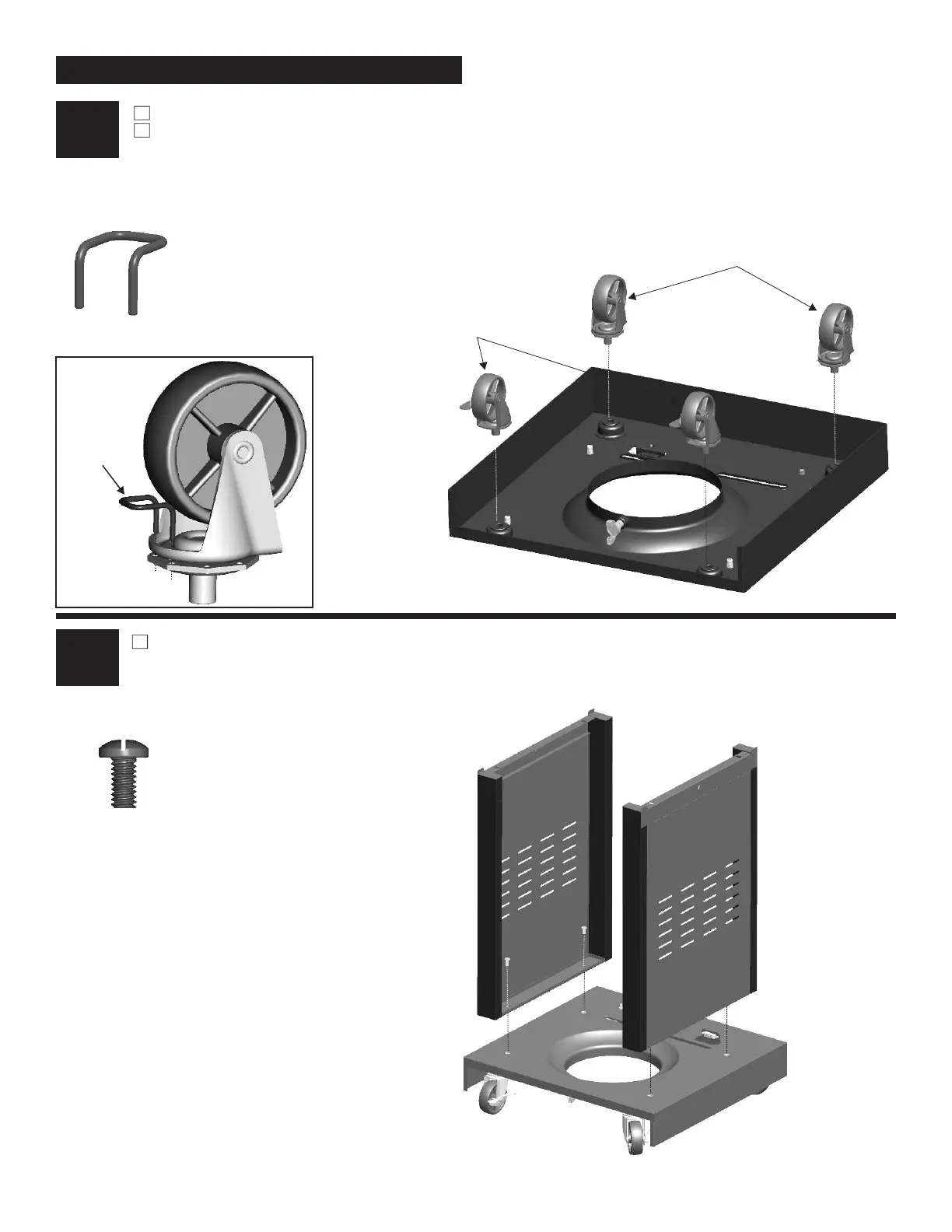

Place bottom shelf upside down.
Insert Caster Pin into the caster mounting plate to lock it in place, shown A. Spin the caster clockwise into
the threads on the bottom shelf until secure. Remove the Caster Pin and repeat for remaining casters.
Make sure the two locking casters are secured at the rear and the non-locking casters are secured at the
front. After all 4 casters are secure remove the Caster Pin and save for future maintenance.
1
2
Place cart side frames as shown. Attach to bottom shelf with 1/4-20x1/2’’ machine screws.
Caster Pin
Locking Caster
Fixed Caster
1/4-20X1/2''
Machine Screw
Qty. 4
Front
Rear
Caster Pin
A
To Next Page
