Char-Broil 463650413 - Assembly: Door and Brace Installation; Door Brace and Back Rail Attachment; Door Handle and Hinge Assembly

Upper Door Brace
Back Rail
18
3

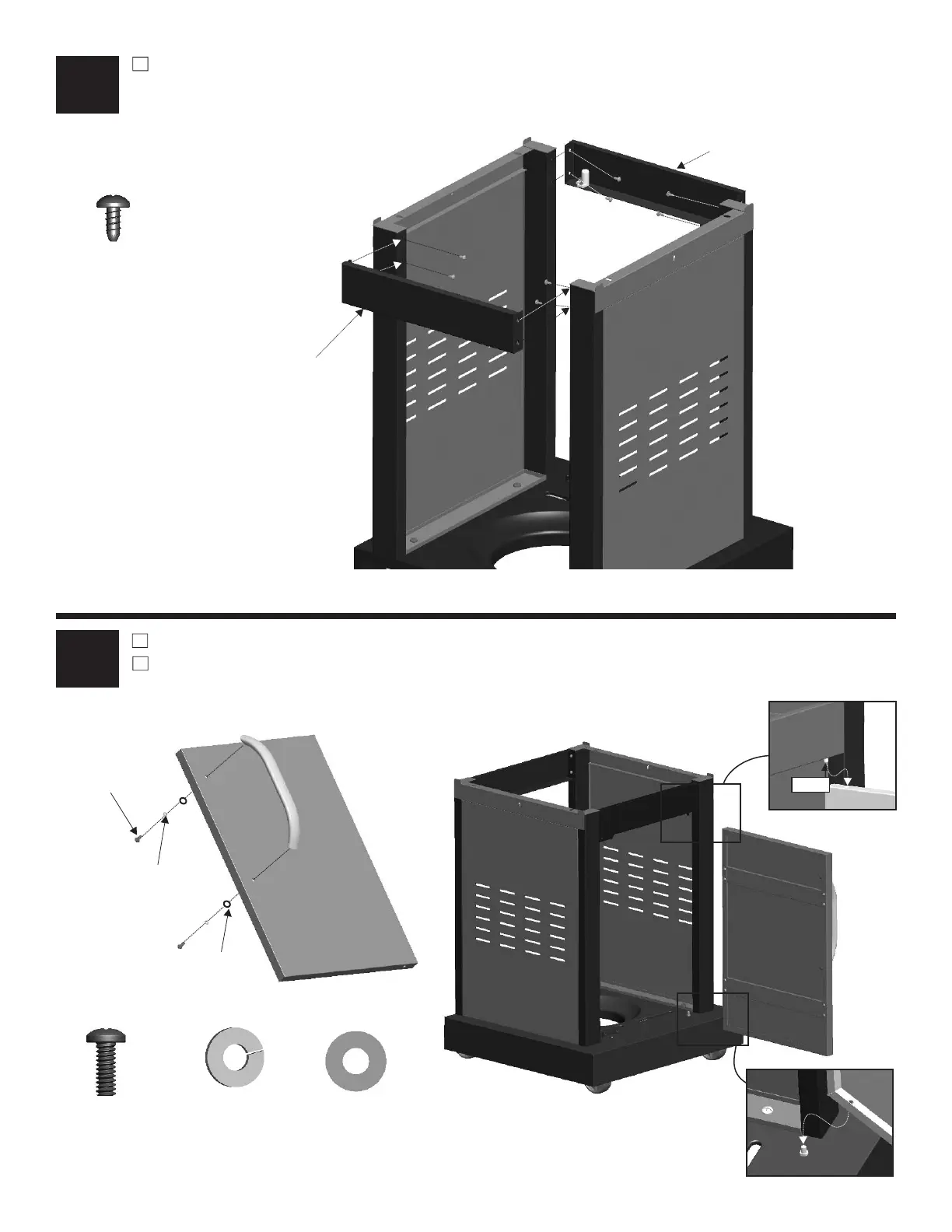

Attach upper door brace and back rail to cart side frames with #8x3/8” sheet metal screws.
4
Attach handle to door with #10-24X3/8˝ machine screws, 5mm lock washers and 5mm flat washers.
Insert hinge pin on bottom shelf into hole in door. Press upper hinge pin in upper door brace, align hinge hole
on top of door, and release hinge pin into door.
#8x3/8’’
Sheet Metal Screw
Qty. 8
5mm
Lock Washer
Qty. 2
5mm
Flat Washer
Qty. 2
#10-24X3/8˝
Machine Screw
Qty. 2
#10-24X3/8˝
Machine Screw
5mm Lock Washer
5mm Flat Washer
Front
Rear
Press
