Char-Broil 463650413 - Assembly: Grill Head and Shelves; Grill Head Installation Steps; Side Shelf Assembly and Folding

19
5

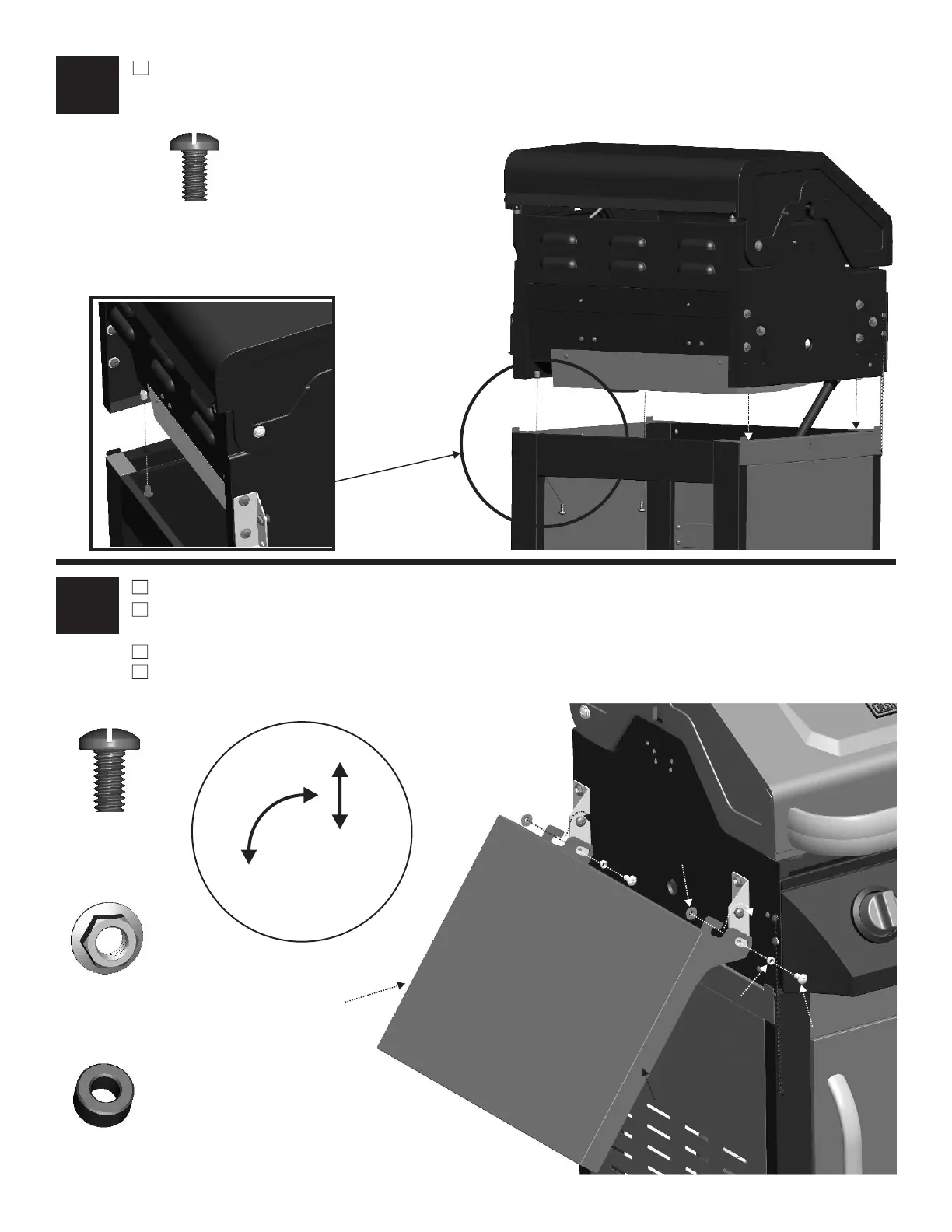

Carefully lower the gill head onto the cart. Make sure the regulator hose is hanging inside the cart.
Secure with 1/4-20X1/2'' machine screws as shown.
6
Hang side shelf assembly onto the pre-installed screws and bushings on side shelf brackets as shown.
Insert 1/4-20X1/2'' Machine Screws and bushings through side shelf assembly and side shelf brackets.
Secure with 1/4-20 flange nuts as shown.
Repeat above steps for another side.
To fold up the side shelf assembly, pull side shelf upward and rotate toward cart side frame. To unfold, do in
reverse.
1/4-20X1/2''
Machine Screw
Qty. 4
1/4-20X1/2''
Machine Screw
Qty. 4
1/4-20
Flange Nut
Qty. 4
Bushing
Qty. 4
1/4-20X1/2''
Machine Screw
1/4-20
Flange Nut
Bushing
Rotate
Up
Down
Fold / unfold
side shelf
Front Side,
TM
No Gear Trax Holes
Rear Side,
TM
With Gear Trax Holes
