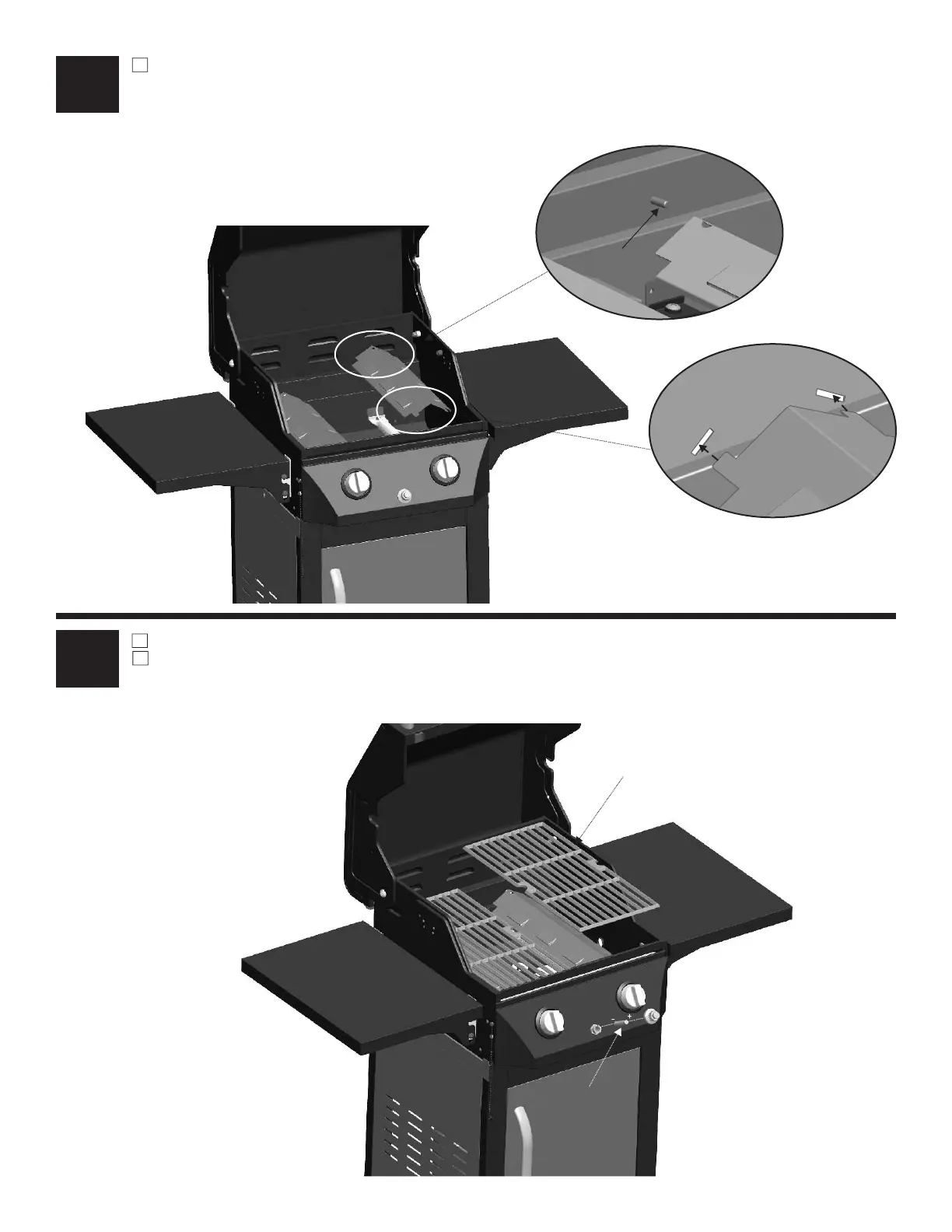

Place heat tents over burners by inserting tabs into slots in front of firebox. Opposite ends of heat tents rest
on pins in back of firebox.
8
Place cooking grates onto grate rests.
Unscrew ignitor cap and place AAA battery into ignitor slot with positive end (+) facing outward. Replace
ignitor cap onto ignitor.
Heat Tent
Back of Firebox
Pin
Heat Tent
Front of Firebox
AAA Battery
Cooking Grate
