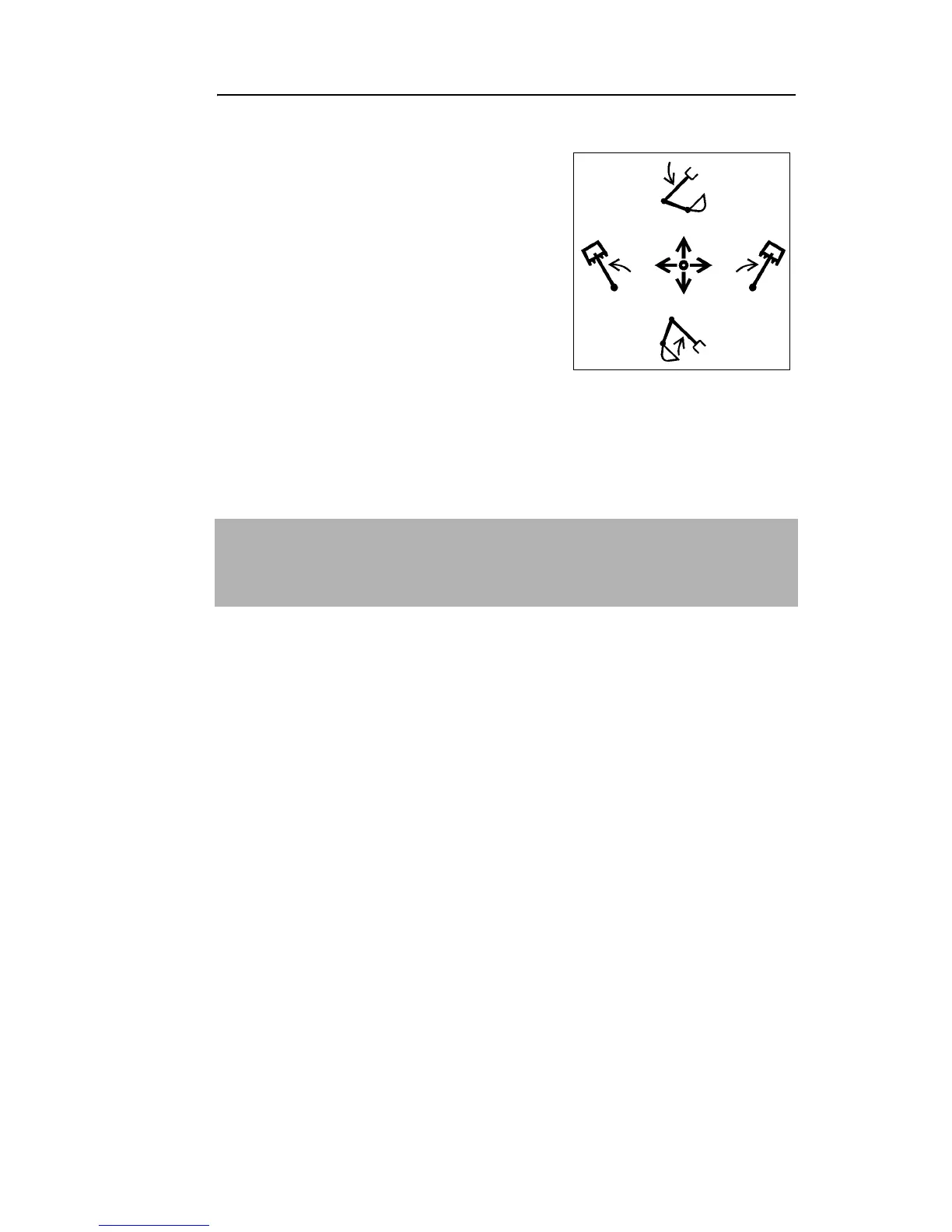

Boom/Swing Control
This control moves boom left or
right and raises or lowers boom.
• Move left to swing left.
• Move right to swing right.
• Pull to raise.
• Push to lower.
Control can perform more than one action at a time. Using them
together, operator can “feather,” or combine, backhoe operations.
NOTICE: Do not operate backhoe with control in the stowed
(upright) position. Component failure could occur. Return
control to stowed position when finished operating.
