Charles RT115 Tier 3 - H952 COMBO

RT115 Tier 3- SPECIFICATIONS
H952 COMBO
232 RT115 Tier 3 - SPECIFICATIONS
H952 COMBO
H952 COMBO
Trencher

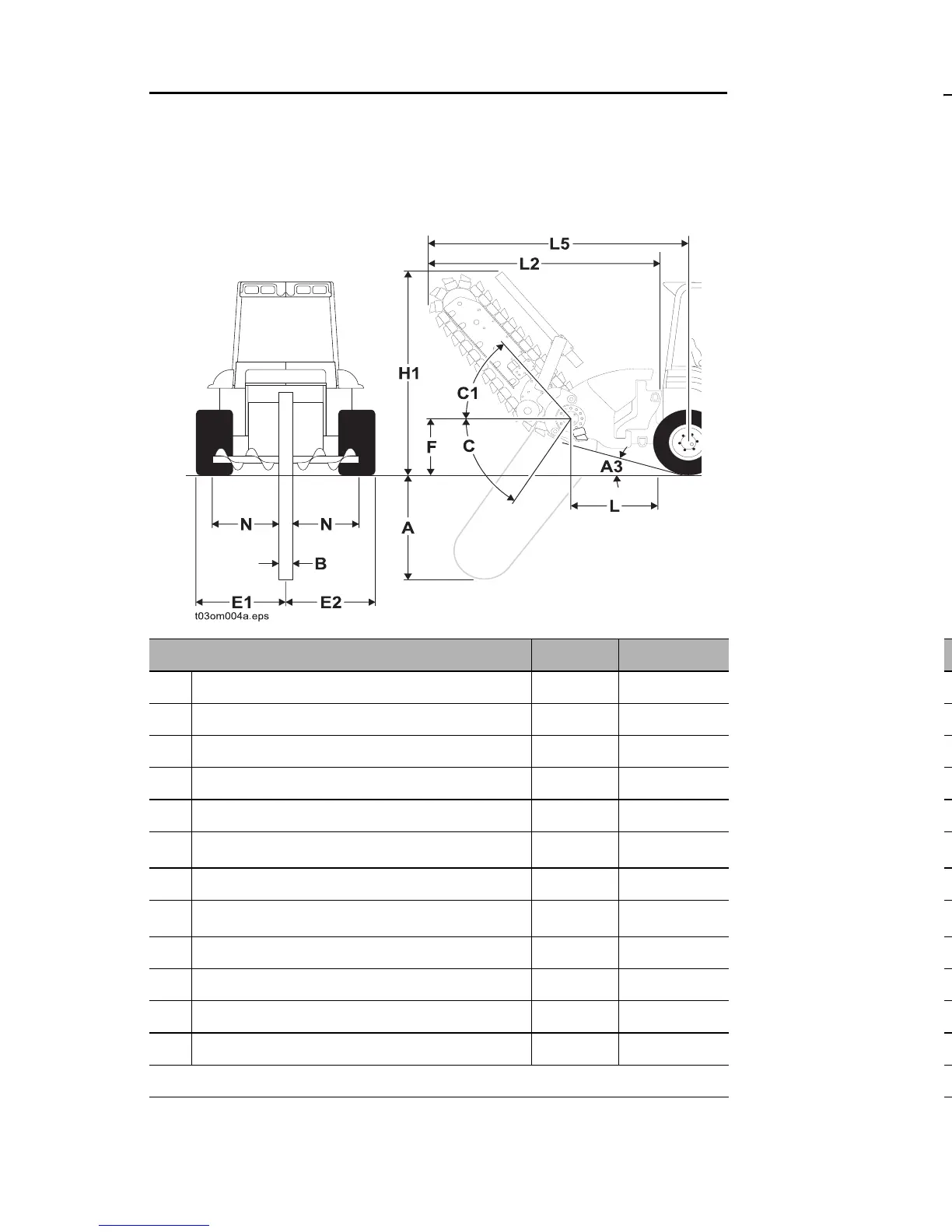

Dimensions U.S. Metric
A Trench depth, maximum 70 in 1.8 m
Trench width 6-12 in 150-305 mm
C1 Boom travel up 44° 44°
C Boom travel down 60° 60°
F Headshaft height, digging chain 31 in 790 mm
L
2
Transport length 126 in 3.2 m
D Transport height 126 in 3.2 m
A
3
Angle of departure 22° 22°
Center of trench to outside edge, left* 8 in 190 mm
Center of trench to outside edge, right 67 in 1.7 m
Spoil discharge reach minimum 19 in 480 mm
Headshaft overhang 40 in 1.0 m
*Left edge of machine is defined as outside of digging chain guard
H952 COMBO
Trencher
Dimensions U.S. Metric
A Trench depth, maximum 70 in 1.8 m
Trench width 6-12 in 150-305 mm
C1 Boom travel up 44° 44°
C Boom travel down 60° 60°
F Headshaft height, digging chain 31 in 790 mm
L
2
Transport length 126 in 3.2 m
D Transport height 126 in 3.2 m
A
3
Angle of departure 22° 22°
Center of trench to outside edge, left* 8 in 190 mm
Center of trench to outside edge, right 67 in 1.7 m
Spoil discharge reach minimum 19 in 480 mm
Headshaft overhang 40 in 1.0 m
*Left edge of machine is defined as outside of digging chain guard
