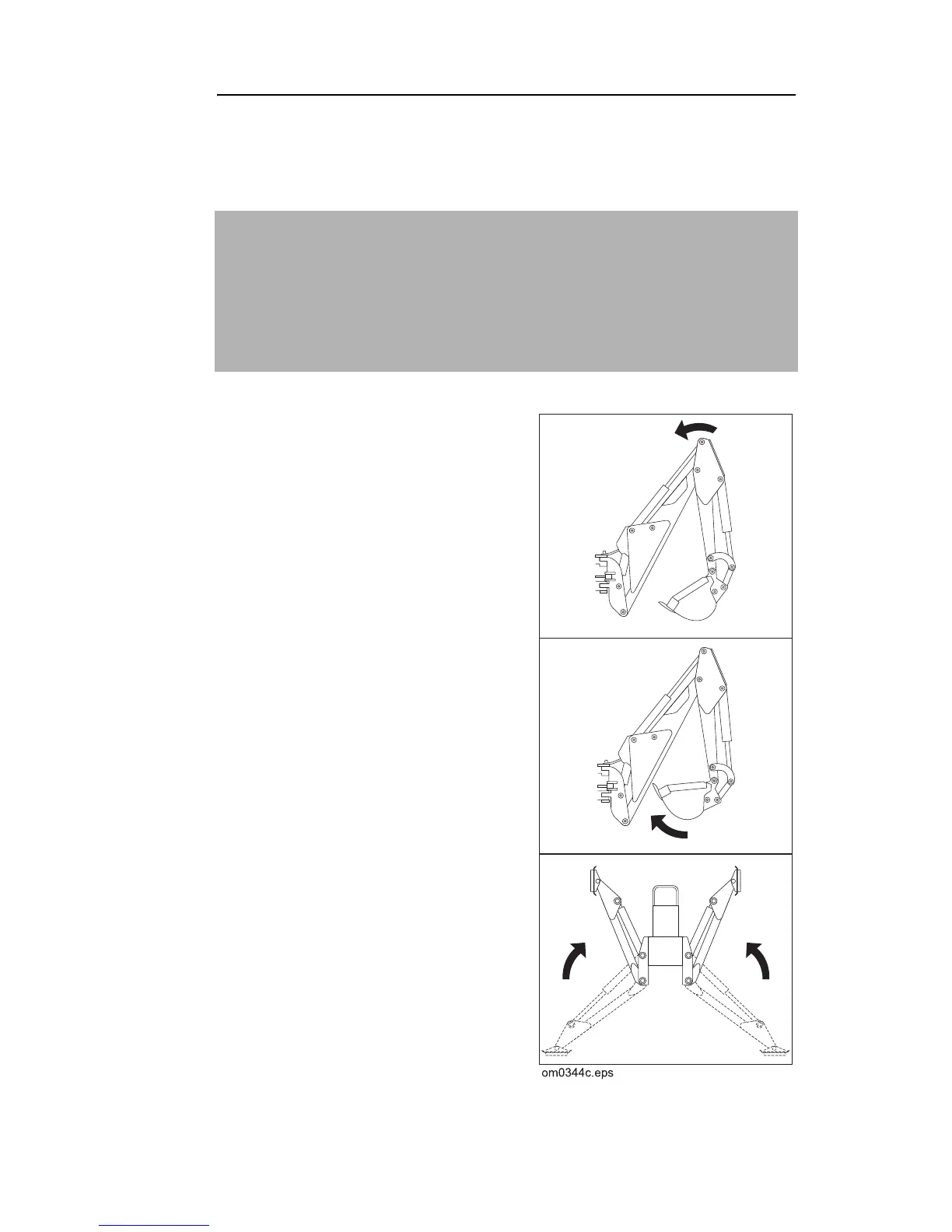

1. When hole or trench is com-
plete, lift boom while keeping
dipper pointed at ground.
2. Curl bucket closed and move
dipper fully toward boom.
3. Lift boom to highest position
and latch stow lock.
4. Lower boom slightly to to
engage lock.
5. Engage swing lock. See
“Swing Lock Pin” earlier in
this chapter.
6. Raise stabilizers.
7. Return remote throttle to low
idle.
NOTICE: Before returning to tractor operator station:
• raise stabilizers
• return remote throttle to low idle
• stow and lock boom
