Charles RT115 Tier 3 - H932 PLOW

RT115 Tier 3- SPECIFICATIONS
H932 PLOW
230 RT115 Tier 3 - SPECIFICATIONS
H932 PLOW
H932 PLOW
*Suggested maximum. Plow blade used will be determined by job requirements and soil conditions.

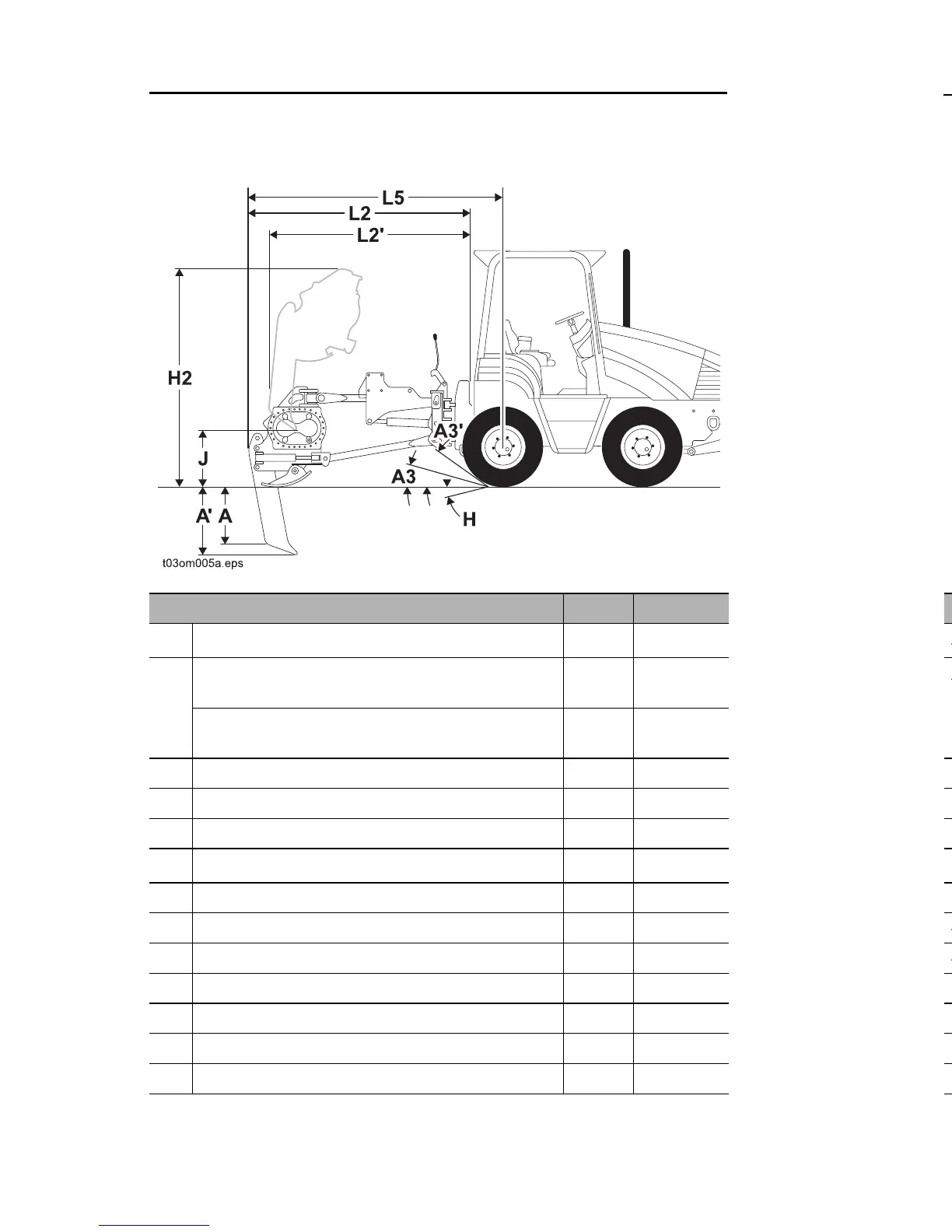

Dimensions U.S. Metric
A
3’
Angle of departure, transport, no blade 30° 30°
A
3
Angle of departure, transport, 24-in (610-mm)
blade
27° 27°
Angle of departure, transport, 30-in (760-mm)
blade
23° 23°
H Angle of depression, plow max. 10° 10°
H2 Height transport 96 in 2.4 m
L2 Attachment length, fully lowered, no blade 102 in 2.6 m
L
2
’
Attachment length, fully raised, no blade 69 in 1.7 m
J Blade ground clearance, 30-in (760-mm) blade 29 in 740 mm
A Cover depth* 36 in 915 mm
A’ Penetration* 40 in 1.0 m
Plow swing angle 43° 43°
Inclusive blade steer angle 89° 89°
Center of plow to outside edge of machine, left 40 in 1.0 m
Center of plow to outside edge of machine, right 42 in 1.1 m
