RT115 Tier 3- SPECIFICATIONS
H910 TRENCHER
226 RT115 Tier 3 - SPECIFICATIONS
H910 TRENCHER
H910 TRENCHER

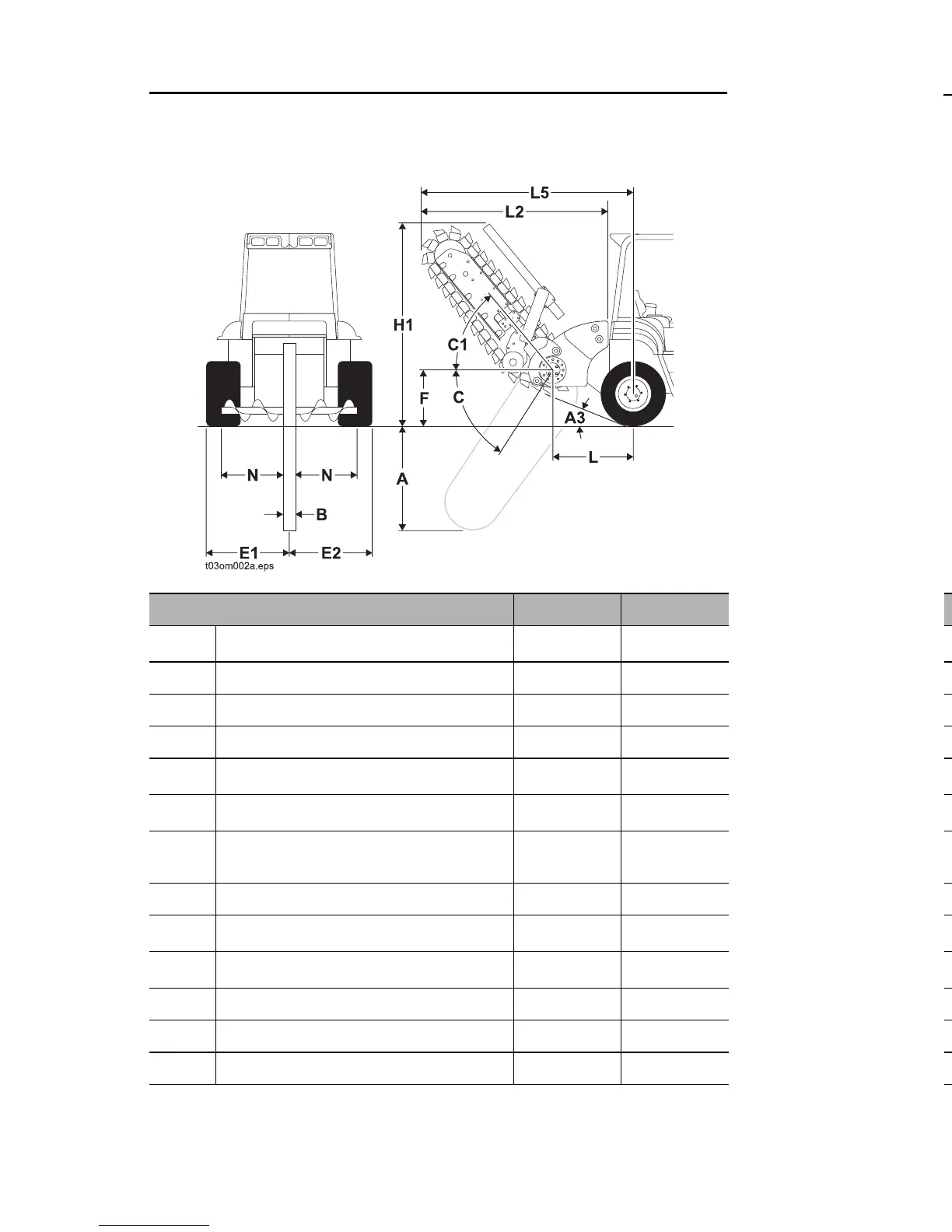

Dimensions U.S. Metric
A
3
Angle of departure 28° 28°
A Trench depth, maximum 97 in 2.46 m
B Trench width, maximum 24 in 610 mm
C Boom travel down 65° 65°
C
1
Boom travel up 50° 50°
E
1
Centerline of trench to outside edge, left 41 in 1.0 m
E
2
Centerline of trench to outside edge,
right
32 in 810 mm
F Headshaft height, digging chain 32 in 810 mm
H
1
Transport height 124 in 3.2 m
L
2
Transport length 112 in 2.8 m
L Headshaft overhang 40 in 1.0 m
N Soil discharge reach 33 in 840 mm
Attachment weight 1750 lb 794 kg
H910 TRENCHER
Dimensions U.S. Metric
A
3
Angle of departure 28° 28°
A Trench depth, maximum 97 in 2.46 m
B Trench width, maximum 24 in 610 mm
C Boom travel down 65° 65°
C
1
Boom travel up 50° 50°
E
1
Centerline of trench to outside edge, left 41 in 1.0 m
E
2
Centerline of trench to outside edge,
right
32 in 810 mm
F Headshaft height, digging chain 32 in 810 mm
H
1
Transport height 124 in 3.2 m
L
2
Transport length 112 in 2.8 m
L Headshaft overhang 40 in 1.0 m
N Soil discharge reach 33 in 840 mm
Attachment weight 1750 lb 794 kg
