Charles RT115 Tier 3 - H911 TRENCHER

RT115 Tier 3- SPECIFICATIONS
H911 TRENCHER
228 RT115 Tier 3 - SPECIFICATIONS
H911 TRENCHER
H911 TRENCHER

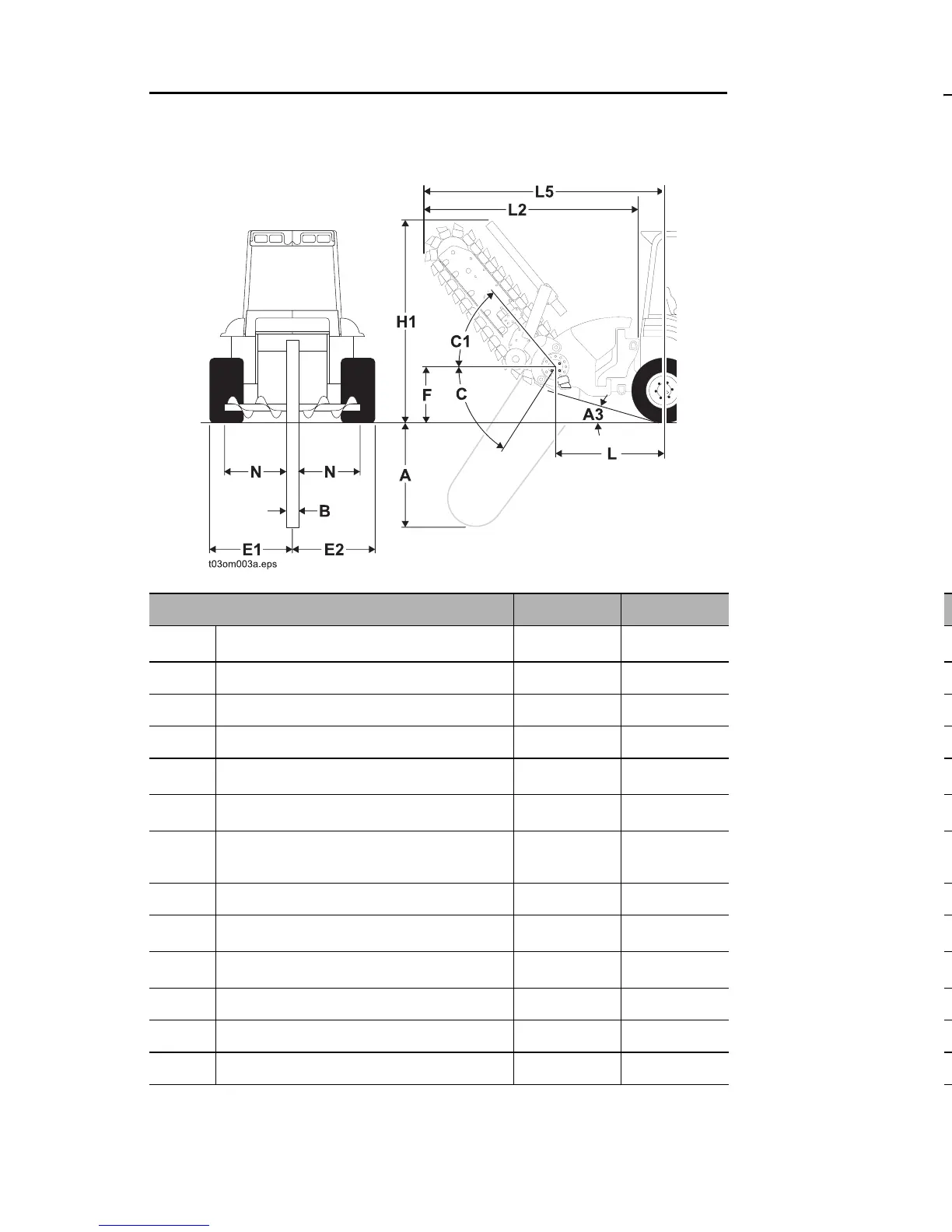

Dimensions U.S. Metric
A
3
Angle of departure 25° 25°
A Trench depth, maximum 94 in 2.39 m
B Trench width, maximum 24 in 610 mm
C Boom travel down 65° 65°
C
1
Boom travel up 50° 50°
E
1
Centerline of trench to outside edge, left 25 in 635 mm
E
2
Centerline of trench to outside edge,
right
13.5 in 340 mm
F Headshaft height, digging chain 35 in 890 mm
H
1
Transport height 126 in 3.2 m
L
2
Transport length 126 in 3.2 m
L Headshaft overhang 54 in 1.4 m
N Soil discharge reach 33 in 840 mm
Attachment weight 2350 lb 1066 kg
H911 TRENCHER
Dimensions U.S. Metric
A
3
Angle of departure 25° 25°
A Trench depth, maximum 94 in 2.39 m
B Trench width, maximum 24 in 610 mm
C Boom travel down 65° 65°
C
1
Boom travel up 50° 50°
E
1
Centerline of trench to outside edge, left 25 in 635 mm
E
2
Centerline of trench to outside edge,
right
13.5 in 340 mm
F Headshaft height, digging chain 35 in 890 mm
H
1
Transport height 126 in 3.2 m
L
2
Transport length 126 in 3.2 m
L Headshaft overhang 54 in 1.4 m
N Soil discharge reach 33 in 840 mm
Attachment weight 2350 lb 1066 kg
