RT115 Tier 3- CONTROLS
CONTROL CONSOLE DESCRIPTIONS
16 RT115 Tier 3 - CONTROLS
CONTROL CONSOLE DESCRIPTIONS

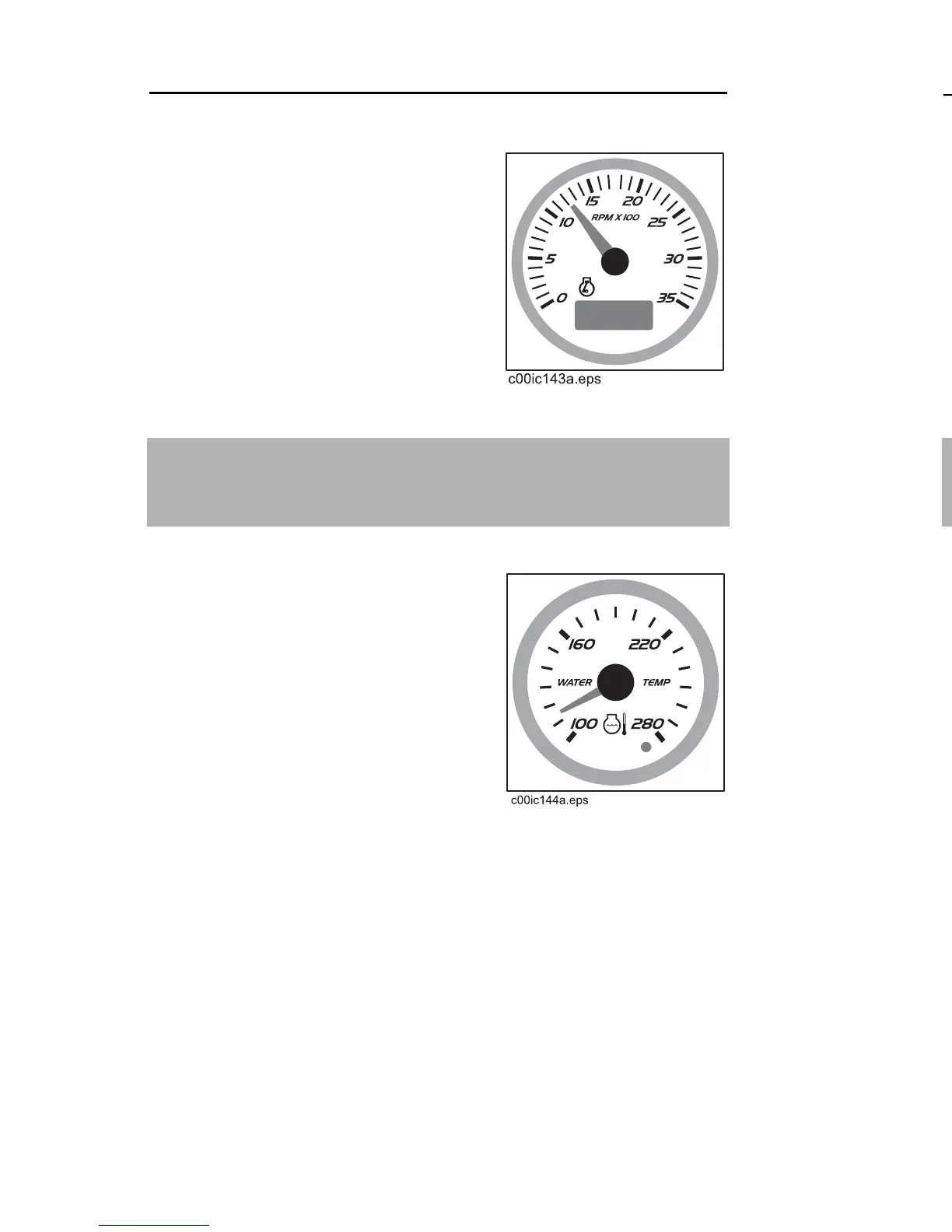

Tachometer/Hourmeter/
Diagnostic Gauge
This gauge displays engine rpm,
diagnostic codes, and records
engine operating time.
To view information, press the
selection switch.
Coolant Temperature Gauge
This gauge displays cooling
system coolant temperature.
Normal coolant temperature is
180°-220° F (82°-104° C).
Alarm will sound if coolant
temperature is high.
If temperature is high:
• Turn off engine and let cool.
• Check cooling system for low
fluid level, seal damage, or
leaks.
IMPORTANT: For more information about the diagnostic
system and trouble codes see "Tier 3 Service Overview" in
SERVICE.
