Charles RT115 Tier 3 - Page 234

RT115 Tier 3- SPECIFICATIONS
H952 COMBO
234 RT115 Tier 3 - SPECIFICATIONS
H952 COMBO
Plow
* Suggested maximum. Plow blade used will be determined by job requirements
and soil conditions.

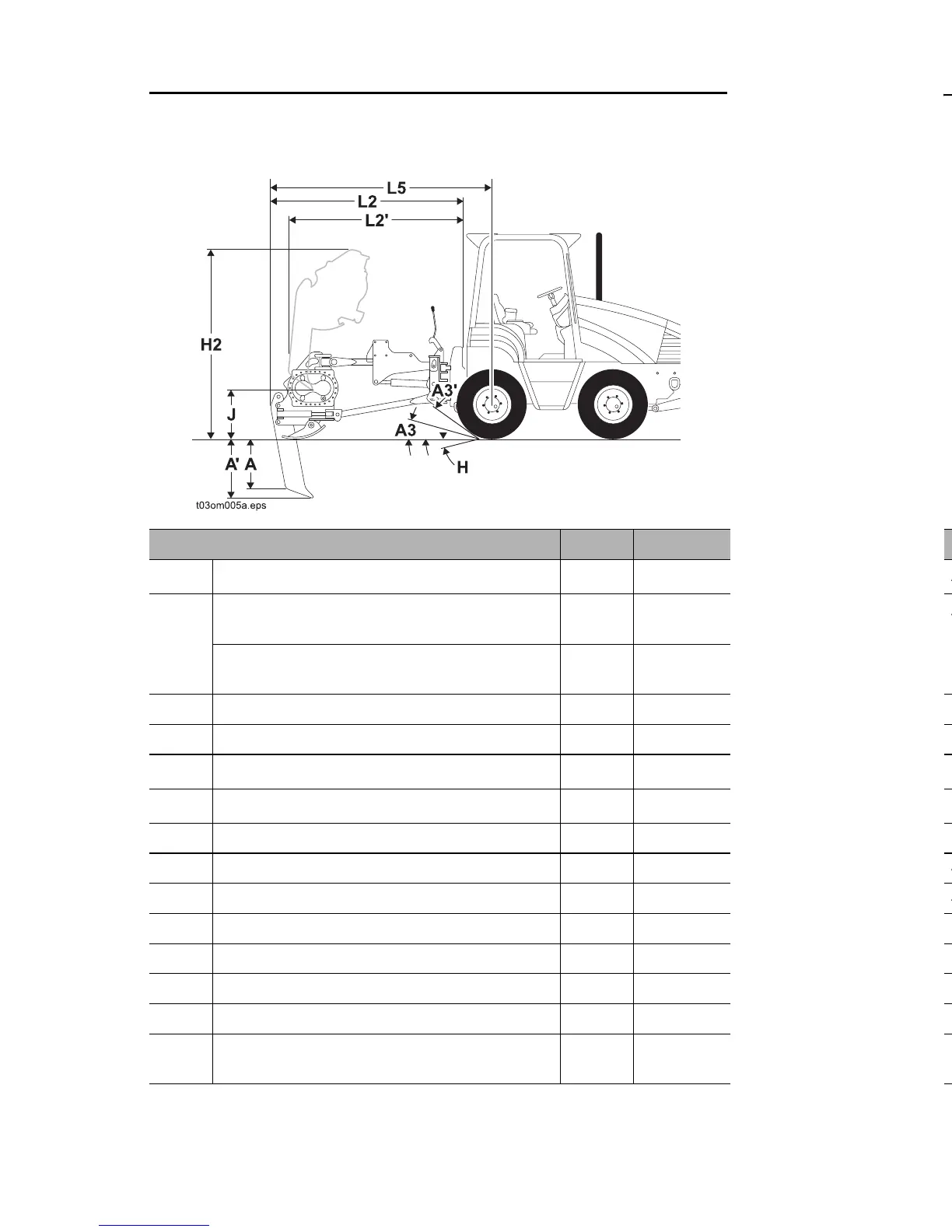

Dimensions U.S. Metric
A
3
’
Angle of departure, transport, no blade 30° 30°
A
3
Angle of departure, transport, 24-in (610-mm)
blade
27° 27°
Angle of departure, transport, 30-in (760-mm)
blade
22° 22°
H Angle of depression, plow max. 10° 10°
H2 Height transport 96 in 2.4 m
L
2
Attachment length, fully lowered, no blade 103 in 2.6 m
L
2
’
Attachment length, fully raised, no blade 70 in 1.8 m
J Blade ground clearance, 30-in (760-mm) blade 29 in 740 mm
A Cover depth* 36 in 915 mm
A’ Penetration* 40 in 1.0 m
Plow swing angle, left 0° 0°
Plow swing angle, right 38° 38°
Inclusive blade steer angle 89° 89°
Center of plow to outside edge of machine, left 45 in 1.1 m
Center of plow to outside edge of machine,
right
37 in 940 mm
