Charles RT115 Tier 3 - Page 30

RT115 Tier 3- CONTROLS
DRIVE POSITION DESCRIPTIONS
30 RT115 Tier 3 - CONTROLS
DRIVE POSITION DESCRIPTIONS

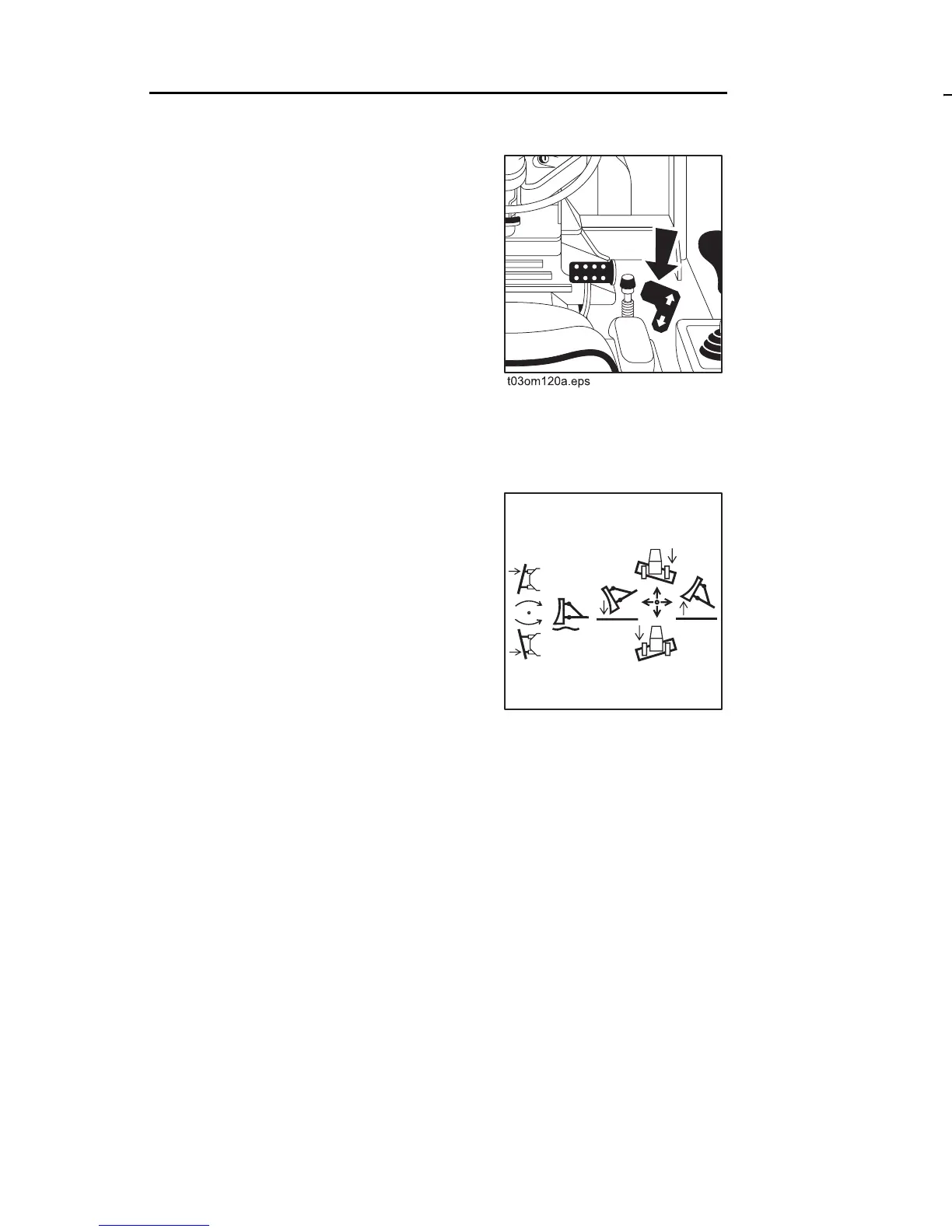

Ground Drive Foot Control
This pedal controls forward or
backward tractor movement.
• Press top to increase forward
speed.
• Press bottom increase
reverse speed.
• Release to reduce speed in
either direction.
Backfill Blade Control
This lever raises, lowers, tilts and
angles backfill blade.
• Move forward to lower blade.
• Move forward to end to float.
• Move backward to raise
blade.
• Move right to tilt right side of
blade down.
• Move left to tilt left side of blade down.
• Twist left to angle blade left.
• Twist right to angle blade right.
c00ic067a.eps
Ground Drive Foot Control
This pedal controls forward or
backward tractor movement.
• Press top to increase forward
speed.
• Press bottom increase
reverse speed.
• Release to reduce speed in
either direction.
Backfill Blade Control
This lever raises, lowers, tilts and
angles backfill blade.
• Move forward to lower blade.
• Move forward to end to float.
• Move backward to raise
blade.
• Move right to tilt right side of
blade down.
• Move left to tilt left side of blade down.
• Twist left to angle blade left.
• Twist right to angle blade right.
c00ic067a.eps
