RT115 Tier 3- TRENCHER ATTACHMENT
TRENCHER CONTROL DESCRIPTIONS
84 RT115 Tier 3 - TRENCHER ATTACHMENT
TRENCHER CONTROL DESCRIPTIONS

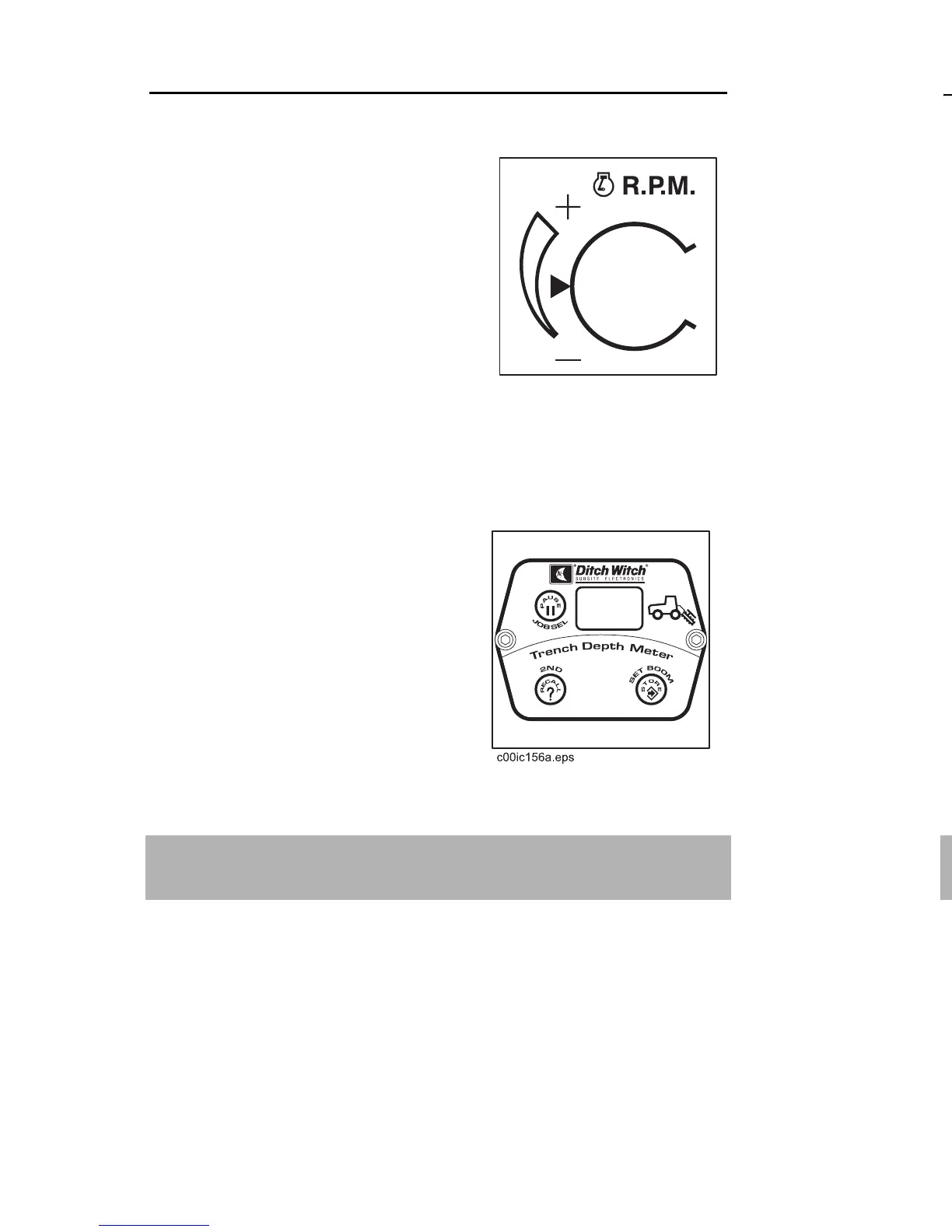

Cruise Control RPM Control
This optional control adjusts
engine rpm.
• Turn clockwise to increase
engine rpm. This typically
decreases ground speed
temporarily.
• Turn counterclockwise to
decrease engine rpm. This
typically increases ground
speed temporarily.
Trench Depth Meter
Trench Depth Meter (TDM) is an
optional electronic system for
measuring and recording trench
depth. TDM also displays
productivity and distance while
trenching. Two lines of information
are displayed on the LED screen. If
the system detects error
conditions, diagnostic codes will be
displayed on the second line.
IMPORTANT: For more information about TDM see the TDM
Operator Manual (p/n 054-117).
