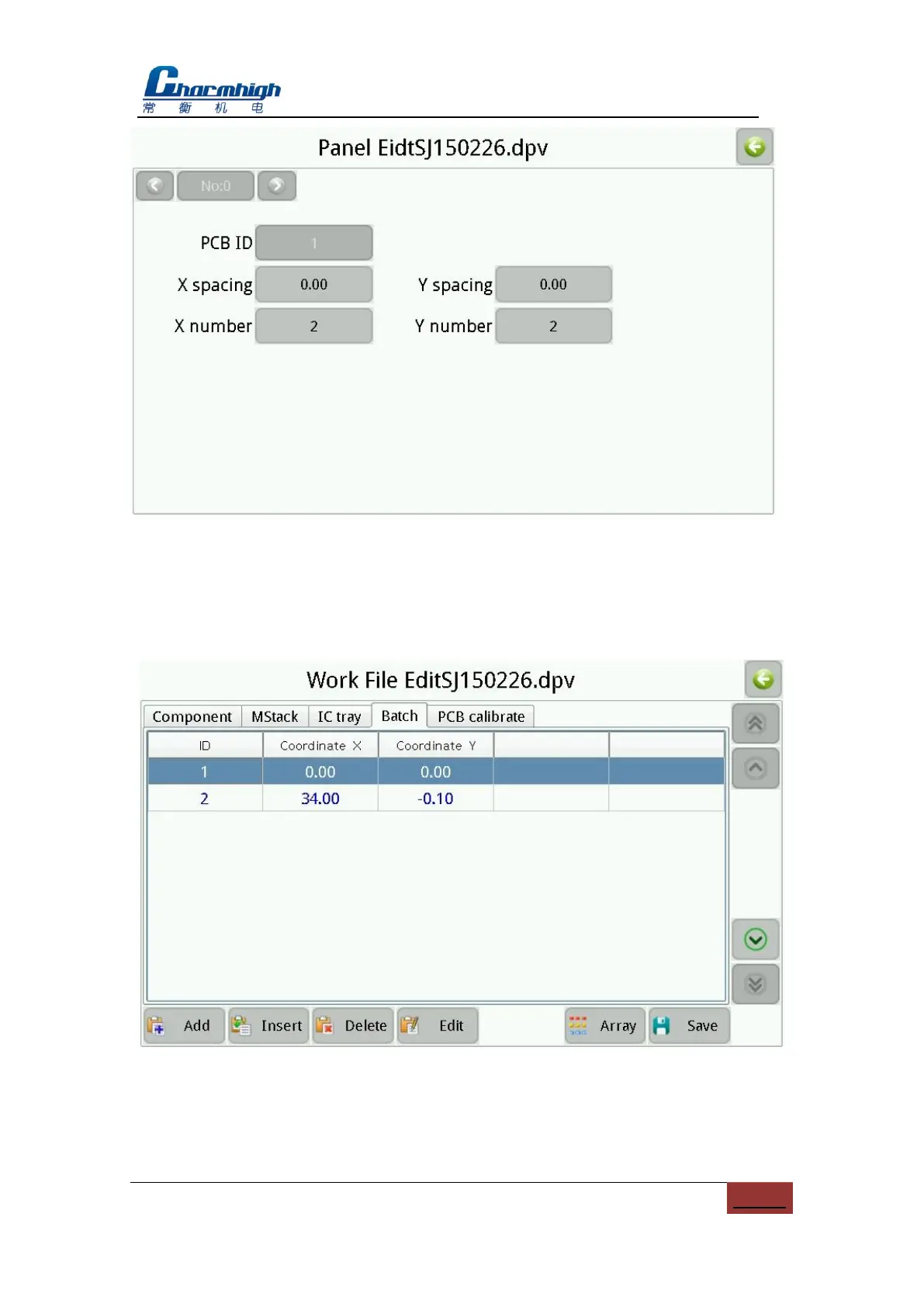

Figure.9-11
(1) PCB ID: Can‟t modify while use array mode;
(2) X\Y spacing: Two neighboring PCBs‟ X\Y coordinate spacing of origin;
(3) X\Y number: Number of PCB in X\Y direction.
Coordinate mode screen as show below.
Figure.9-12
Note, while there have only one record in batch list that indicates batch is disabled,
and the data is invalid. Each record preserve a origin point of PCB while there have
several records, click “Edit” to modify the coordinate or set it via location directly.
