the underlying device (whether the mirror);
(4) Convert: Convert CSV file to work file;

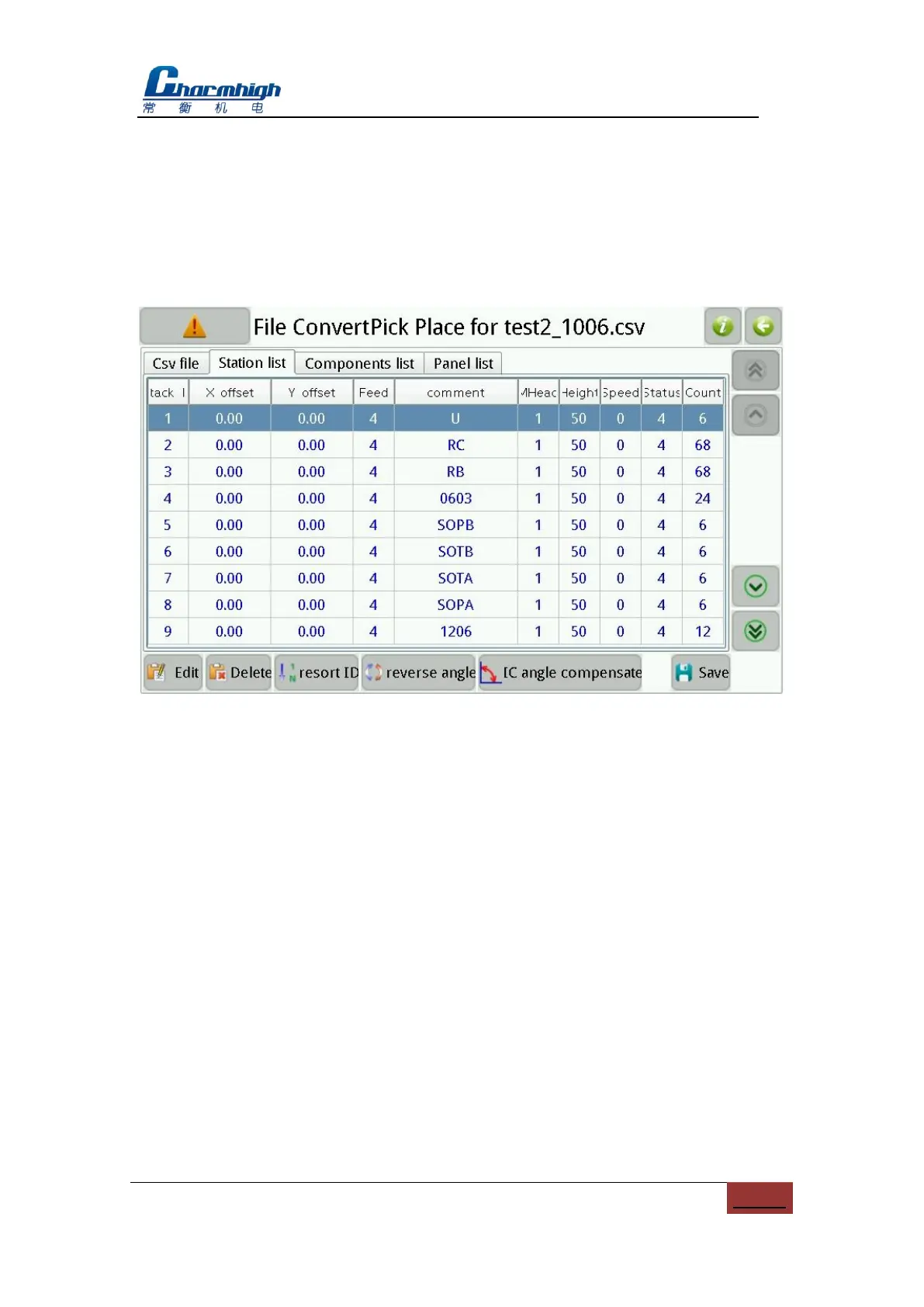

12.2.1. Material Stack
Window as show below.
Figure.12-14
(1) Station list: Show all of material stack in work file;
(2) Edit: Edit selected material stack, note, all of relevant components will be
changed;
(3) Delete: Delete selected material stack, note, all of relevant components will be
deleted;
(4) Resort ID: The material stack ID starting from 1 in ascending order;
(5) Reverse angle: Invert selected material stack, i.e. rotate 180 degree, note, all of
relevant components will be changed.
(6) IC Angle compesate: Compensate IC, rotate 90 degree. Some component need
angle compensate, e.g. SOPB, QFN, etc.
(7) Save: Save converted work file.
12.2.2. Component
Window as show below.
