corner of PCB, for bottom layer setting origin in bottom right corner of PCB and
check mirror image option when converting;

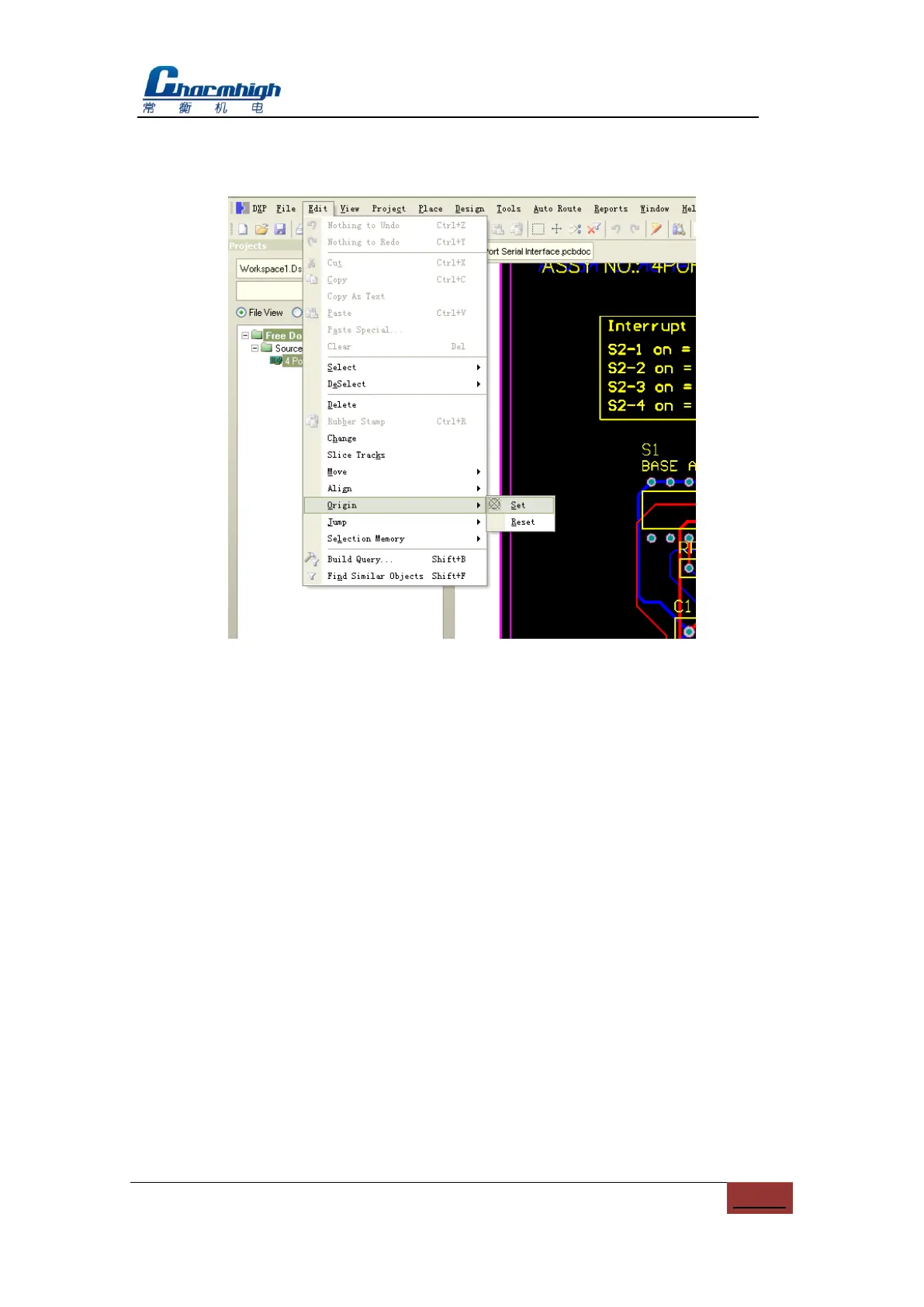

Figure.12-2
(3) Figure as below, select “File”-“Assembly Output”-Generates pick and place for
files” in menu bar;
