EXPLODED VIEWS AND SERVICE PARTS LISTS
EN
| Intelect
®
Mobile 2 - Service Manual 76

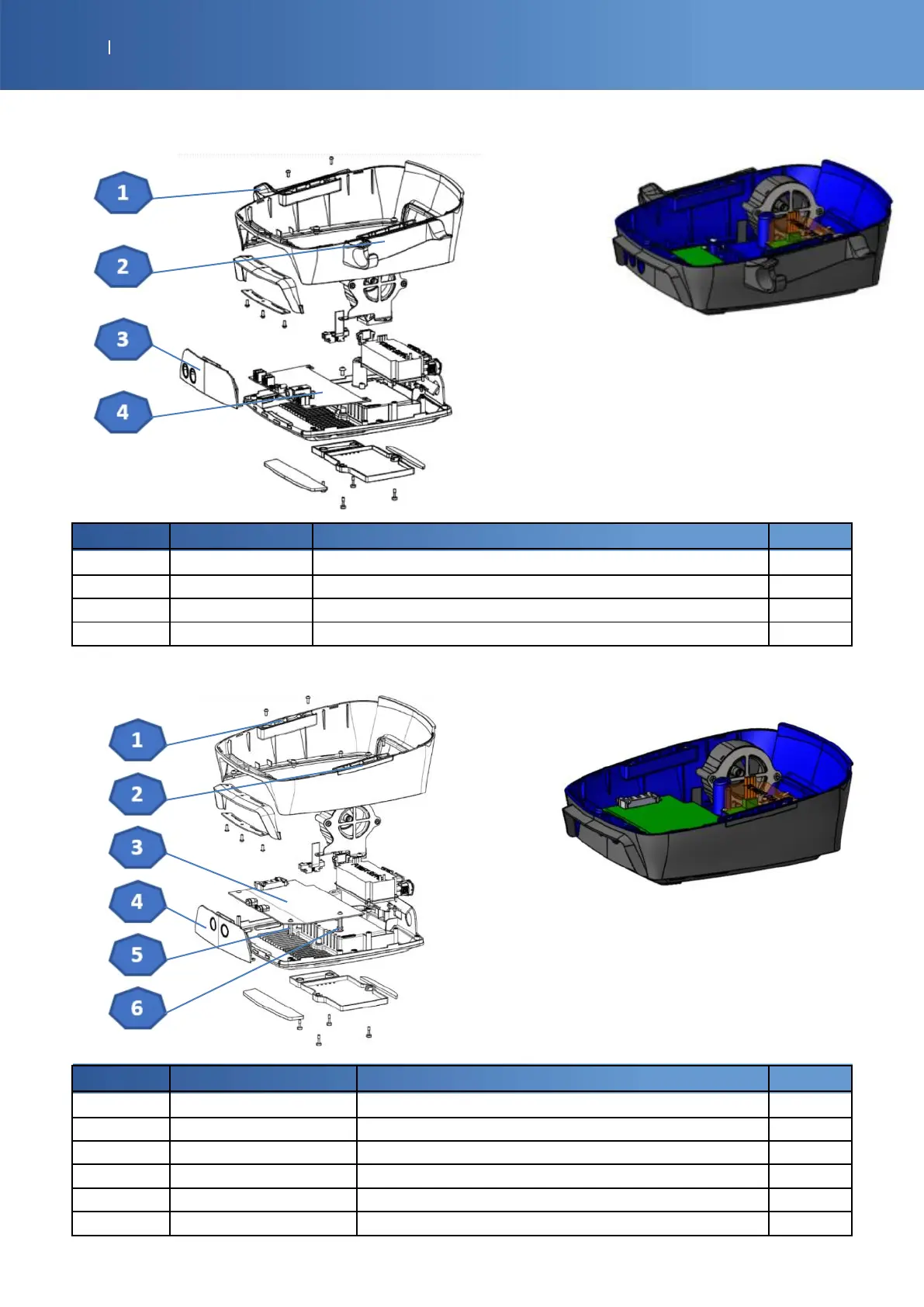

9.3.1. ULTRASOUND LOWER SUB ASSEMBLY
ITEM N°
Service part n°
Description
Qty
1
G16-4181-SP
SERVICE PART MOB2 APPLICATOR HOLDER LEFT W
1
2
G16-4171-SP
SERVICE PART MOB2 APPLICATOR HOLDER RIGHT W
1
3
G16-4051-SP
SERVICE PART MOB2 FRONT PANEL ULTRASOUND BK
1
4
G16-0030-SP
SERVICE PART MOB2 ULTRASOUND PCBA
1
9.3.2. STIM LOWER SUB ASSEMBLY
ITEM N°
Service part number
Description
Qty
1
G16-4341-SP
SERVICE PART MOB2 IN-FILL LEFT W
1
2
G16-4331-SP
SERVICE PART MOB2 IN-FILL RIGHT W
1
3
G16-0020-SP
SERVICE PART MOB2 STIM PCBA
1
4
G16-4052-SP
SERVICE PART MOB2 FRONT PANEL STIM BLACK
1
5
G16-2011-SP
SERVICE PART MOB2 PCB METAL SPACER 18 MM M3 X 5
4
6
G16-2061-SP
SERVICE PART MOB2 PCBA WASHER 1.6 MM x4
4
