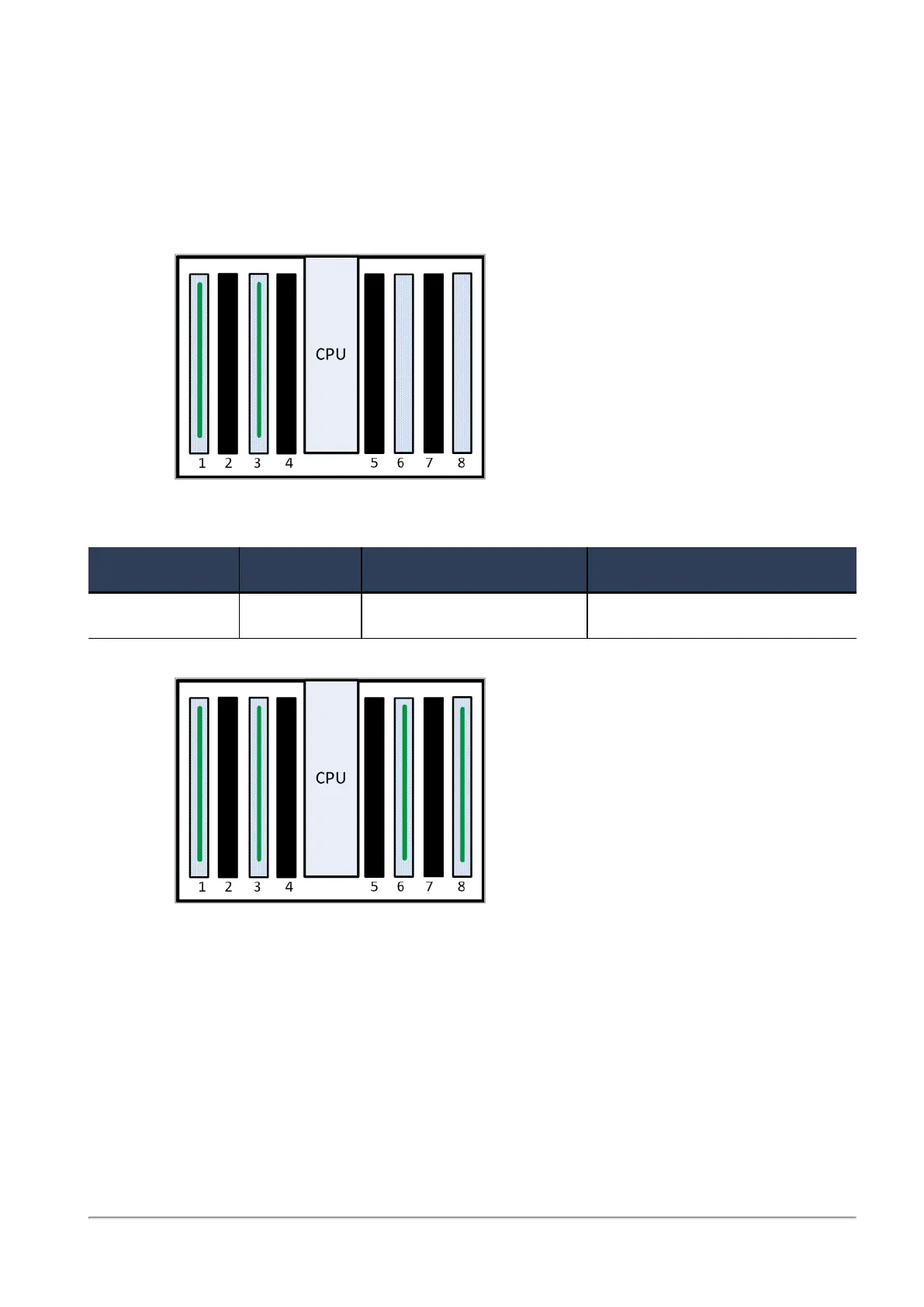

6800 Appliances DIMM Configuration
The 6800 appliances have a default memory configuration of 16 GB with two 8 GB DIMMs in
memory slots numbers 1 and 3. You can upgrade to 32 GB or 64 GB. Use the applicable upgrade
procedure below.
16 GB Default Configuration
Top View
(front panel of the appliance is at the bottom of the diagram)
To upgrade to Use DIMMs Procedure Slots
32 GB 4 x 8 GB Install four 8 GB DIMMs In memory slots 1, 3, 6, and 8
32 GB Upgraded Configuration
Top View
(front panel of the appliance is at the bottom of the diagram)
