6000/7000 Appliances Hardware
6000 and 7000 Appliances Getting Started Guide|38

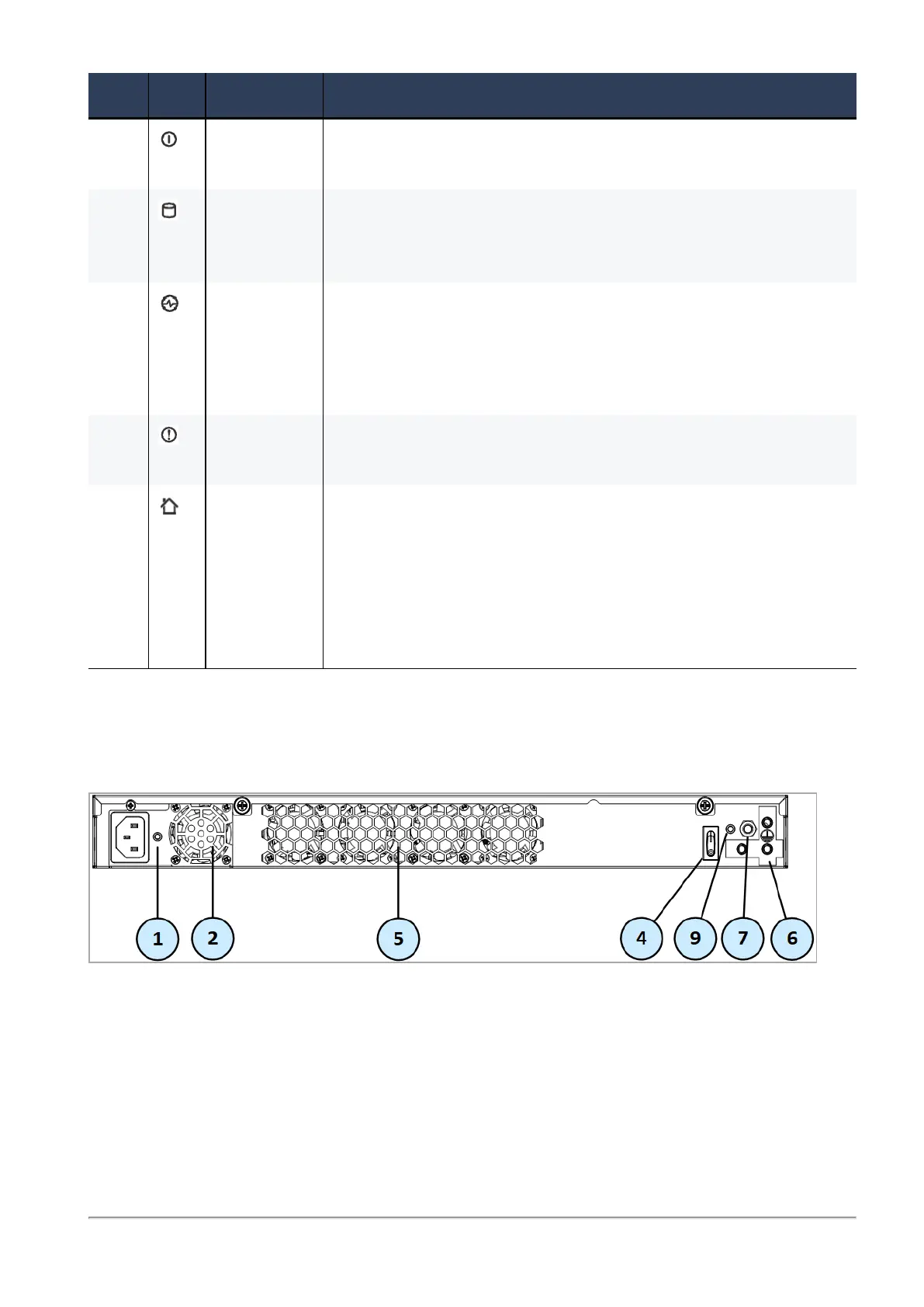

Item Icon Component Description
1 System
power
n Off - System power off
n On (Green) - System power on
2 Storage
device
activity
n Off - No storage device activity
n On (Amber) - Read/write activity
3 Power
supply
status
n Off - No power/no status
n Amber - Power supply fault detected
n Green - All power supplies are functioning correctly
Note - 6200 Base appliances - do not have this system LED.
4 Alert n Off - No faults detected
n Blinking red - System fault detected
5 Location
beacon
n Off - Location beacon is turned off
n
Solid blue - Location beacon is turned on through the Gaia
Portal or Gaia Clish or through the Locator button on the
front panel
Note - You can turn off the Location beacon LED from the
Locator button, Gaia Portal, or Gaia Clish.
Rear Panel
6200 Base
