TOLERANCE NOTES
FABRICATED TOLERANCES
≥ 2 ft (610 mm) ± 0.250 in (6.4 mm)
< 2ft (610 mm) ± 0.125 in (3.2 mm)
MACHINED TOLERANCES
± 0.050 DECIMAL DIM (1 PLACE)
± 0.010 DECIMAL DIM (2 PLACES)
± 0.005 DECIMAL DIM (3 PLACES)

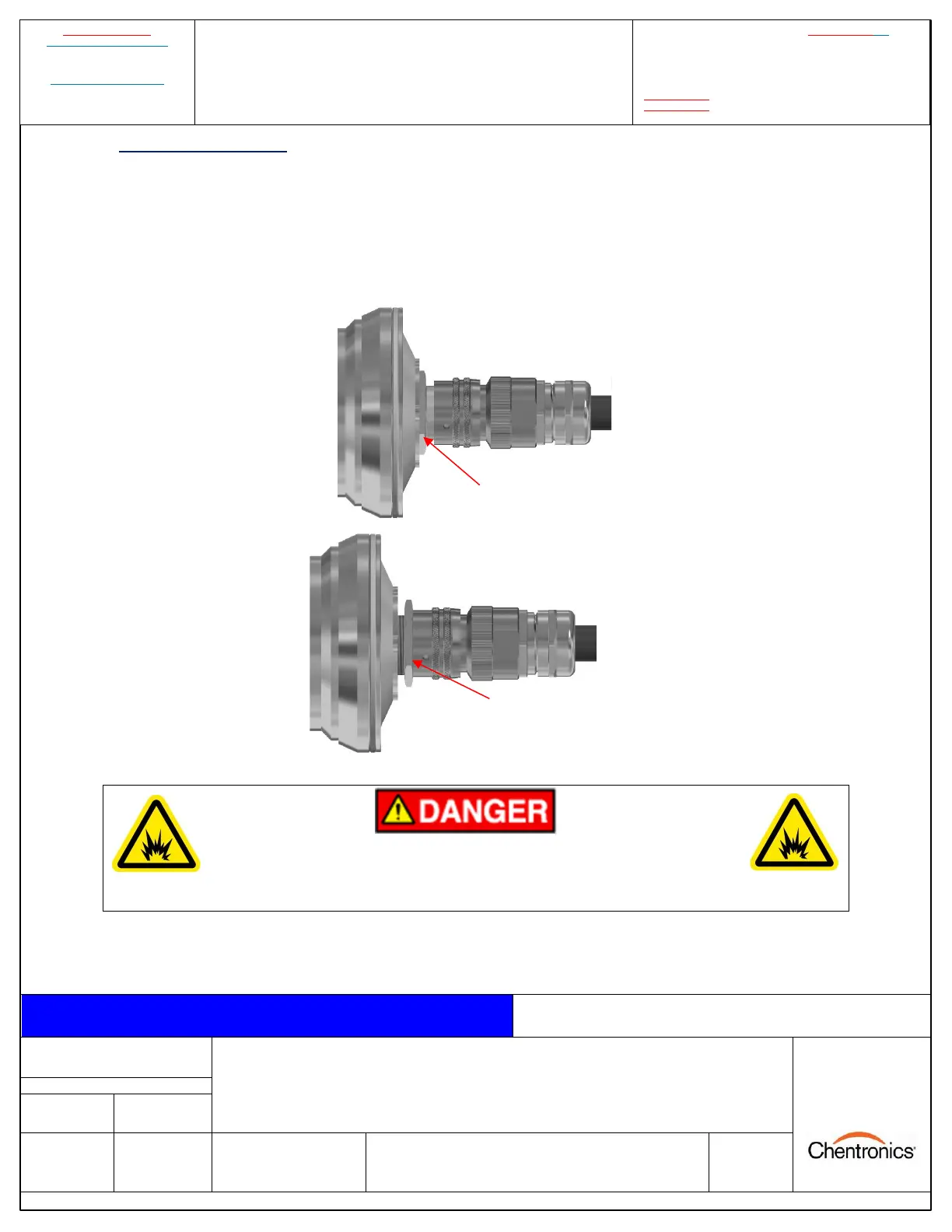

4.4 Locking Nut Installation
The equipment features a locking nut that locks the cable to the equipment so that it may not be removed
without a tool. This feature is required for some hazardous area installations. To lock the connector in
place, turn the locking nut counter-clockwise and tighten to a torque of 10ftlbs using a wrench. See Figure
7 and Figure 8 for illustrations of locking nut tightening. To remove the cable, turn the locking nut
clockwise until it is seated against the electronics, then remove the cable connector by rotating the outer
barrel counter-clockwise until the banjo fittings unseat and the connector can be removed.
Figure 7: Seat the connector and turn the Locknut against the connector barrel.
Figure 8: Tighten Locking nut against connector barrel
EXPLOSION HAZARD
Do not connect or disconnect when energized
