3.0 Technical Specifications
3.1 Definitions
FLICKER – Flicker or Flicker Frequency refers to the modulation of flame intensity due to micro-explosions.
FDORT – Flame Detector ON Response Time – the period of time from flame intensity rising above the
user-adjustable threshold to flame relay contacts closed.
FDRT – Flame Detector Response Time –the period of time between the loss of a sensed flame and the
signal indicating the absence of flame.
MFFRT – Marginal Flame Fail Response Time – period of time from flame intensity falling below the user
adjustable threshold to the flame relay contacts open.
ROL – Ring of Light – multi-colored LED status indication on the back of the scanner.
iScan Software – Flame scanner communications software is used to monitor and configure the iScan®3
Flame Scanner.
GAIN – When a signal is amplified, GAIN is the ratio of the amplified signal relative to the original.
DISCRIMINATION – The ability to distinguish between multiple flames. An example of good discrimination
is when the MB scanner is able to recognize a pilot flame with another burner’s main fuel flame in the
background. The status of the background Flames does not affect the ability to detect the pilot flame (ON
or OFF).
3.2 Specification Table
Part Number(s)
PN 04005000-SB, 04005000-MB

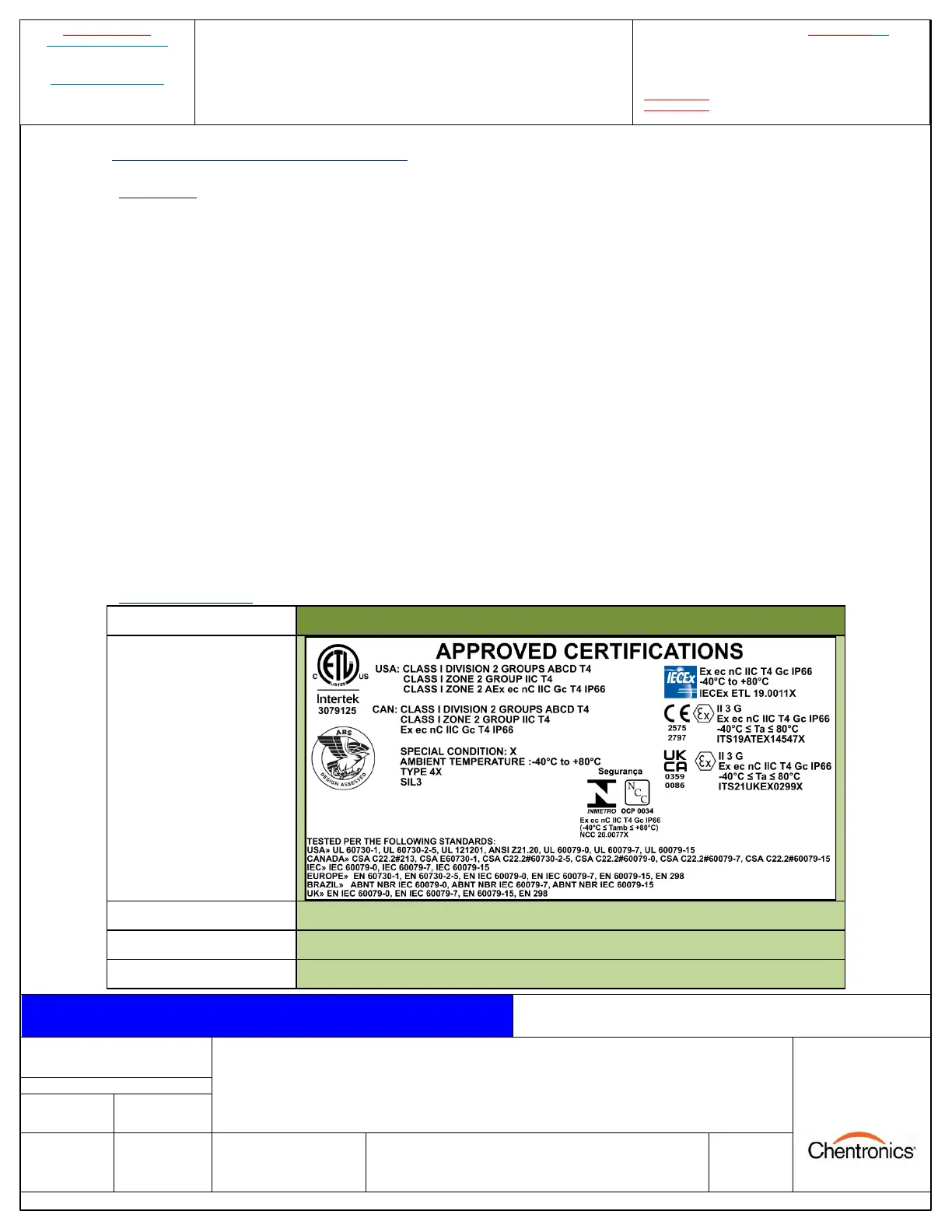

Area Classification
Input Cable
Quick Disconnect - Separate Cable
Weight
2.25 lb. (1.02 kg)
Mounting
1” NPT
