TOLERANCE NOTES
FABRICATED TOLERANCES
≥ 2 ft (610 mm) ± 0.250 in (6.4 mm)
< 2ft (610 mm) ± 0.125 in (3.2 mm)
MACHINED TOLERANCES
± 0.050 DECIMAL DIM (1 PLACE)
± 0.010 DECIMAL DIM (2 PLACES)
± 0.005 DECIMAL DIM (3 PLACES)

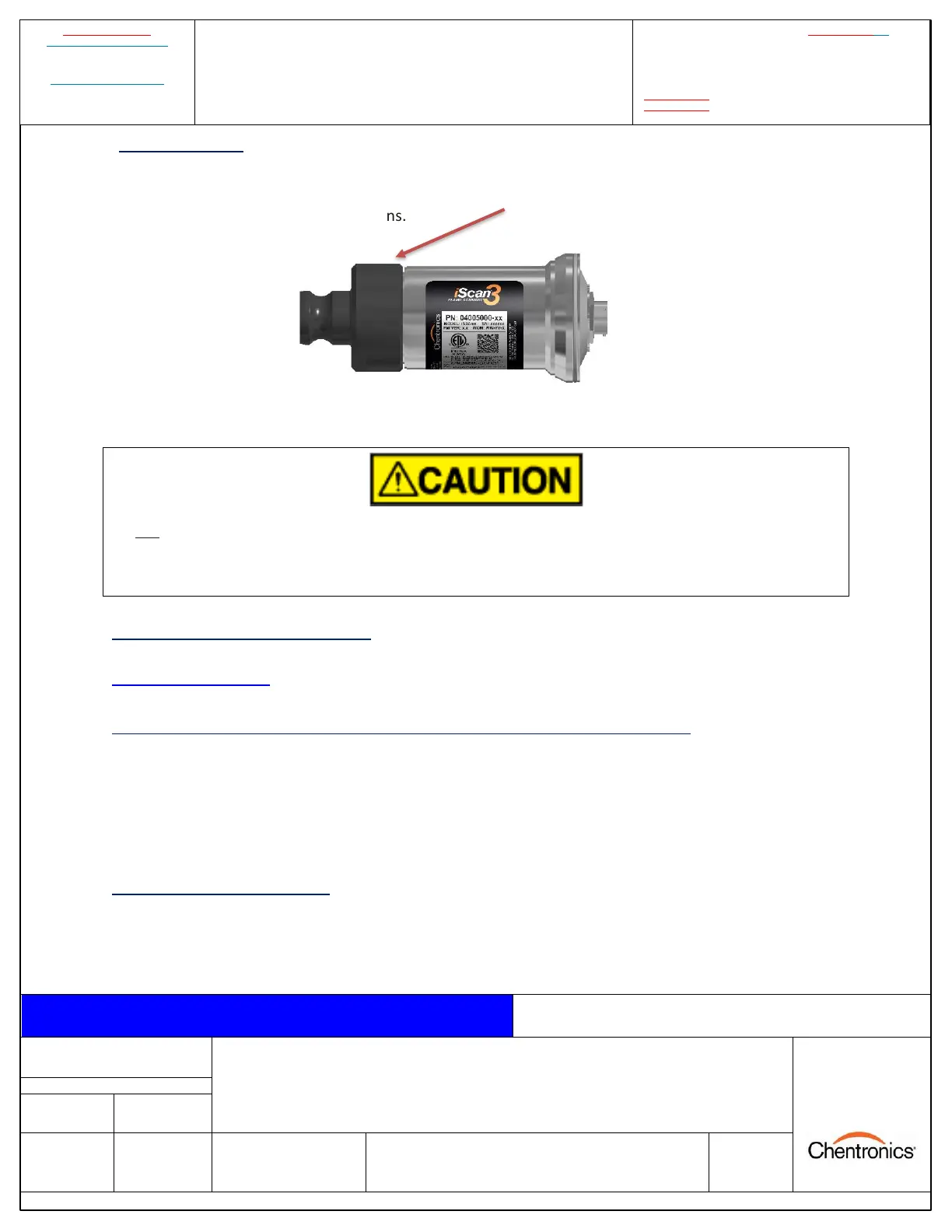

5.2 Cleaning the Lens
The only maintenance that may be required is periodic cleaning of the quartz glass lens.
Step 1: For cleaning in a hazardous area, remove the camlock by unscrewing (counter-clockwise) from
the stainless-steel body to access the lens.
Step 2: Clean the lens with a clean, damp, lint-free cloth
Step 3: Replace the black camlock and reinstall the scanner.
Do not remove the lens from the scanner housing. Doing so may damage the scanner and will void the
warranty.
N'ouvrez JAMAIS le boîtier du scanner. Cela pourrait endommager le scanner et annuler la garantie
6.0 Warranty Instructions
For warranty-related inquiries, please get in touch with Chentronics® at TEL: +1.607.334.5531 or
info@chentronics.com
7.0 Maintenance and Special, “X,” Conditions of Use
• The equipment must only be used in an area with a low impact risk.
• The equipment must be used in an area free from falling debris.
• The equipment must be placed in an area with no mechanical hazard.
• The equipment must not be subjected to human abuse.
• The equipment must only be wiped/cleaned with a damp cloth.
8.0 Technical Support
For technical support beyond the scope of this Installation and Operation Manual, please get in touch with
Chentronics® at TEL: +1.607.334.5531 or info@chentronics.com
