MNL-ISCAN3, REVB INSTALLATION & OPERATION MANUAL Page 22 of 25

DCO #12743 For Technical Support Call: +1.866.821.5504 Schedule Document

Sighting the Scanner

EXPLOSION HAZARD

Failure to sight the scanner properly can cause an explosion. This Equipment must be installed and serviced by

qualified personnel in accordance with applicable local and national codes, standards, and ordinances.

TENSION DANGEREUSE

N'ouvrez pas le capot de l'équipement et ne le réparez pas si une atmosphère explosive peut être

présente. L'équipement doit être installé et entretenu par du personnel qualifié conformément aux codes,

normes et ordonnances locales et nationales applicables

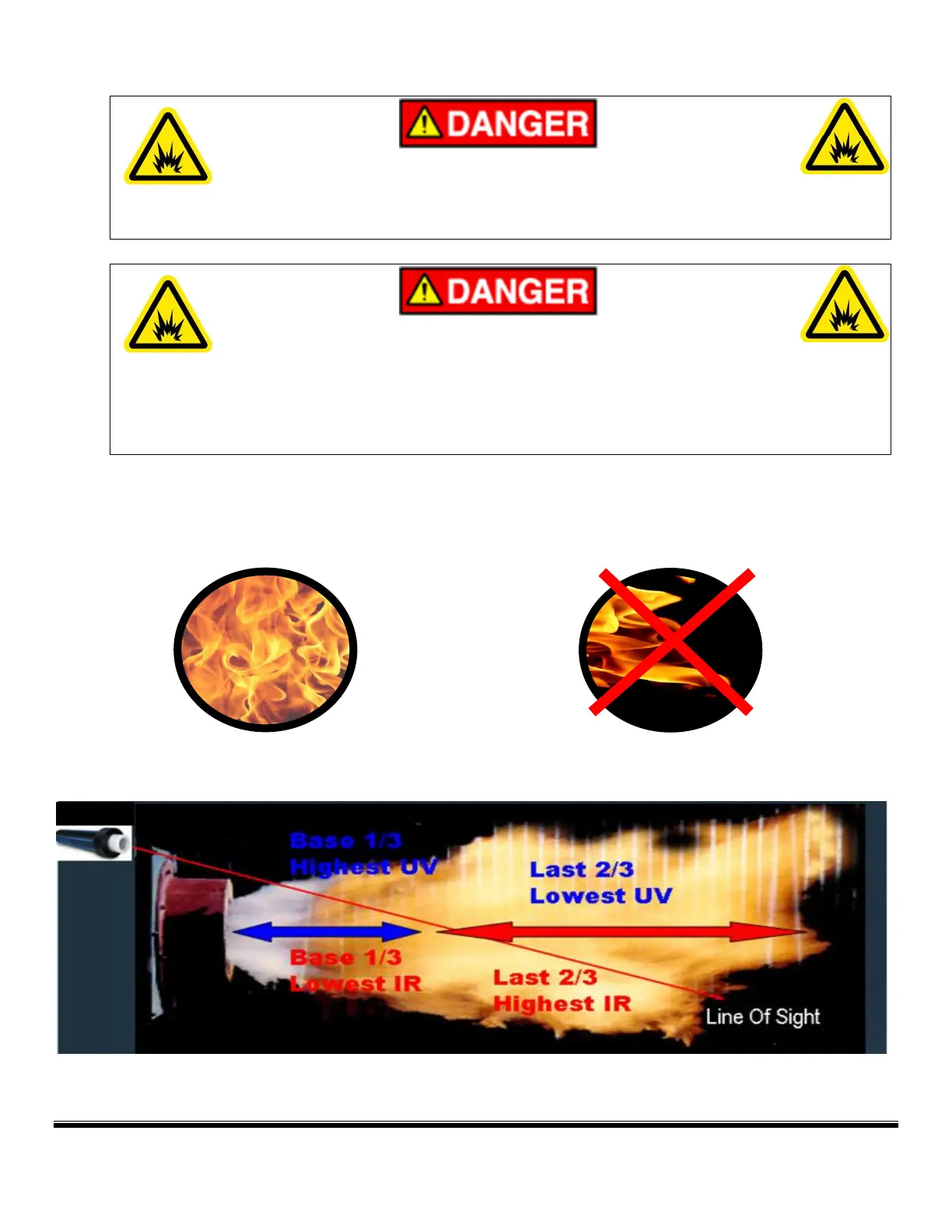

Proper sighting of the flame is required for proper flame scanner detection and discrimination. The view through the

sighting port should be full flame, as illustrated below.

CORRECT INCORRECT

Flame Line of Sight
