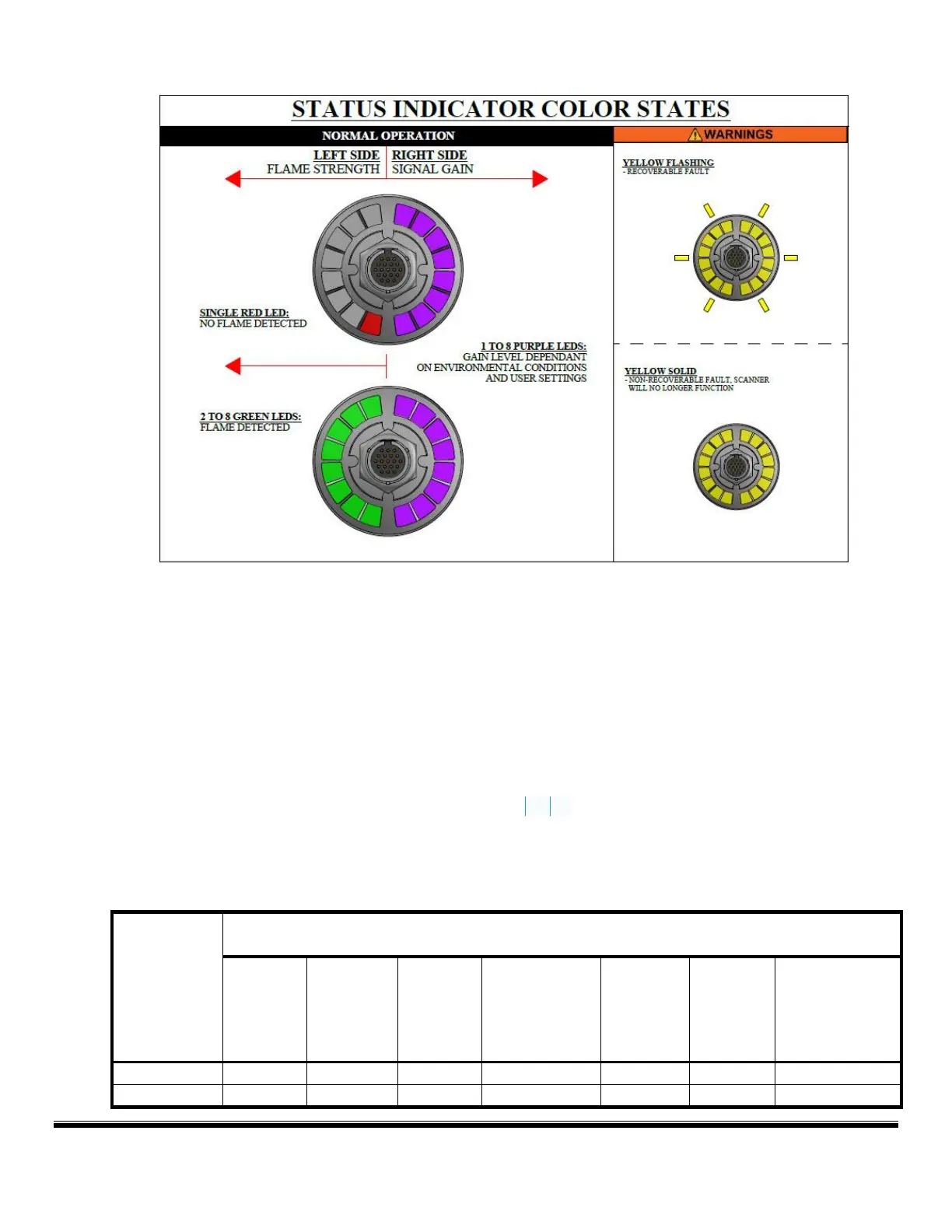

LED STATUS INDICATORS; “Ring of Light”:
The iScan3 is equipped with a highly visible LED status indicator ring. This “Ring of Light” communicates the scanner’s
operating modes including FLAME SIGNAL STRENGTH, GAIN LEVEL (the amount of signal amplification), and
WARNINGS/FAULTS. This ring aids with “sighting” the flame; or in other words: proper aiming of the scanner. This
must be done with care to ensure that a good flame signal is present over a range of operating conditions. With the
“Ring of Light”, the operator can quickly recognize marginal conditions (such as low flame strength and/or high gain).
REMOTE FILE SELECT
The Remote File Select feature provides a means for selecting one
of the configuration files resident within the
scanner. Single-Burner, “SB”, models have limited programmability while Multi-Burner, “MB”, models have a high
degree of programmability, as outlined in the table below.
